Procedure for speaker settings
Speaker installation
Speaker connection (vpage79)
Set up speakers (vpage86)

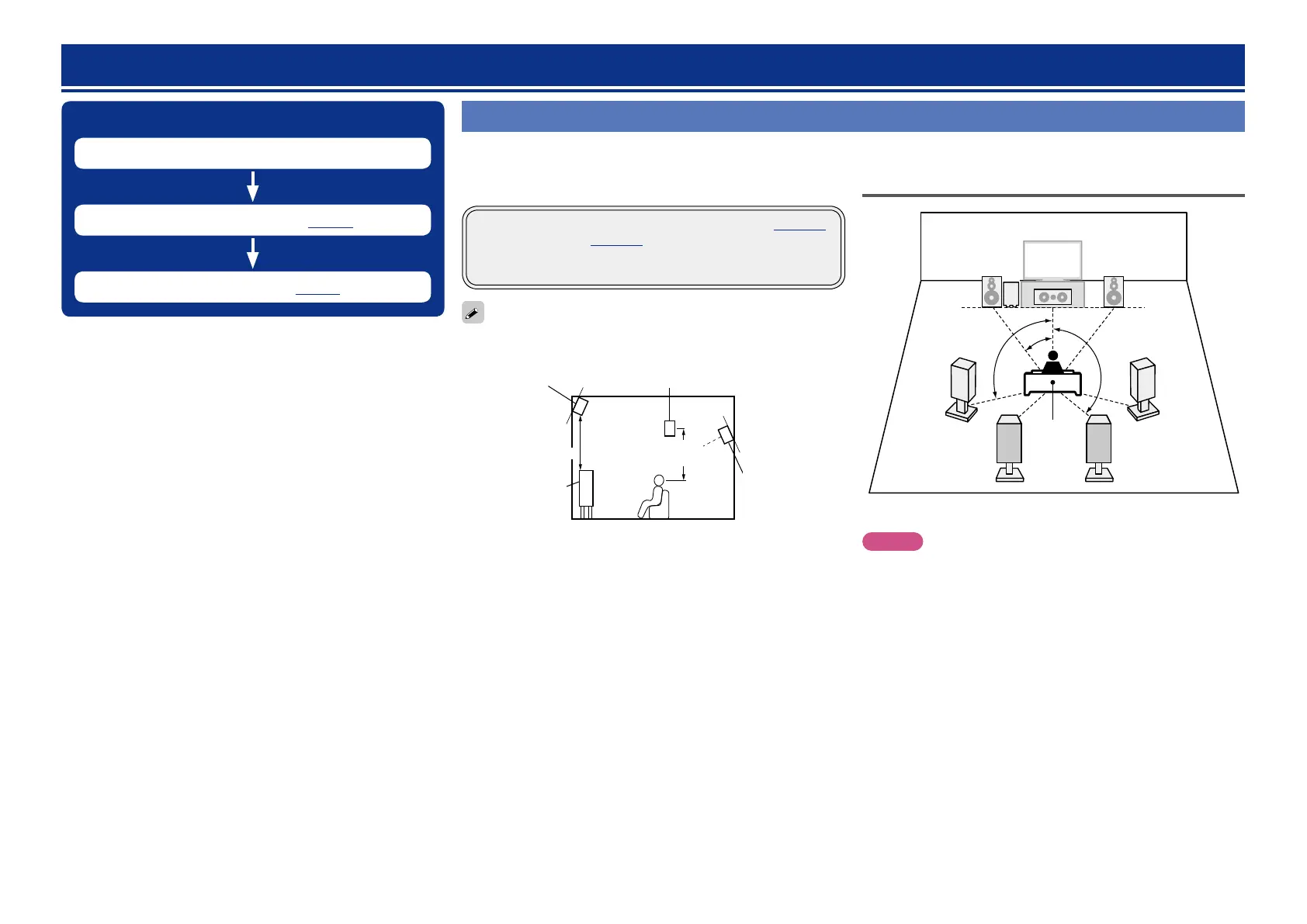

Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω/ohms.
This unit is compatible with Dolby Pro Logic gz (vpage142)
and DTS Neo:6 (vpage143) which oers an even wider and
deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
•Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
•Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
When 7.1-channel speakers are installed
using surround back speakers
FL FR
C
SBL SBR
SL
SR
SW
z1
z2
z3
Listening
position
z1 22˚ – 30˚ z2 90˚ – 110˚ z3 135˚ – 150˚
NOTE
You cannot have audio output from the surround back speakers and
front height speakers simultaneously.
GSpeaker abbreviationsH
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
C Center speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
Installation/connection/setup of speakers (Advanced)
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD

Denon AVR-E400 Specifications

General

HDMI Inputs	6
HDMI Outputs	1
3D Pass-through	Yes
4K Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Audyssey MultEQ	Yes
Network Connectivity	Yes
AirPlay	Yes
DLNA	Yes
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Signal-To-Noise Ratio	100 dB
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Tuner Presets	56
Tuner Bands	AM/FM
Frequency Response	10 Hz - 100 kHz
Video Upscaling	Yes
Bluetooth	No
Wi-Fi	No
Surround Sound Effects	DTS Neo:6
Audio D/A Converter	192kHz/24-bit
Inputs	HDMI, Digital Optical, Digital Coaxial, Analog
Outputs	HDMI, Headphones
