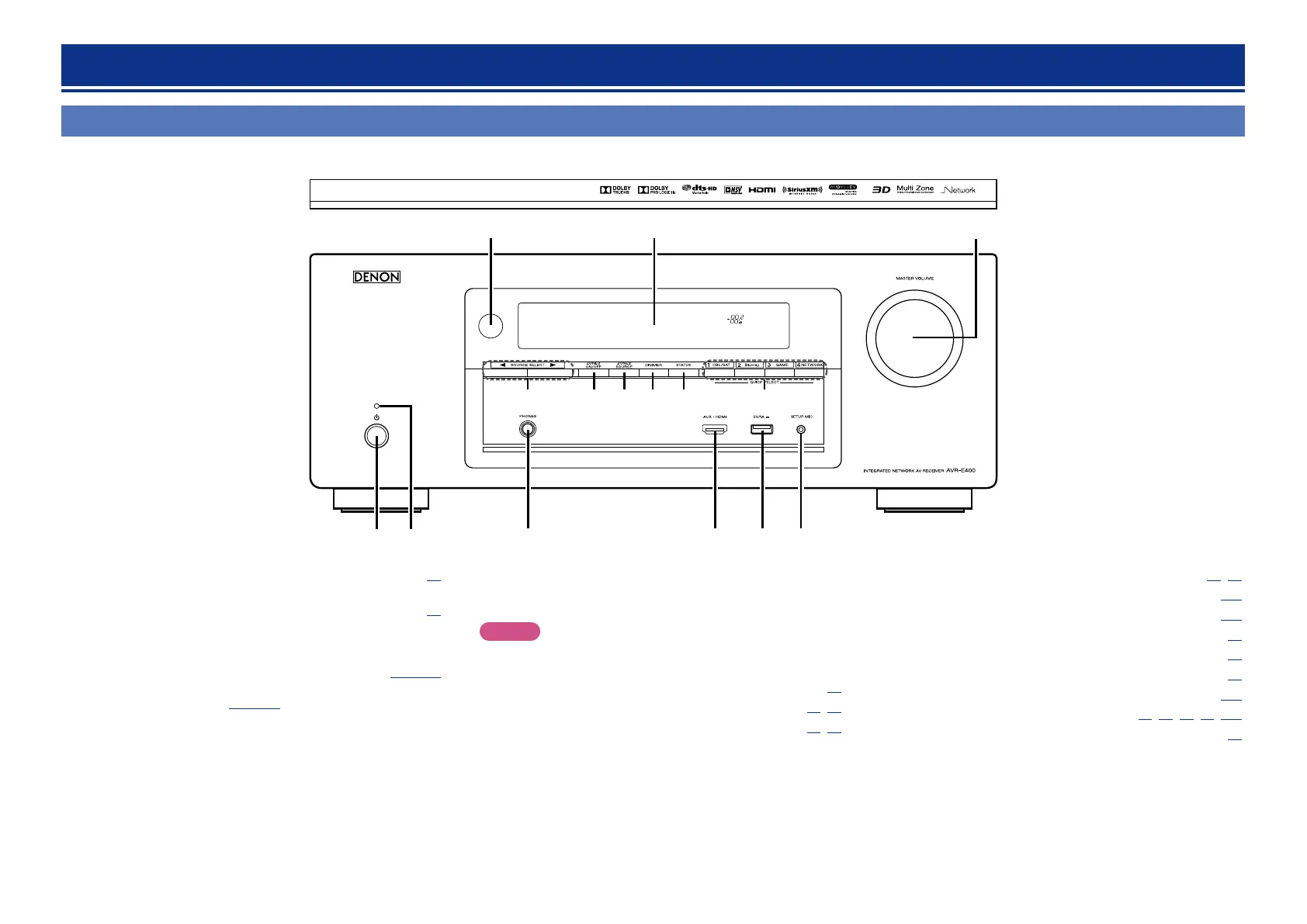

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q0
Q5
Q1 Q2 Q3 Q4
r t yeq w
io u
q Power operation button (X) ··················································· (28)
Turns power to this unit on and o (standby).
w Power indicator ······································································· (28)
GPower indicator statusH
•Power on : Green
•Normal standby : O
•When “HDMI Pass Through” or “HDMI Control” (vpage108)
is set to “On” : Red
•When “IP Control” (vpage120) is set to “Always On” : Red
u MASTER VOLUME knob ··················································· (29, 93)
i Display ···················································································· (131)
o Remote control sensor ························································· (134)
Q0 SOURCE SELECT buttons ······················································· (28)
Q1 ZONE2 ON/OFF button ··························································· (93)
Q2 ZONE2 SOURCE button ·························································· (93)
Q3 DIMMER button ····································································· (125)
Q4 STATUS button ············································· (31, 46, 50, 62, 126)
Q5 QUICK SELECT buttons ·························································· (90)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r AUX-HDMI connector ····························································· (10)
t USB port ············································································· (16, 34)
y SETUP MIC jack ································································· (22, 86)
Part names and functions
