Denon AVR-X2100W Service Manual

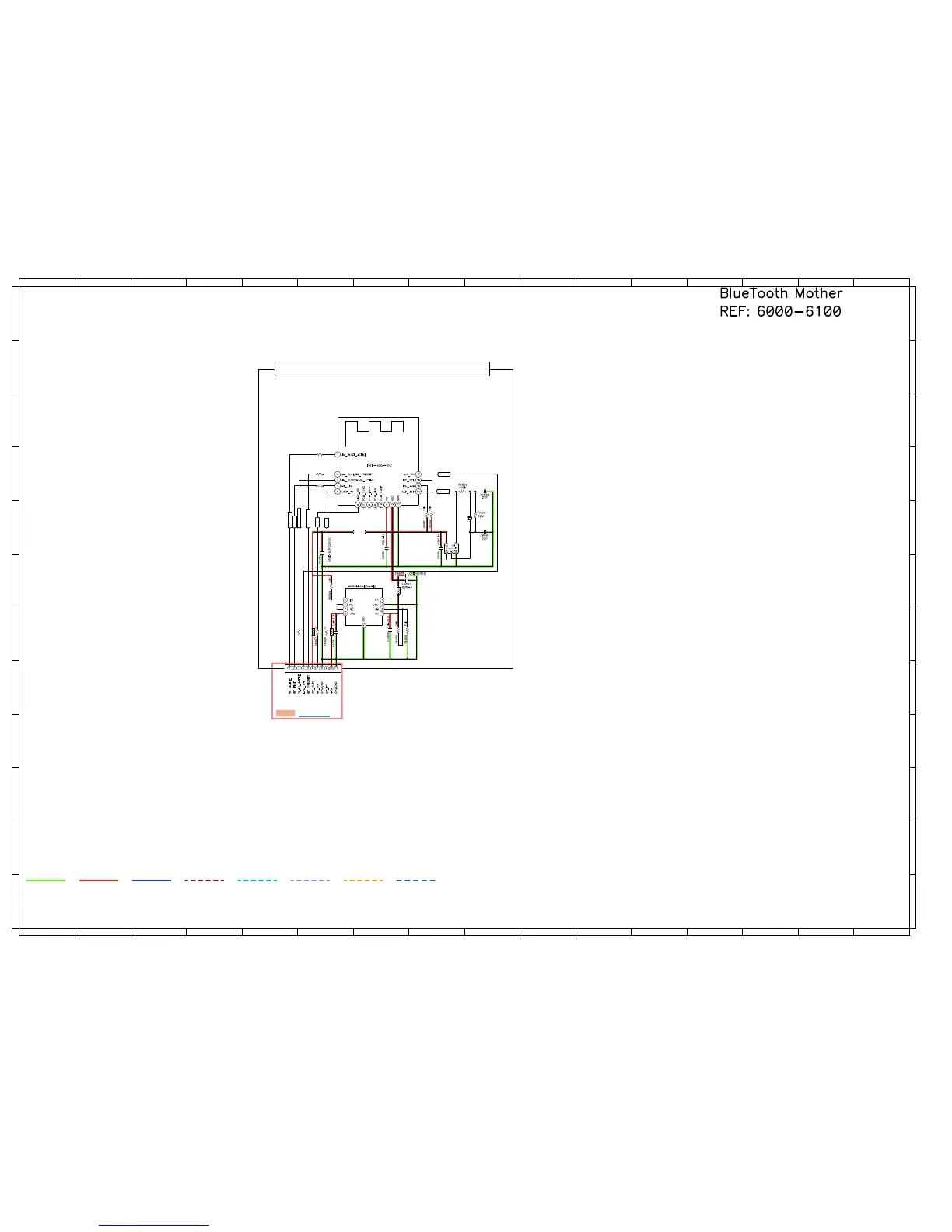

SCHEMATIC DIAGRAMS (4/30)
04-BlueTooth
GND LINE POWER- LINE POWER+ LINE ANALOG AUDIO DIGITAL AUDIO TMDS SIGNAL VIDEO SIGNAL COMPONENT(Y)
BT_EINT
BT_ACTIVE
WLAN_ACTIVE
BT_PRIORITY
BT_RX
BT_TX
L6002 0
32.768KHZ(FA-135)X6000
R6010 0
R6009 0
BT_3.3V
R6012 0
R6011 0
L6001 CB05YTYH221 L6000 CB05YTYH221
CLK_32K
LDO_ON
AVR-X2100 BT Mother B'D
CP6001
U6001
U6000
IC6000
CP6001
TO N7005
116
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A
B
C
D
E
F
G
H
J
K
L
M
A
B
C
D
E
F
G
H
J
K
L
M
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
