Denon AVR-X2100W Service Manual

4. VIDEO PCB
Proceeding : TOP COVER → BACK CHASSIS → HDMI PCB → VIDEO PCB

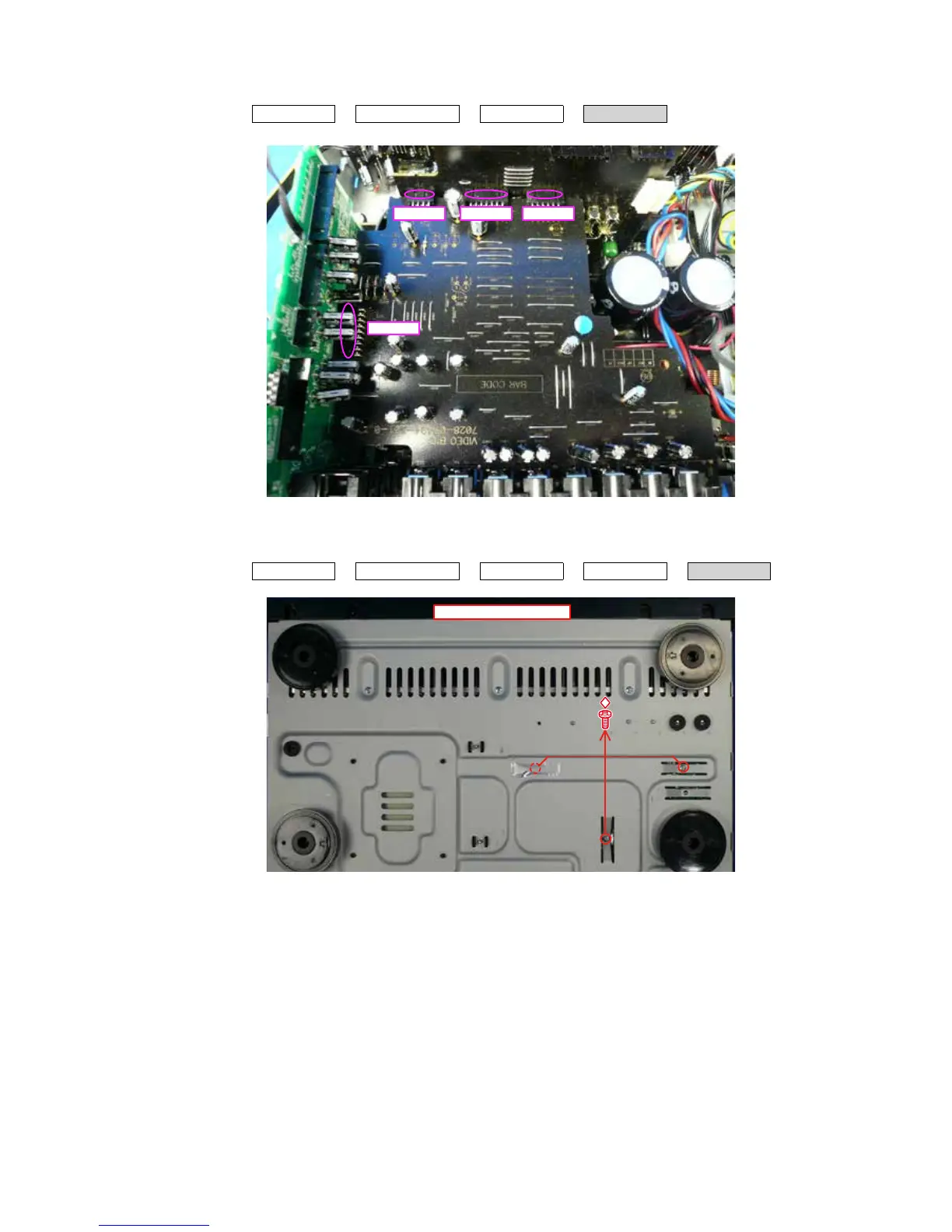

(1) Remove the connector wire.
5. MAIN PCB
Proceeding : TOP COVER → BACK CHASSIS → HDMI PCB → VIDEO PCB → MAIN PCB
(1) Remove the screws.
Front side
CN5000CN5001CN5004
CN5003
View from the bottom
17

Denon AVR-X2100W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	8
Composite video in	2
Component video (YPbPr/YCbCr) in	1
Speakers connectivity type	-
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9700 g
