Denon AVR-X2100W Service Manual

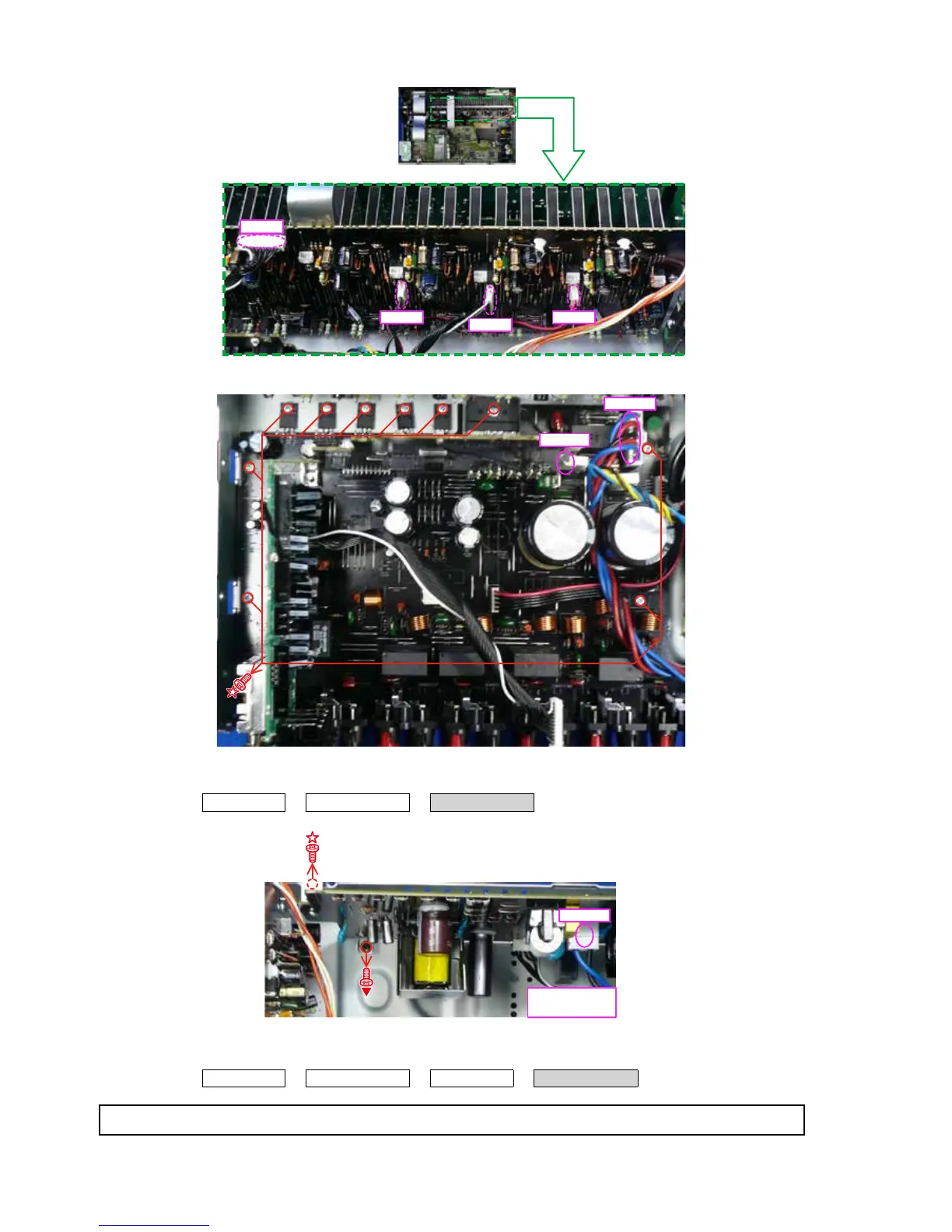

(2) Remove the connector wire.
(3) Remove the connector wire. Remove the screws.
6. SMPS PCB
Proceeding : TOP COVER → BACK CHASSIS → SMPS PCB
(1) Remove the connector wire. Remove the screws.
7. TRANS POWER
Proceeding : TOP COVER → BACK CHASSIS → HDMI PCB → TRANS POWER
CP402
CP401
CP405
CP403
CN4212
CP5003
CP4142
TO HDMI PCB
N1029
See "EXPLODED VIEW" for instructions on how to remove each PCB of the "TRANS POWER".
18

Denon AVR-X2100W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	8
Composite video in	2
Component video (YPbPr/YCbCr) in	1
Speakers connectivity type	-
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9700 g
