Denon AVR-X2100W Service Manual

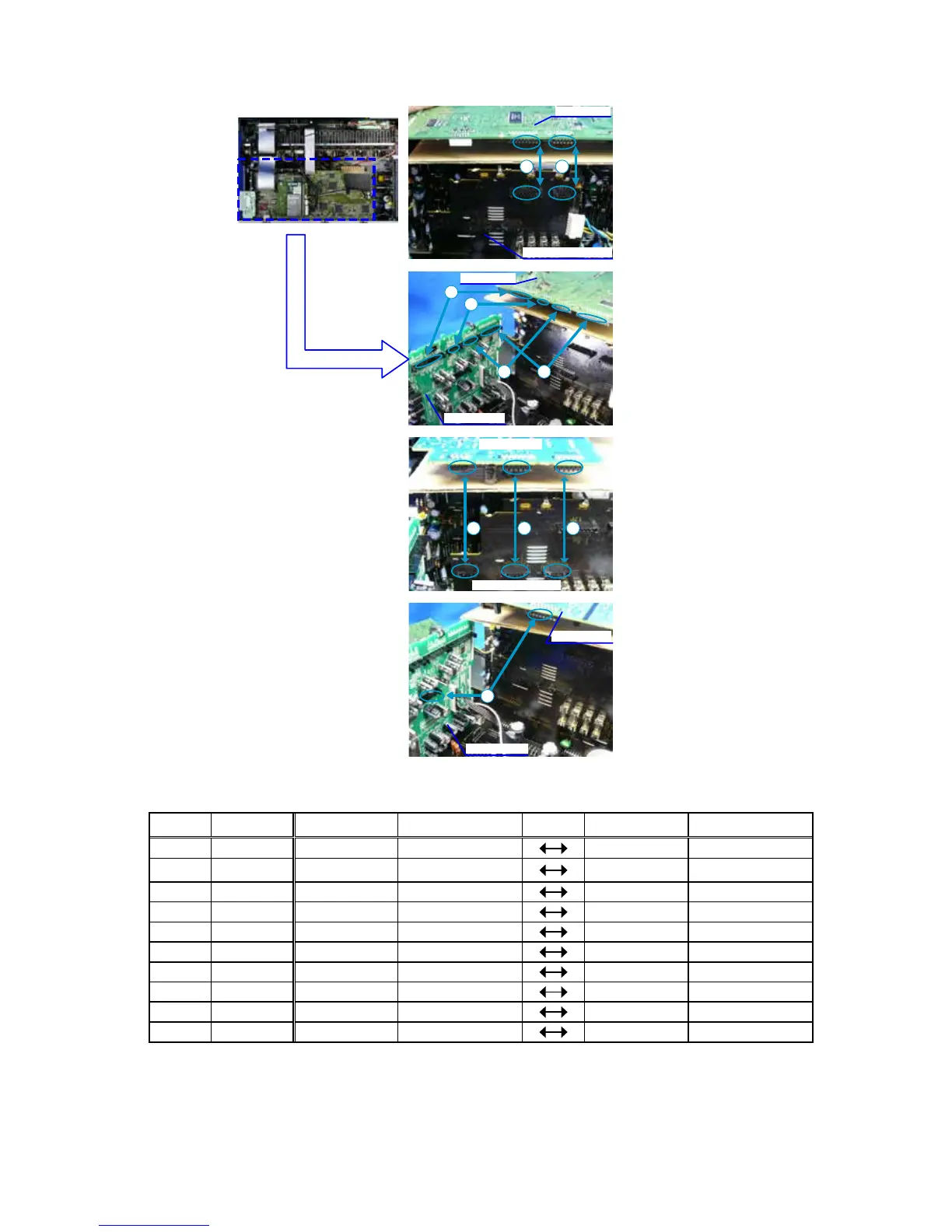

(4) Connect the expansion cables.
Connection table of Board to Board
No. Pin Ref.No. PCB Ref.No. PCB
q
17pin CP3404 FRONTCNT N1018 HDMI
w
11pin CP3401 FRONTCNT N1033 HDMI
e
23pin CP4200 INPUT N1016 HDMI
r
7pin CP4203 INPUT N1013 HDMI
t
15pin CP4205 INPUT N1015 HDMI
y
23pin CP4201 INPUT CN1014 HDMI
u
7pin CP5004 FRONTCNT CN5004 VIDEO
i
13pin CP5001 FRONTCNT CN5001 VIDEO
o
11pin CP5000 FRONTCNT CN5000 VIDEO
Q0
17pin CP4204 INPUT CN5003 VIDEO
PCB HDMI
PCB FRONT CNT
PCB INPUT
PCB HDMI
PCB VIDEO
PCB FRONT CNT
PCB VIDEO
PCB INPUT
1 2
3
5
6
7 8 9
10
4
59

Denon AVR-X2100W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	8
Composite video in	2
Component video (YPbPr/YCbCr) in	1
Speakers connectivity type	-
Ethernet LAN	Yes
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	167 mm
Weight	9700 g
