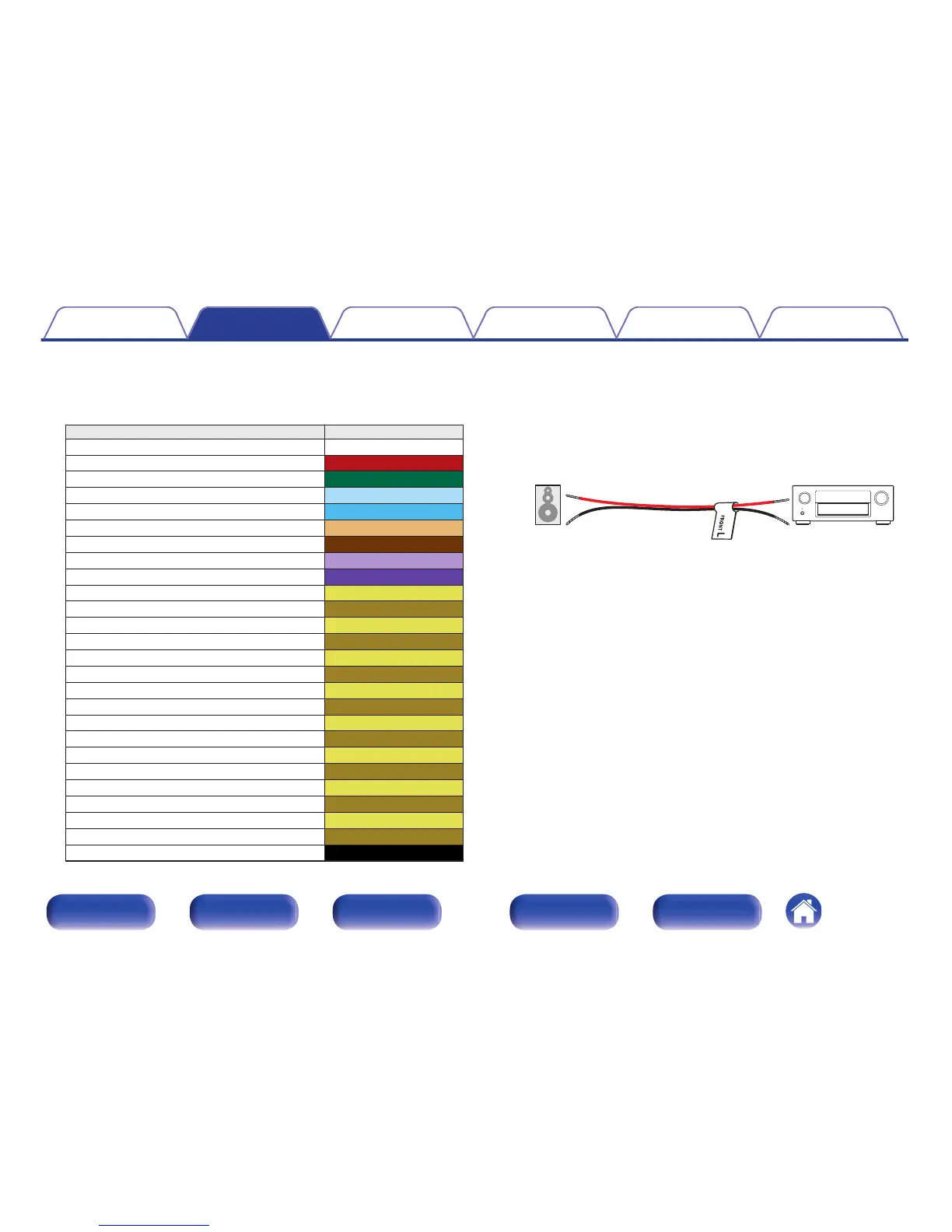

About the speaker cable label (supplied) for
channel identification
The channel display section for speaker terminals on the rear panel is
color-coded for each channel to be identifiable.
Speaker terminals Color
FRONT L White
FRONT R
Red
CENTER Green
SURROUND L
Light blue
SURROUND R Blue
SURROUND BACK L Beige
SURROUND BACK R
Brown
FRONT WIDE L Light Purple
FRONT WIDE R Purple
FRONT HEIGHT L
Light Yellow
FRONT HEIGHT R Yellow
TOP FRONT L
Light Yellow
TOP FRONT R Yellow
TOP MIDDLE L Light Yellow
TOP MIDDLE R
Yellow
TOP REAR L Light Yellow
TOP REAR R Yellow
REAR HEIGHT L
Light Yellow
REAR HEIGHT R Yellow
FRONT DOLBY L Light Yellow
FRONT DOLBY R
Yellow
SURROUND DOLBY L Light Yellow
SURROUND DOLBY R Yellow
BACK DOLBY L
Light Yellow
BACK DOLBY R Yellow
SUBWOOFER
Black
Attach the speaker cable label for each channel to its speaker cable as
shown in the diagram.
Refer to the table and attach the label to each speaker cable.
Then, make connection so that the color of the speaker terminal
matches that of the speaker cable label.
G How to attach the speaker cable label H
.
