Connecting an external power amplifier

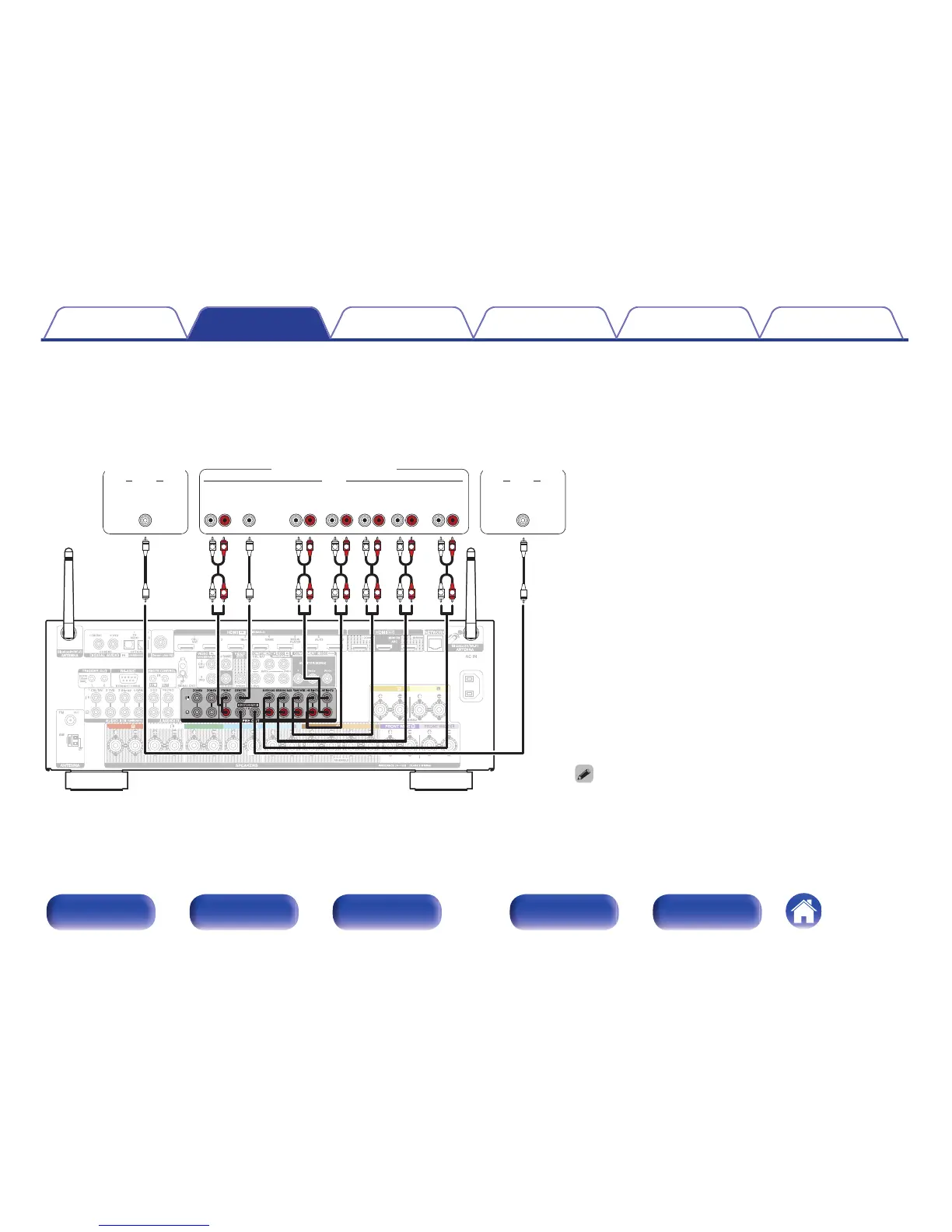

You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each
channel, the realness of the sound can be further enhanced.
Select the terminal to use and connect the device.
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT
HEIGHT1 HEIGHT1
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
L
L
R
R
CENTER
RL
FRONT
AUDIO
SUB-
WOOFER
2
AUDIO
SUB-
WOOFER
1
AUDIO
SURROUND
BACK
RL
RL
SURROUND
RL
RL
HEIGHT2 HEIGHT1
RL
FRONT
WIDE
Power amplifiers
Subwoofer
(Primary)
Subwoofer
(Secondary)
When using just one surround back speaker, connect it to the left
channel (L) terminal.
