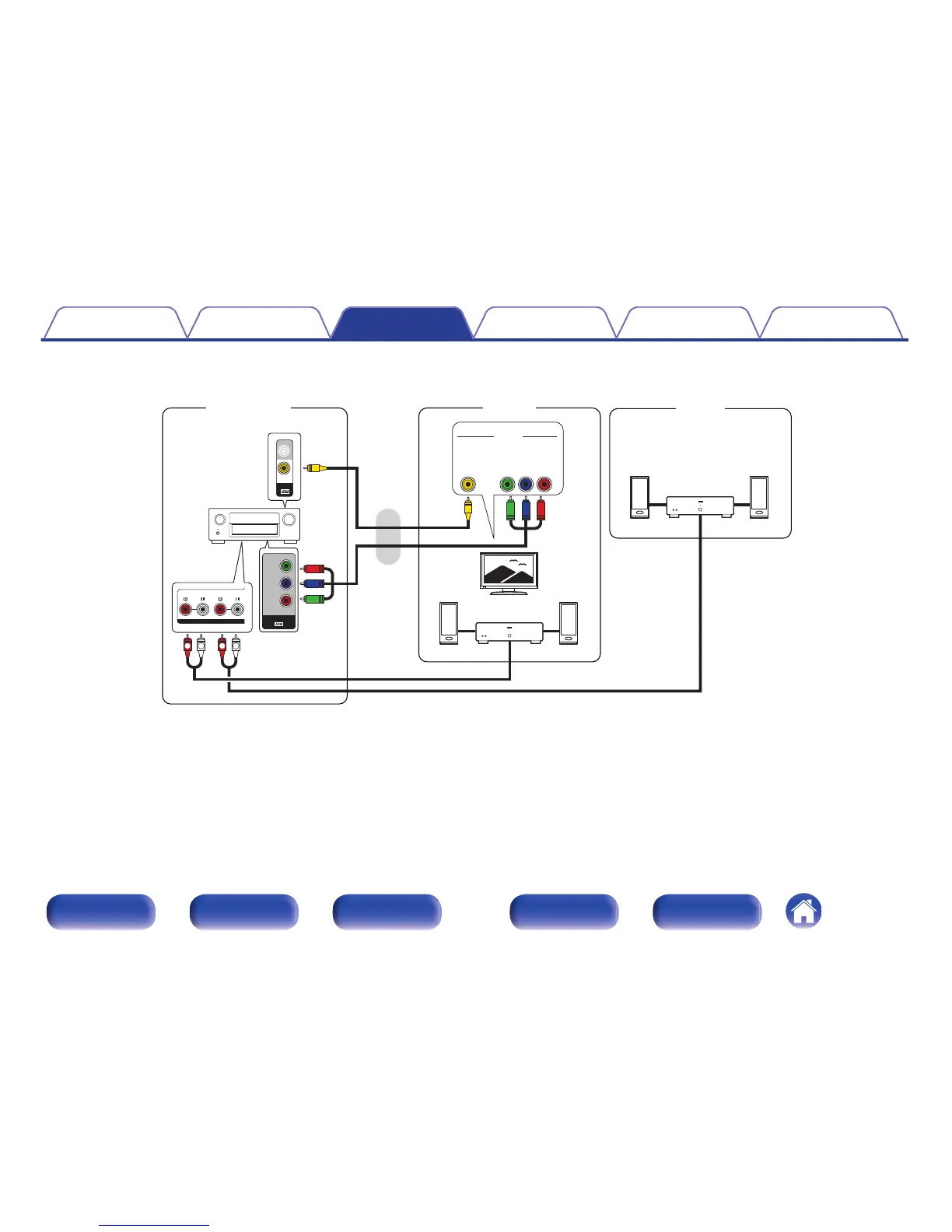

Connection 3 : Connection through the video output connector and external power amplifiers
The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers.
.
R
L
R
L
IN
VIDEO
VIDEO
COMPONENT VIDEO
YP
B PR
IN
AUX IN
AUX IN
Power amplifier
ZONE3
ZONE2
or
This unit
MAIN ZONE
Power amplifier
ZONE2 ZONE3
PRE O
U
COMPONENT VIDEO
MONITOR/ZONE2
Y
P
B/CB
PR/CR
MONITOR
VIDEO
ZONE2
Contents Connections Playback Settings Tips Appendix
172
Front panel Display Rear panel Remote Index

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
