Connecting speakers
Install speakers and connect them to this unit. (v p. 30, 40)
Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.

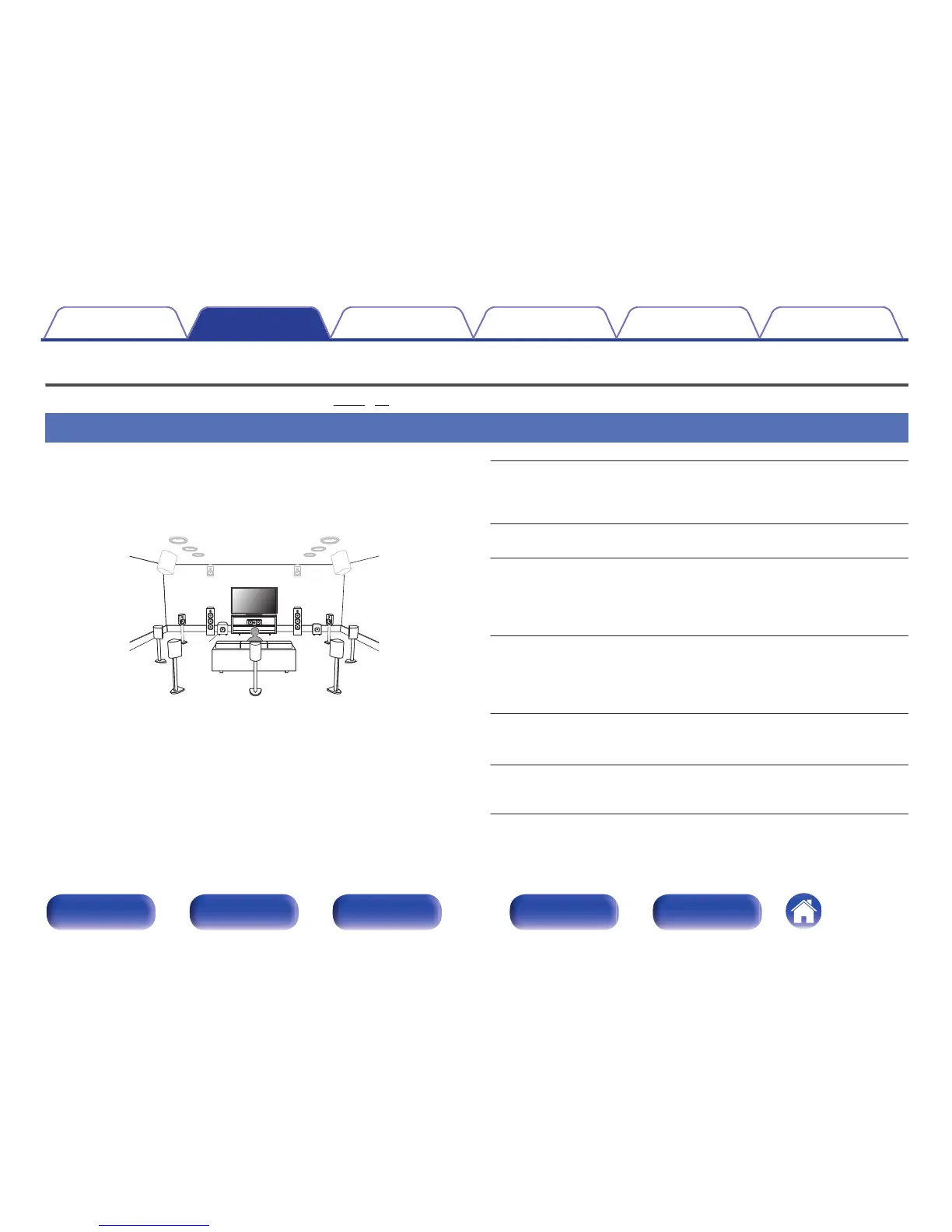

Speaker installation is explained using this example of a typical
installation.
.
FL/FR (Front
speaker left/right):
Place the FRONT left and right speakers an equal
distance from the main listening position. The distance
between each speaker and your TV should also be the
same.
C (Center
speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR (Surround
speaker left/right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the main
listening position. If you don’t have surround back
speakers, move the surround speakers slightly behind
your listening position.
SBL/SBR(Surround back
speaker left/right):
Place the SURROUND BACK left and right speakers
an equal distance from the main listening position and
directly behind the main listening position. When using
a single surround back speaker (SB), place it directly
behind the listening position.
FWL/FWR
(Front wide speakers left/
right):
Place the FRONT WIDE left and right speakers
outside of the front left and right speakers so that there
is an equal distance between all front speakers.
SW 1/2 (Subwoofer) :
Place the SUBWOOFER at a convenient location near
the front speakers. If you have two subwoofers, place
them asymmetrically across the front of your room.
