Denon AVR-X5200W User Manual

.
1 CBL/SAT
PHONO
1 CBL/SAT 2 DVD
2
CD
1
TV
AUDIO
6 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
1 CBL/SAT
1 CBL/SAT
2 DVD
2 DVD4 GAME
(ASSIGNABLE)
DIGITAL AUDIO RS-232C
REMOTE CONTROL
TRIGGER OUT AUDIO
(ASSIGNABLE) (ASSIGNABLE)
VIDEO COMPONENT VIDEO VIDEO COMPONENT VIDEO
MONITOR/ZONE2
MONITOR
ZONE23 Blu-ray
Y
P
B/CB
PR/CR
COAXIAL
OPTICAL
STRAIGHT CABLE
IR
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
SURROUND
FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
SIGNAL
GND
NETWORK
PRE OUT
(ASSIGNABLE)
AUDIO
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㹼16
Ȑ
CLASS 2 WIRING
Denon Link HD
ANTENNA
AM
FM
Bluetooth
/
Wi-Fi
ANTENNA
Bluetooth
/
Wi-Fi
ANTENNA
AC IN
1
CBL
/SAT
2
DVD
3
Blu-ray
6
AUX2
7
CD
4
GAME
5
MEDIA
PLAYER
(ASSIGNABLE)
HDMI
ARC
MONITOR1 ZONE2 MONITOR2
HDMI
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1FRONT
iQ3 Q4 Q5Q1 Q2Q0oQ6
H

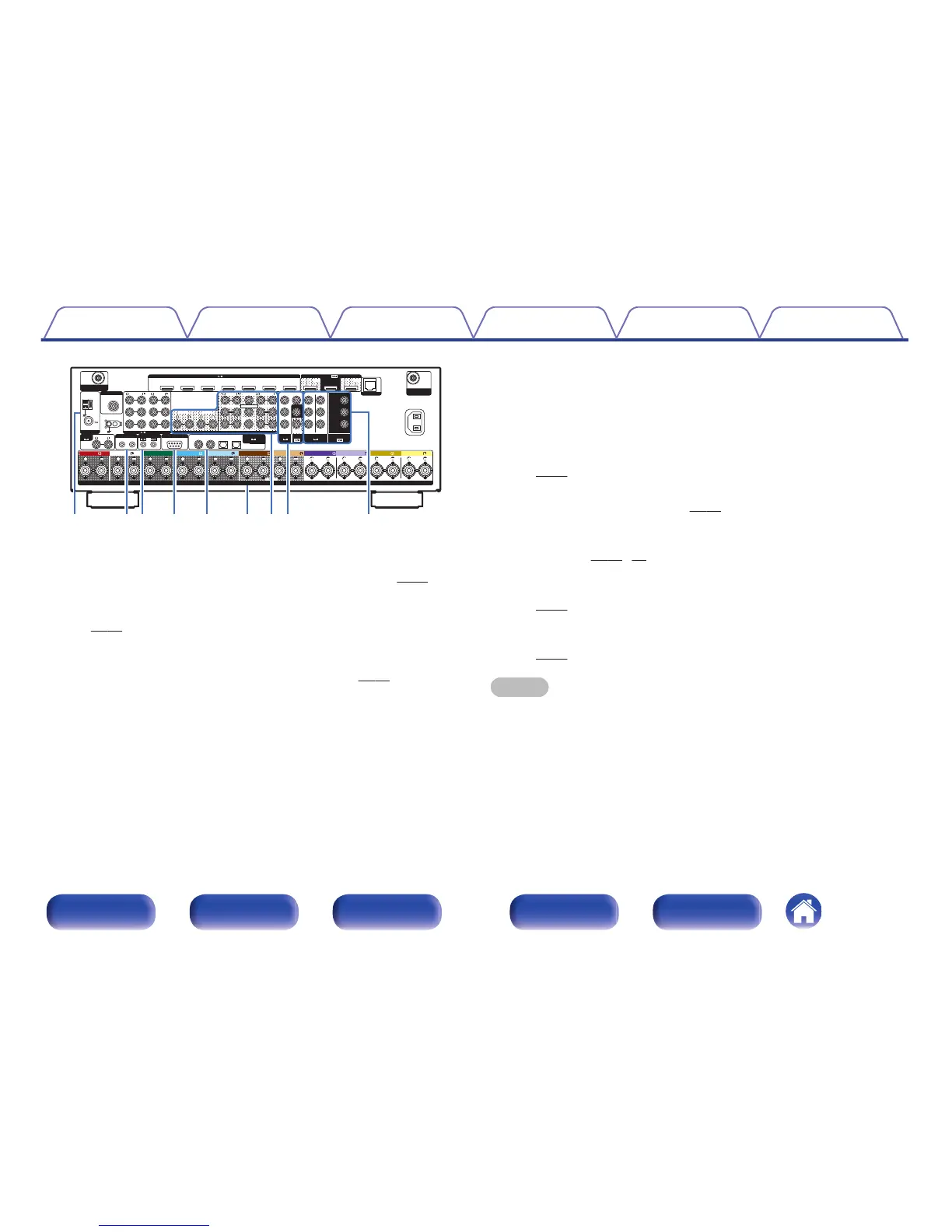

FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 74)
I
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function.
(v p. 79)
J
REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a different room. (v p. 78)
K
RS-232C connector
Used to connect home automation controller devices fitted with
RS-232C connectors. Consult the owner’s manual of the home
automation controller for more information about serial control of this
unit.
L
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
(v
p. 64)
M
Speaker terminals (SPEAKERS)
Used to connect speakers. (v
p. 40)
N
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier. (v p. 41, 61)
O
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
(v
p. 65)
P
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
(v p. 65)
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
Contents Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index

Denon AVR-X5200W Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	16 Ω
Speaker selector	A+B
Pre-out connectivity	Yes
Audio output channels	- channels
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
HDMI in	8
Remote (IR) input	1
Composite video in	5
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Connectivity technology	Wired & Wireless
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Supported radio bands	AM, FM
Internet radio services supported	Spotify, vTuner
Optical drive included	No
Product color	Silver
Audio decoders	Dolby TrueHD, DTS 96/24, DTS Neo:X, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	730 W

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14200 g
