3
Before use
Part names and
functions
Connections
Basic
operations
Installing and setting up
supplied software
USB settings
Troubleshooting Index
Specifications
Signal system chart

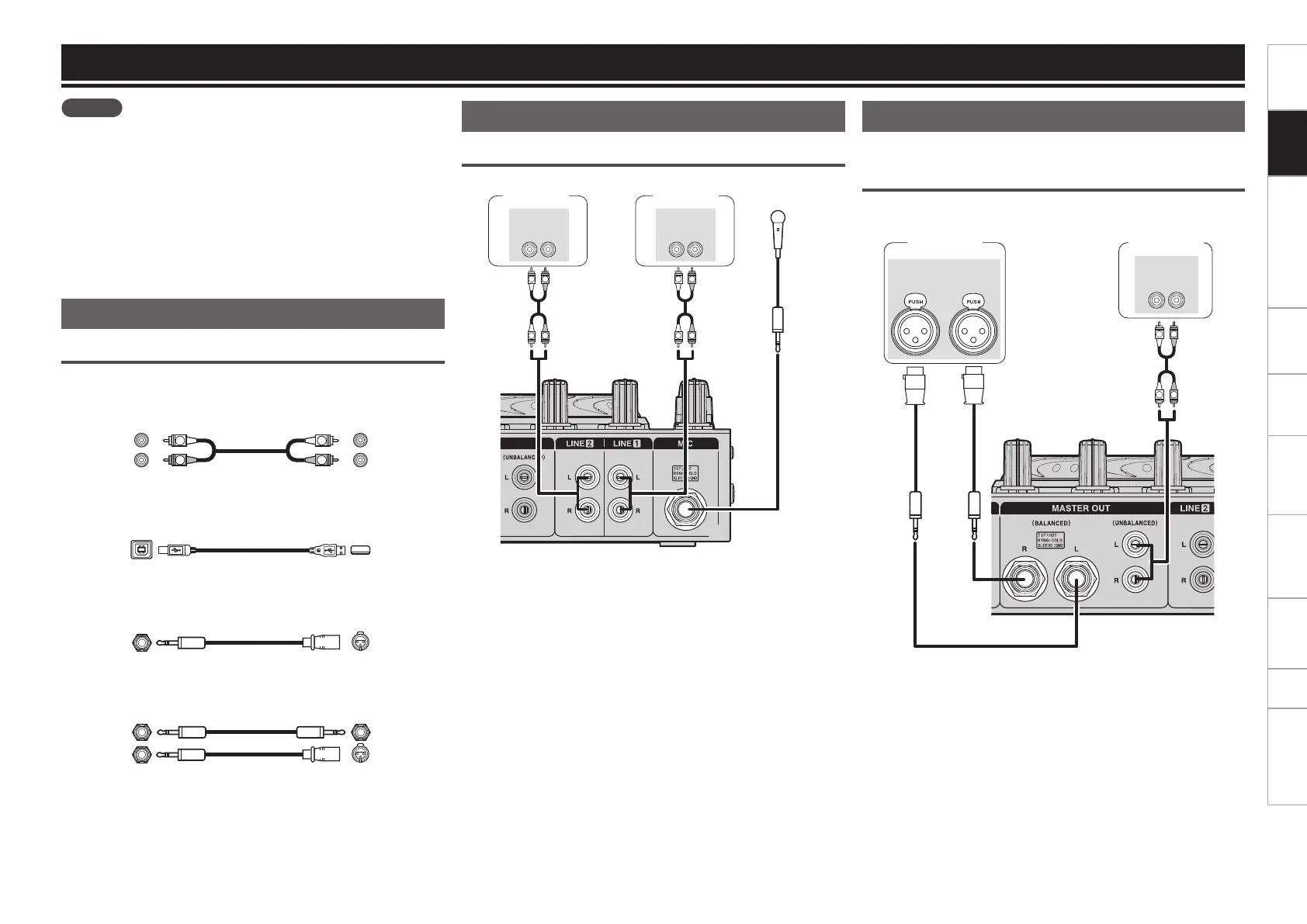

Connections
NOTE
•Do not plug in the power cord until all connections have been
completed.
•When making connections, also refer to the operating instructions of
the other components.
•Insert the plugs securely. Loose connections will result in the
generation of noise.
•Be sure to connect the left and right channels properly (left with left,
right with right).
•Connect the cables to the correct input and output terminals.
•Do not bundle power cords together with connection cables. Doing
so can result in humming or noise.
Preparations
Cables used for connection
Select the cables according to the equipment being connected.
n For RCA input/output terminals
R
L
R
L
RCA pin plug cable (sold separately)
n For USB terminal
USB cable (supplied)
n For coaxial microphone input
Coaxial cable for microphone (sold separately)
n For master output terminals
Balanced phone plug cable (sold separately)
Connections
Input terminal connection
Connecting a microphone/external devices
R
L
R
L
R
L
R
L
AUDIO
RL
OUT
AUDIO
RL
OUT
CD player CD player
Coaxial
Microphone
Output terminal connections
Outputting to an amplifier/powered
speakers and recording devices
R
L
R
L
AUDIO
RL
IN
RL
AUDIO
IN
Balanced
main
amplifier
Unbalanced
main
amplifier
To Next Page
