Denon RCD-N8 Service Manual

89
TAS5142BlockDiagram
www.ti.com

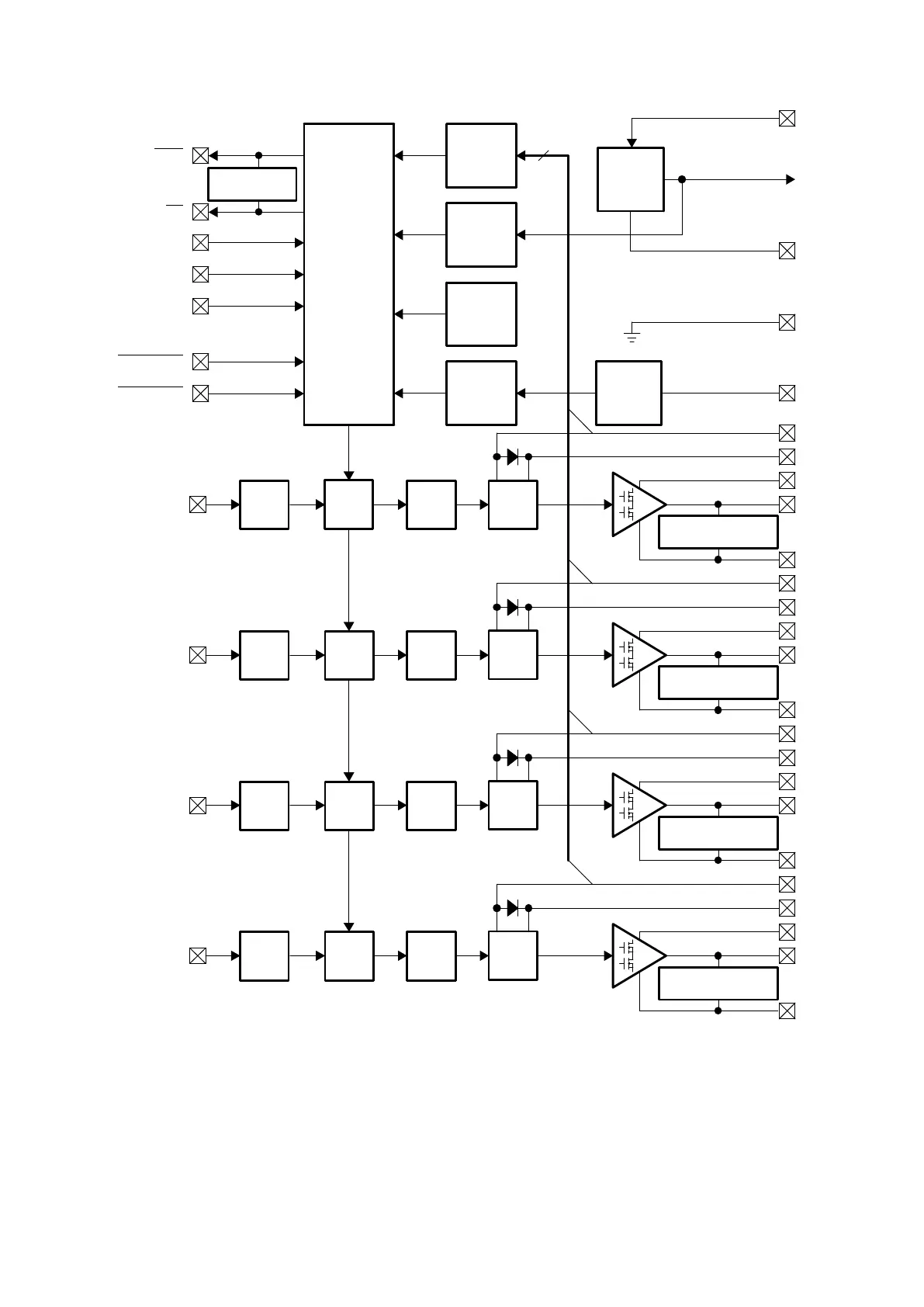

FUNCTIONAL BLOCK DIAGRAM
Temp.
Sense
M1
M2
RESET_AB
SD
OTW
AGND
OC_ADJ
VREG VREG
VDD
M3
Power
On
Reset
Under-
voltage
Protection
GND
PWM_D OUT_D
GND_D
PVDD_D
BST_D
Timing
Gate
Drive
PWM
Rcv.
Overload
Protection
I
sense
GVDD_D
RESET_CD
4
Protection
and
I/O Logic
PWM_C OUT_C
GND_C
PVDD_C
BST_C
Timing
Gate
Drive
Ctrl.
PWM
Rcv.
GVDD_C
PWM_B OUT_B
GND_B
PVDD_B
BST_B
Timing
Gate
Drive
Ctrl.
PWM
Rcv.
GVDD_B
PWM_A OUT_A
GND_A
PVDD_A
BST_A
Timing
Gate
Drive
Ctrl.
PWM
Rcv.
GVDD_A
Ctrl.
BTL/PBTL−Configuration
Pulldown Resistor
BTL/PBTL−Configuration
Pulldown Resistor
BTL/PBTL−Configuration
Pulldown Resistor
BTL/PBTL−Configuration
Pulldown Resistor
Internal Pullup
Resistors to VREG
B0034-02
TAS5142
SLES126B–DECEMBER 2004–REVISED MAY 2005
7

Denon RCD-N8 Specifications

General

Remotely operated	Yes
Security algorithms	WPS
Supported radio bands	FM, VHF
Built-in storage media	No
Audio formats supported	MP3
Internet radio services supported	iDevice, iTunes
Network streaming services supported	-
Product color	White
RMS rated power	130 W
Wi-Fi standards	802.11b, 802.11g
Digital audio optical out	1
Apple docking compatibility	iPhone, iPod
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	50 W

Weight and Dimensions

Depth	299 mm
Width	280 mm
Height	112 mm
Weight	4000 g
