Denso RC8 - Names and Functions of Connectors and Leds

12

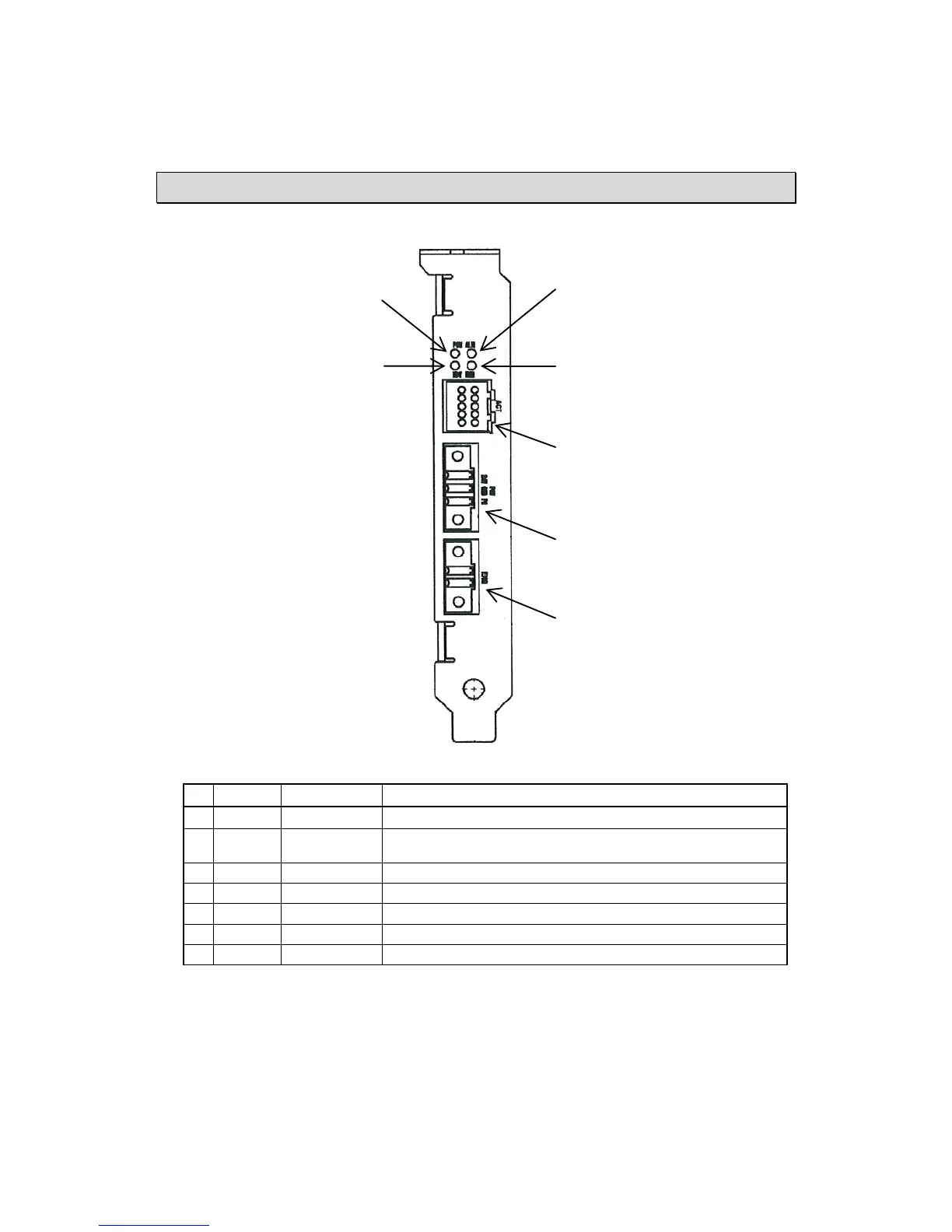

3.4. Names and Functions of Connectors and LEDs
①
②
③
④
⑤
⑥
⑦
No
Name
Connector/LED
Function
1
POW
LED
Lights up (green) when the electric gripper power is ON.
2 RDY LED
Lights up (yellow) when the electric gripper control board is
functioning normally.
3
ALM
LED
Lights up (red) when an alarm occurs.
4
RUN
LED
Lights up (yellow) when the electric gripper is operating.
5
ACT
Connector
This connector is used for connection to the electric gripper.
6
POWER
Connector
This connector is used to supply power to the electric gripper.
7
EMG
Connector
This connection is used to connect emergency stop wiring.
