11
CONCRETE MIXER
EN
M8×70 ×2 C

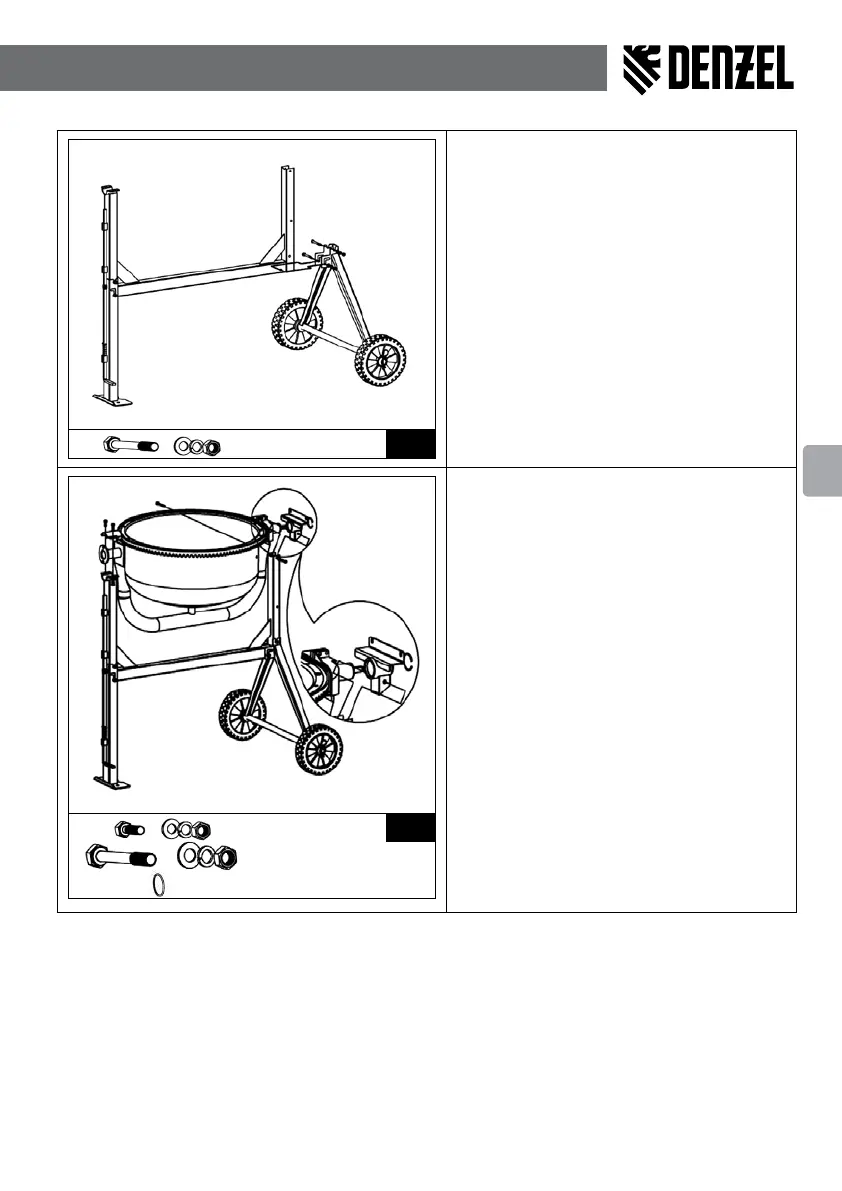

Use the mounting kit "C".
Assemble the frame with a frame with a wheel axis in
the following order:
•
connect the frame (8) with the axis of the frame for
the wheels (10);
•
insert the M8x70 bolt through the hole;
•
on the other hand M8x70 bolt set in the following
sequence: common washer M8 washer M8 and nut
M8;
•
tighten the nut with a wrench;
•
perform the same operations for the second bolt
M8x70.
M8×20 ×2 D
M8×65 ×1
Ø42 ×1
Use the mounting kit "D".
Connect the underside of the tank (4) to the frame
(11) in the following order:
•
connect the fastening shaft with the shaft underside
of the tank by a ring Ø 42;
•
to install the underpart of the tank to the frame
need 2 peoples;
•
slowly lower the underside of the tank to the frame
so that the shaft is turned in the lateral support (left
side), and the holes for fastening the shaft (right
side) coincide with the holes in the frame (as shown
in the gure);
•
insert the M8x65 bolt through the mounting hole
on the right side;
•
on the other side of the M8x70 bolt, install in the
following sequence: the usual washer M8, the spring
washer M8 and the nut M8;
•
tighten the nut with a wrench;
•
install the U-clamp with the bolts M8x20;
•
on the other side of the M8x20 bolt, install in the
following sequence: the common washer M8, the
spring washer M8 and the nut M8;
•
tighten the nut with a wrench.
