12
CONCRETE MIXER
EN
M10×20 ×2 E

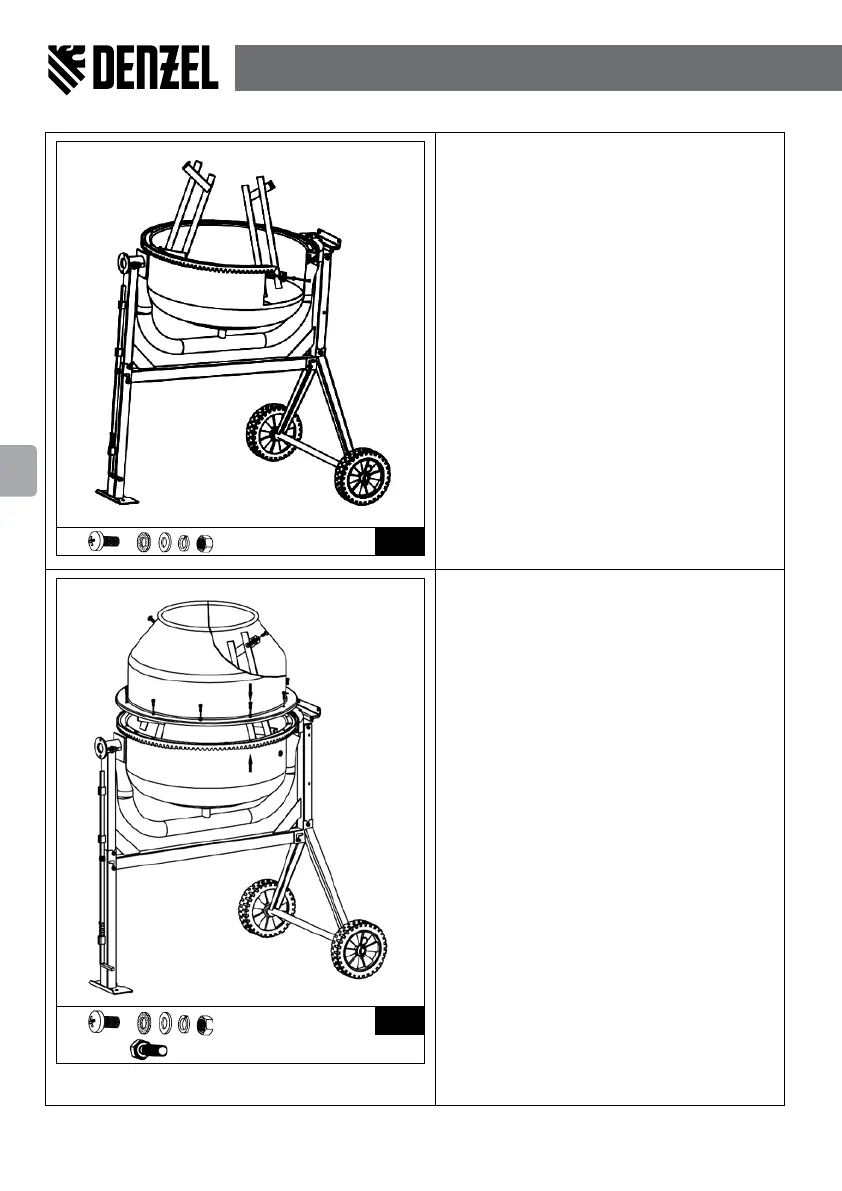

Use the mounting kit "E".
Install the blades (5) on the underside of the tank (4)
in the following order:
•
align the holes on the blades with the holes on the
underside of the tank;
•
insert the M10x20 bolt through the hole;
•
on the other side of the M10x20 bolt, install in the
following sequence: rubber washer M10;
•
common washer M10, spring washer M10 and nut
M10;
•
tighten the nut with a wrench.
M10×20 ×2 F
M8×16 ×10
Use the mounting kit "F".
Install the upside of the tank (3) in the following se-
quence:
•
to install the upside of the tank to the underpart of
the tank you need 2 peoples;
•
slowly lower the upside of the tank, aligning the
holes of the upside with the underpart counterpart
of the screw connection;
•
tighten the 10 screws M8x16;
•
secure the blade (5) at the top, inserting a bolt
M10x20 through hole;
•
on the other hand, set the bolts M10x20 in the fol-
lowing sequence: rubber washer M10 common
washer M10 spring washer M10 and nut M10;
•
tighten the nut with a wrench.
