13
CONCRETE MIXER
EN

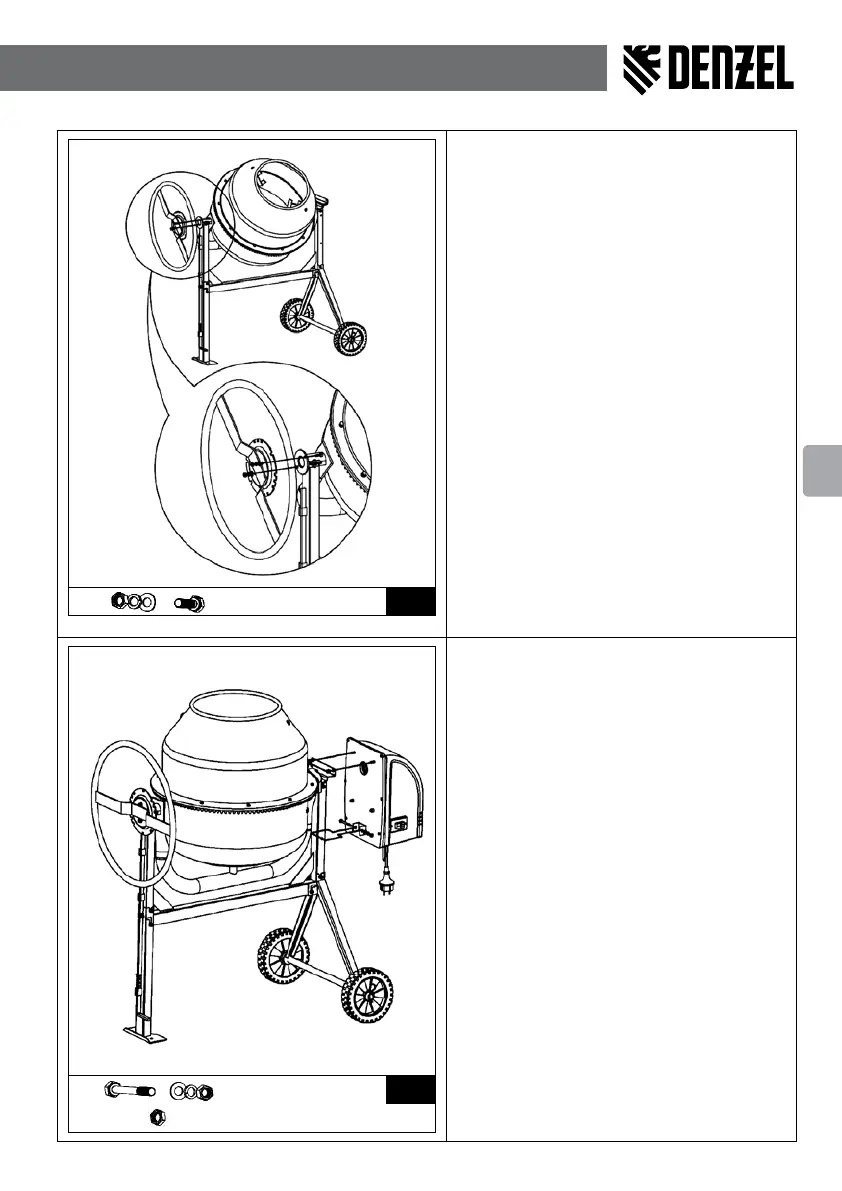

M8×20 ×2 G
Use the mounting kit "G".
Install the steering wheel (2) on the shaft of the bot-
tom of the tank (3) in the following order:
•
align the holes of the steering wheel with the holes
on the shaft;
•
insert the bolt M8x20 through the hole;
•
on the other side of the M8x20 bolt, install in the fol-
lowing sequence: the regular washer M8, the spring
washer M8 and the nut M8;
•
tighten the nut with a wrench.
M8×70 ×1 H
M8 ×2
Use the mounting kit "H".
Install the motor (1) on the frame (11) in the following
order:
•
insert the motor studs into the holes of the shaft
mount;
•
install two M8 nuts on the motor studs;
•
tighten the M8 nuts with a wrench;
•
align the holes of the U-shaped motor holder with
the holes in the frame;
•
insert the bolt M8x70 through the hole;
•
on the other side of the M8x70 bolt, install in the
following sequence: the common washer M8, the
spring washer M8 and the nut M8;
•
tighten the nut with a wrench.
