10
CONCRETE MIXER
EN

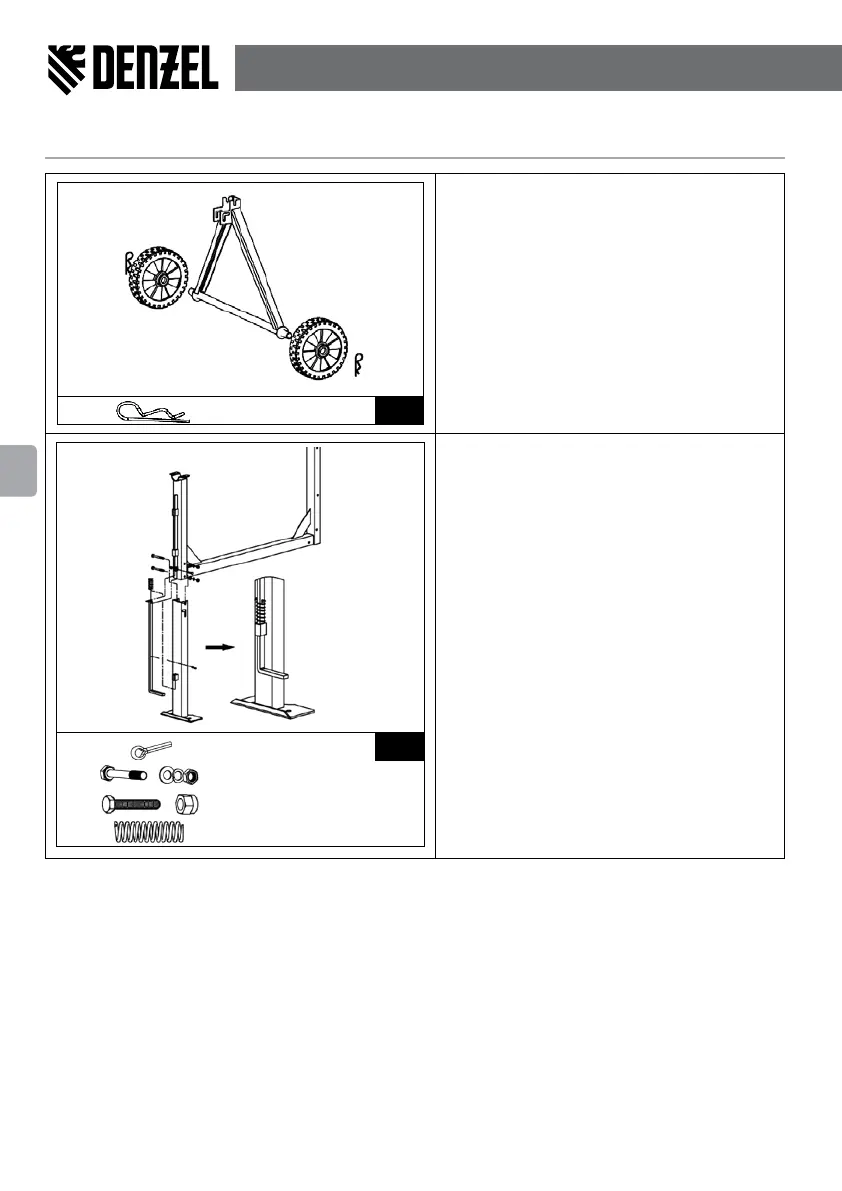

ASSEMBLY
×2 A
Use the mounting kit "A".
Put the wheels onto the axle, securing them with
spring cotter pins.
×1 B
M8×70 ×2
M6×25 ×1
×1
Use the mounting kit "B".
Assemble the frame in the following order:
•
connect the stirrup (11) to the frame (8);
•
insert the M8x70 bolt through the hole;
•
on the other hand bolt M8x70 set in the following
sequence: common washer M8 washer M8 and nut
M8;
•
tighten the nut with a wrench;
•
perform the same operations for the second bolt
M8x70.
Assemble the drum tilt lock lever to the frame-stand
in the following order:
•
thread locking lever through the loop on the frame-
pedestal;
•
thread locking lever through a spring loop to the
frame-supply (as shown);
•
pressing the spring to the loop, set the cotter pin
through the hole in the lever lock and unclench its
ends;
•
connect the locking lever to the extension;
•
insert the M6x25 bolt through the hole;
•
on the other side of the bolt, install the M6 nut and
tighten it.
