HyperPoolShaker
POOL CONFIGURATION
Extensive testing has shown that the most efficient pool configuration maximizes use of the
available screen area. In general, the pool should cover all screen panels except for the discharge
screen, which is the last screen on the screen frame.
The AWD allows the operator to easily change the angle of elevation in rapid response to ever-
changing conditions and feed rates of the slurry. There is no “one correct setting” for the AWD.
Suggested changes to an existing screen angle are shown in Figure 4-6. Note that the dark
pattern at the left represents the area of the screen panels covered by the pool. The ideal
coverage is for the pool to cover about two-thirds of the screen surface. If coverage retreats to
halfway across screen surface, the screen frame angle may be reduced and/or flow increased.
Finally, if the pool covers nearly all of the screen surface, the screen angle may be increased
and/or flow decreased to reduce the pooling area.
POOL CONFIGURATION ANGLE ADJUSTMENT
ALTERNATIVE
ADJUSTMENT
Correct screen angle
No adjustment required
Decrease screen angle Increase flow
Increase screen angle Decrease flow

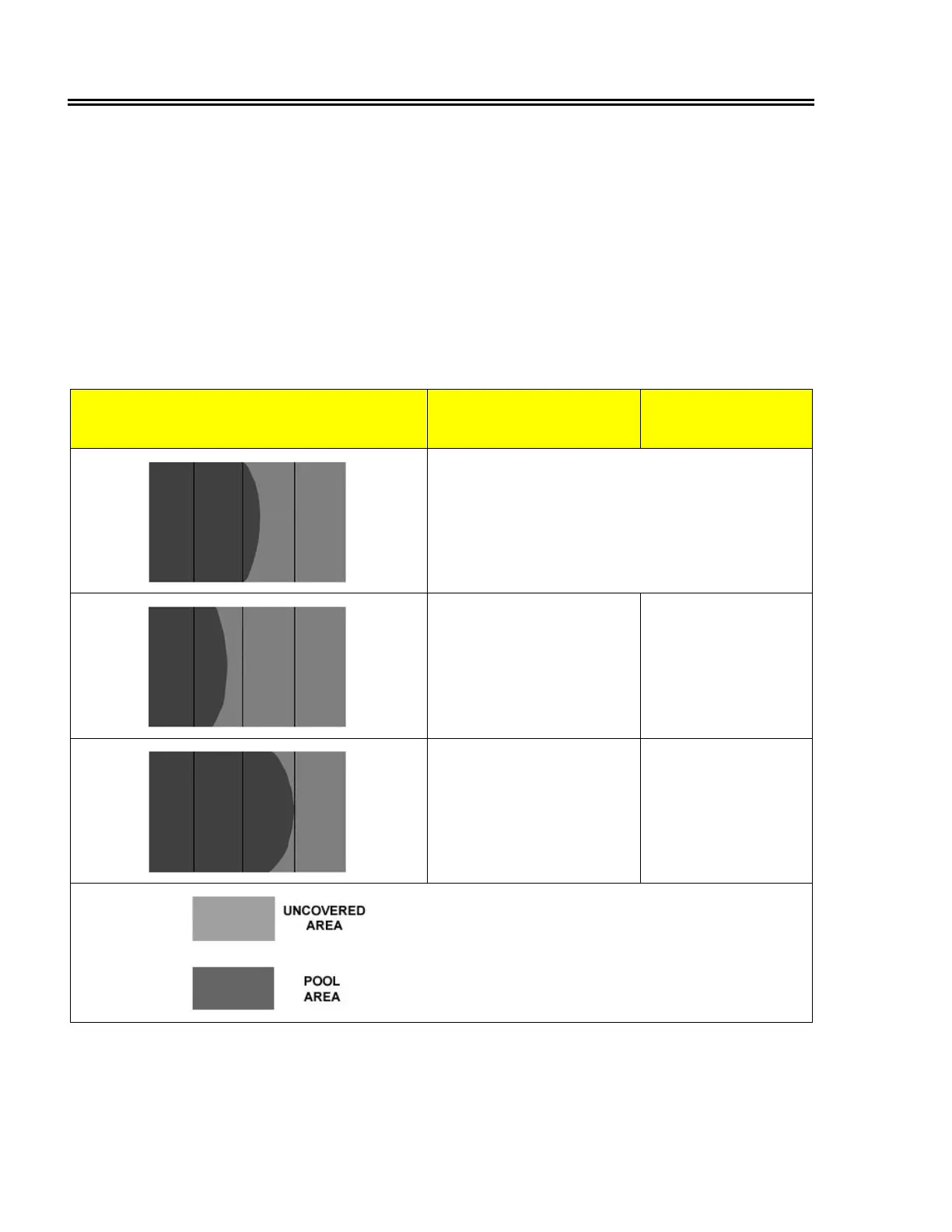

Figure 4-6. Pool Configuration and Adjustments
