DERRICK HYPERPOOL SHAKER User Manual

SGX VIBRATOR MOTOR
7-14 15 Jun 12
HyperPoolShaker
Connecting Motor Cords To Starter Box
Motor leads are connected to manual starters inside the starter box (Figure 7-5). Refer to the
schematic diagram in Section 8 for additional assistance in connecting the vibrator motors.
Connect the motor leads to the starters as follows:
1. Pass leads through holes in bottom of starter box. For each cable, thread front gland nut into
starter box, and tighten securely. Thread rear gland nut onto front gland nut, and tighten
securely. Thread and tighten backnut onto cable gland.
2. Connect leads to starters and ground terminal as shown in the schematic diagram in Section
8. Be sure to reverse leads for one motor—motor red lead to starter box black lead and motor
black lead to junction box red lead—so that motors rotate in opposite directions.
Note! Be sure to connect one motor in reverse polarity so that motors rotate
in opposite directions.

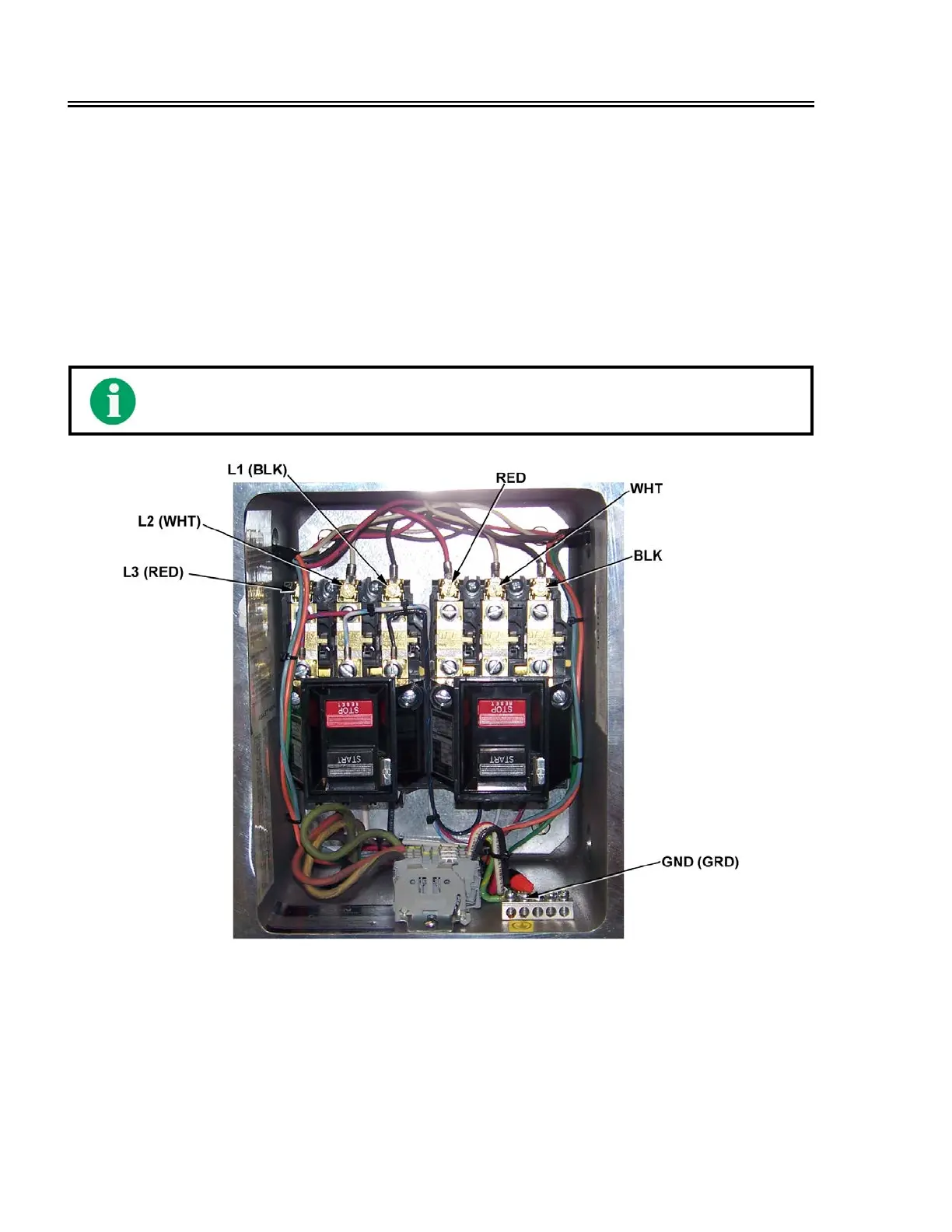

Figure 7-5. Motor Cable Connections to Motor Starters
Motor Test
After completing the electrical connections, test the motors to confirm proper operation. Check
that motors rotate in opposite directions. If the motor test reveals that motors are rotating in the
same direction, reverse the leads of one motor to correct the direction of rotation.
