DESKO ICON - Mounting Options

Technical Specification - CONFIDENTIAL - Page 19 of 21
DESKO ICON Scanner
®
Doc # 7 001 140 101 Doc.-Rev.: 2016-11-09
13.1.3 Mounting Options

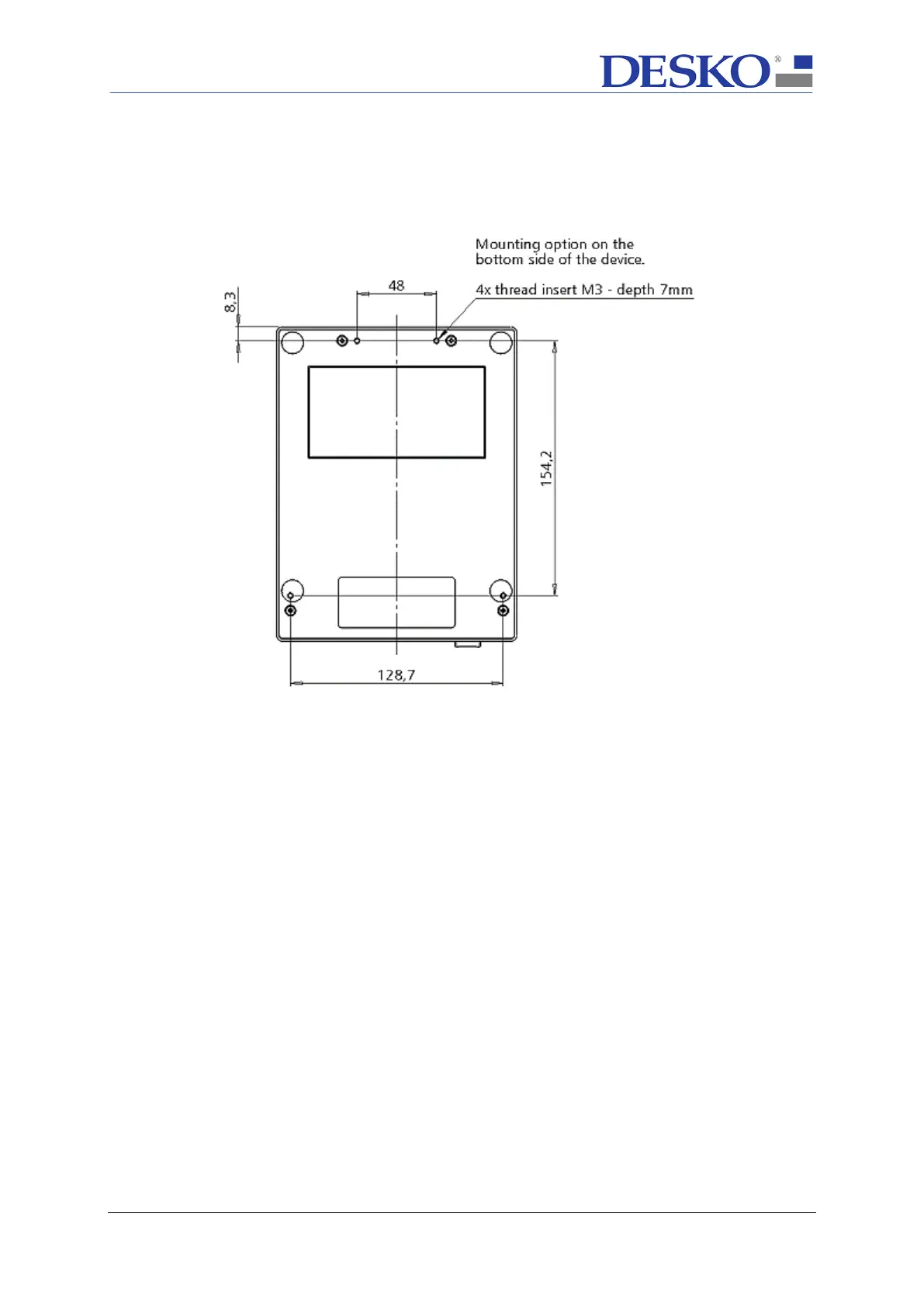

The device has mounting options on the bottom side. 4 screws with M3 thread are
required. For dimensions of the mounting positions see the drawing below.
(Dimensions in mm)
