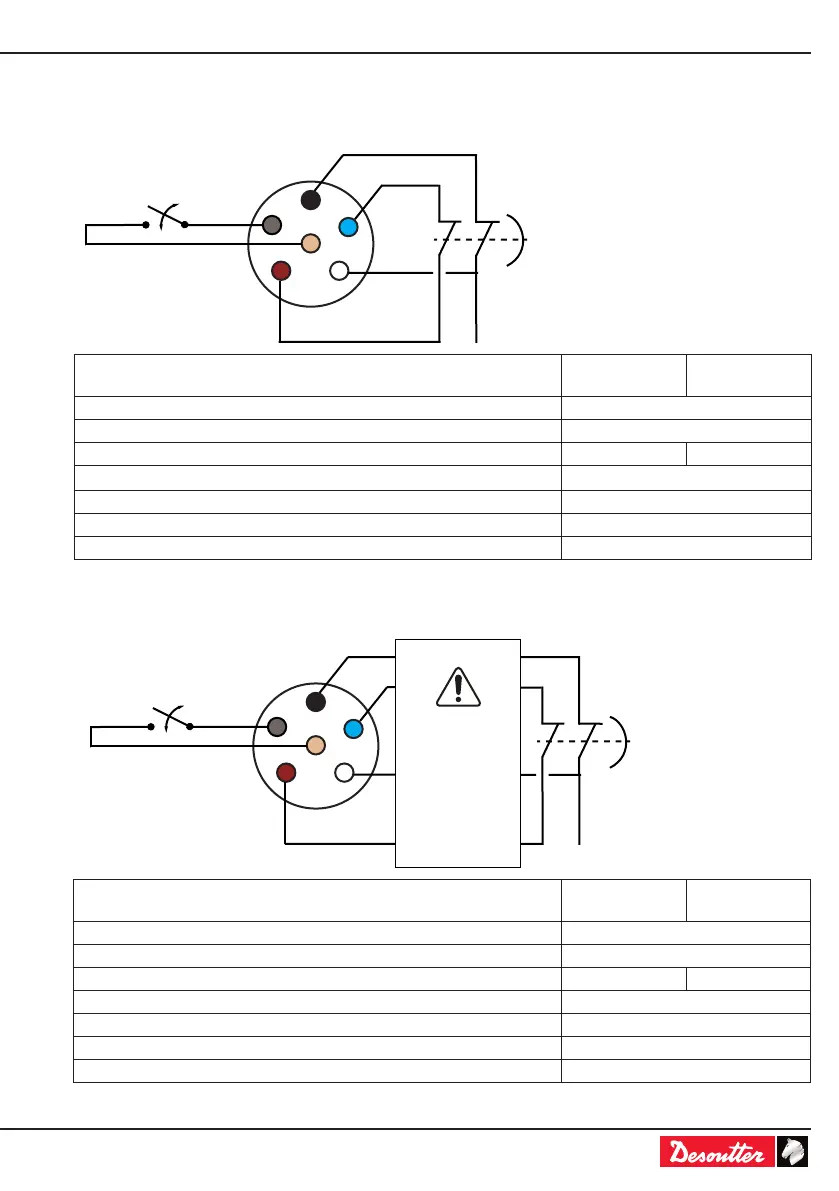

Emergency stop / light curtain and RESET connections
Category 1 - level C
Category 3 - level D
RESET
EMERGENCY
STOP
1
4
5
2
3
6
1 brown
2 white
3 blue
4 black
5 grey
6 pink
RESET
EMERGENCY
STOP
1
4
5
2
3
6
1 brown
2 white
3 blue
4 black
5 grey
6 pink
Add a safety
relay between
the controller
and the
emergency
stop
Safety-related characteristic data
Value for one
controller
Value for ten
controllers
PL in accordance with EN ISO 13849-1:2015 PL c
Category in accordance with EN 13849-1:2015 Cat. 1
PFH in accordance with EN ISO 13849-1:2015 (test every year) 1.11E-07 1.80E-07
B10d 20.000.000
DC 45%
MTTFd [hours] in accordance with EN ISO 13849-1:2015 HIGH – 93 years
TM in accordance with EN ISO 13849-1:2015 20 years
Safety-related characteristic data
Value for one
controller
Value for ten
controllers
PL in accordance with EN ISO 13849-1:2015 PL d
Category in accordance with EN 13849-1:2015 Cat. 3
PFH in accordance with EN ISO 13849-1:2015 (test every year) 8.57E-09 7.73 E-08
B10d 20.000.000
DC 99%
MTTFd [hours] in accordance with EN ISO 13849-1:2015 HIGH – 93 years
TM in accordance with EN ISO 13849-1:2015 20 years
