Battery Status
The battery status will be displayed when batteries are installed. A number will be displayed
in the upper right of the screen indicating the level of charge remaining in the batteries. For
example 100 = 100% charge, 75 = 75% charge, etc.
When the batteries are the point they need to be replaced (Alkaline) or recharged (NiCad or
NiMH) and the battery voltage drops too low for accurate weighing, the scale will
automatically shut off and you will be unable to turn it back on.
Using Alkaline Batteries
When the batteries are low enough that the scale turns off, remove the old batteries and
replace with new ones.
Using NiCad or NiMH Batteries
When the batteries are low enough that the scale turns off, remove the discharged
batteries and replace with fully charged ones. Place the discharged batteries in an
external charger to recharge.
Battery Installation/Replacement
To install or remove the batteries, the following steps should be followed:
1. Make sure the AC power adapter is unplugged.
2. Remove the platform cover from the scale base.
3. Referring to Figure No. 1, locate the two (2) rectangular panels in the scale base.
4. To install or replace the batteries, first remove each battery holder cover by pushing in
on the tab and lifting it up exposing the battery holders. See Figure No. 2 and 3.
5. If installing new batteries, proceed to step 6. If replacing the batteries, remove all 6
batteries from the battery holder and then proceed to step 6.
6. Referring to Figure No. 4, install six (6) "AA" size batteries in the each holder, noting the
polarity markings located in the battery holder.
7. After placing all six (6) batteries in each holder, replace the battery covers.

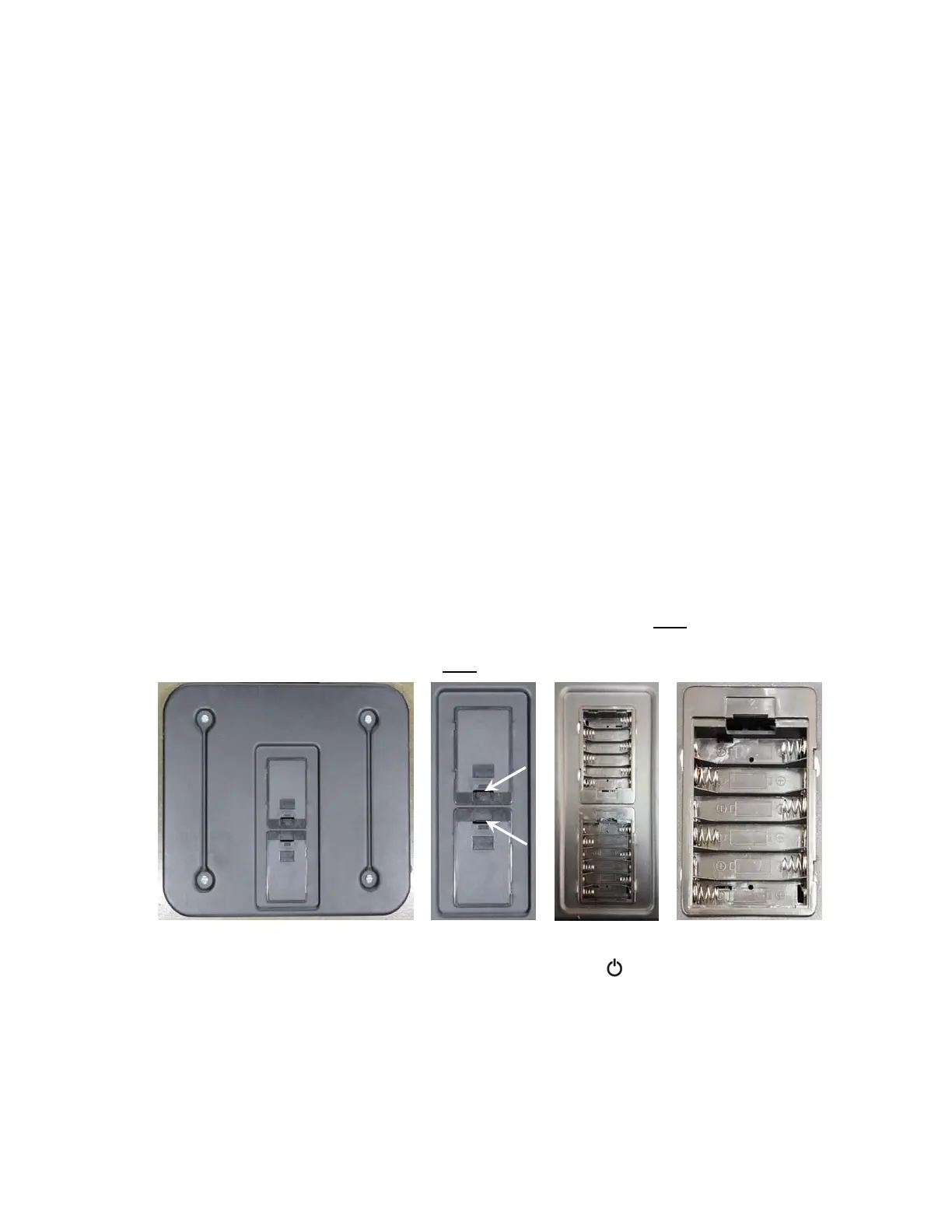

Figure No. 1 Figure No. 2 Figure No. 3 Figure No. 4
8. Install the platform cover on the scale base and press the key.
9. If display turns on, batteries have been installed correctly. If not, remove the platform
cover and then the battery covers and check for one or more improperly positioned
batteries.
10. The scale is now ready for operation.
