3300-0192-0M Rev D 01/17 26
PARTS IDENTIFICATION

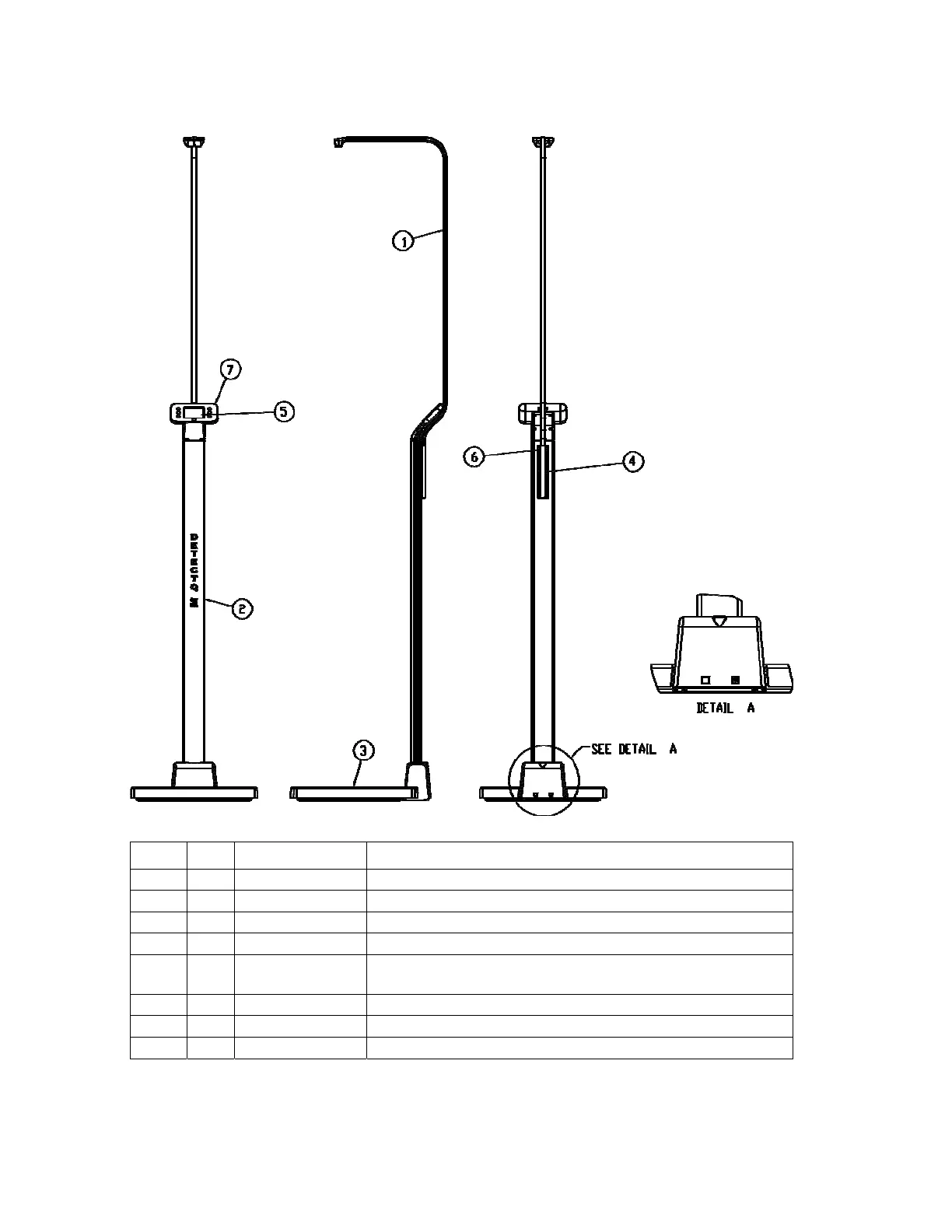

Final Assembly
Item Qty. Part Number Description
1 1 3300-0140-0A SUB-ASSY, SONAR HR
2 1
3300-0141-0A
SUB-ASSY, ICON COLUMN
3 1
3300-0144-0A
SUB ASSY, ICON BASE
4 1 3300-0265-08
SONAR BRACKET
5 2 6021-1293
SCW FLAT-HEAD THREAD CUTTING TYPE 25,
#4-24 X 1/4, PHIL. DR. Z-PLATE
6 6 6021-6016
SCW PAN-HEAD,, SHEET METAL #6X.50
7 1 3300-0151-0A SUB-ASSY, DISPLAY, ICON
1 6800-1045 AC ADAPTER 100-240VAC/12VDC @ 1 AMP
NOT SHOWN
