3300-0192-0M Rev D 01/17 27

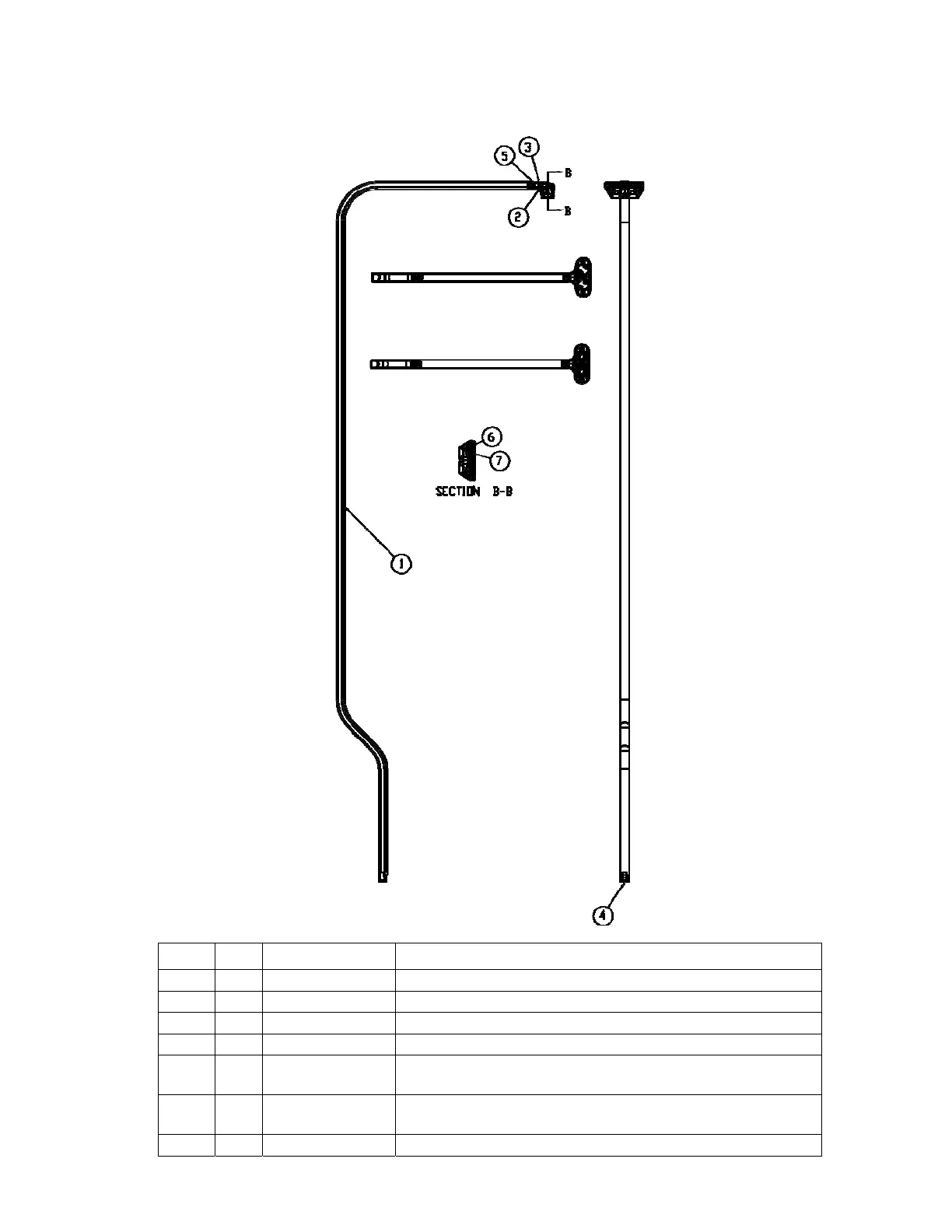

PARTS IDENTIFICATION
Sonar HR Sub-Assembly
Item Qty. Part Number Description
1 1 3300-0022-08 HEIGHT SENSOR TUBE
2 1 3300-0060-08 SONAR FRONT ENCLOSURE
3 1 3300-0061-08 SONAR REAR ENCLOSURE
4 1 3300-0135-0A CABLE, ICON/APEX SONAR
5 1 6021-1293
SCW FLAT-HEAD THREAD CUTTING TYPE 25,
#4-24 X 1/4, PHIL. DR. Z-PLATE
6 2 6021-2078
SCW PAN HEAD PHILIPS #1-32X3/8” THREAD
FORMING, 18-8 SS
7 1 6600-0756 ULTRASONIC RANGING MODULE
To Next Page
