INSTALLATION, CONT.
Assembly

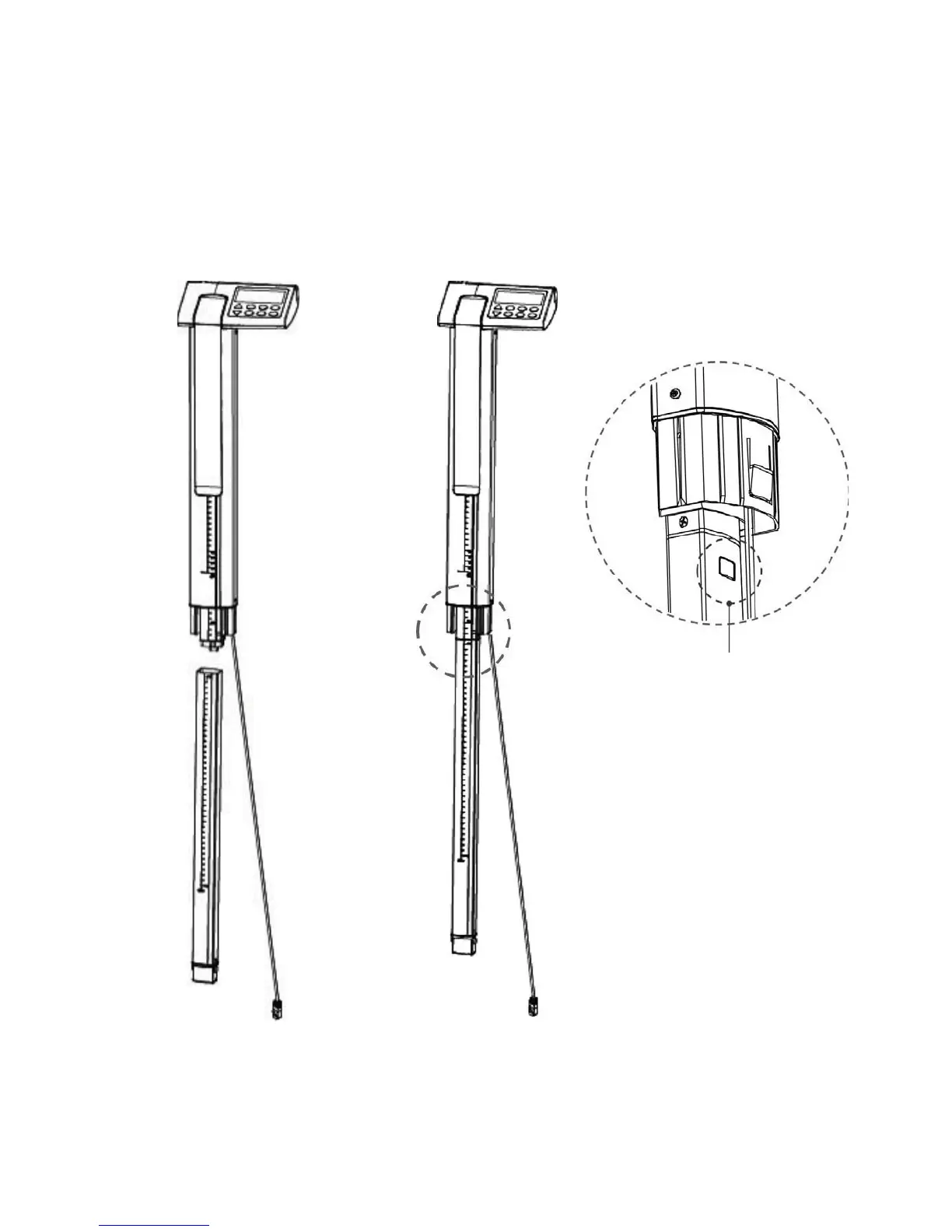

Step 1
1. Align Part 2 (lower inside column) with Part 1 (pre-assembled display upper outside
and inside column).
2. Press the parts together until the locking tab snaps in place.
3. Ensure that the locking tab is locked securely.
cc
dd
ee
Ensure locking tab
is securely locked.
