Detecto solo

0044-0391-0M Rev A y solo Digital Clinical Scale
4
INSTALLATION, CONT.
Assembly, Cont.

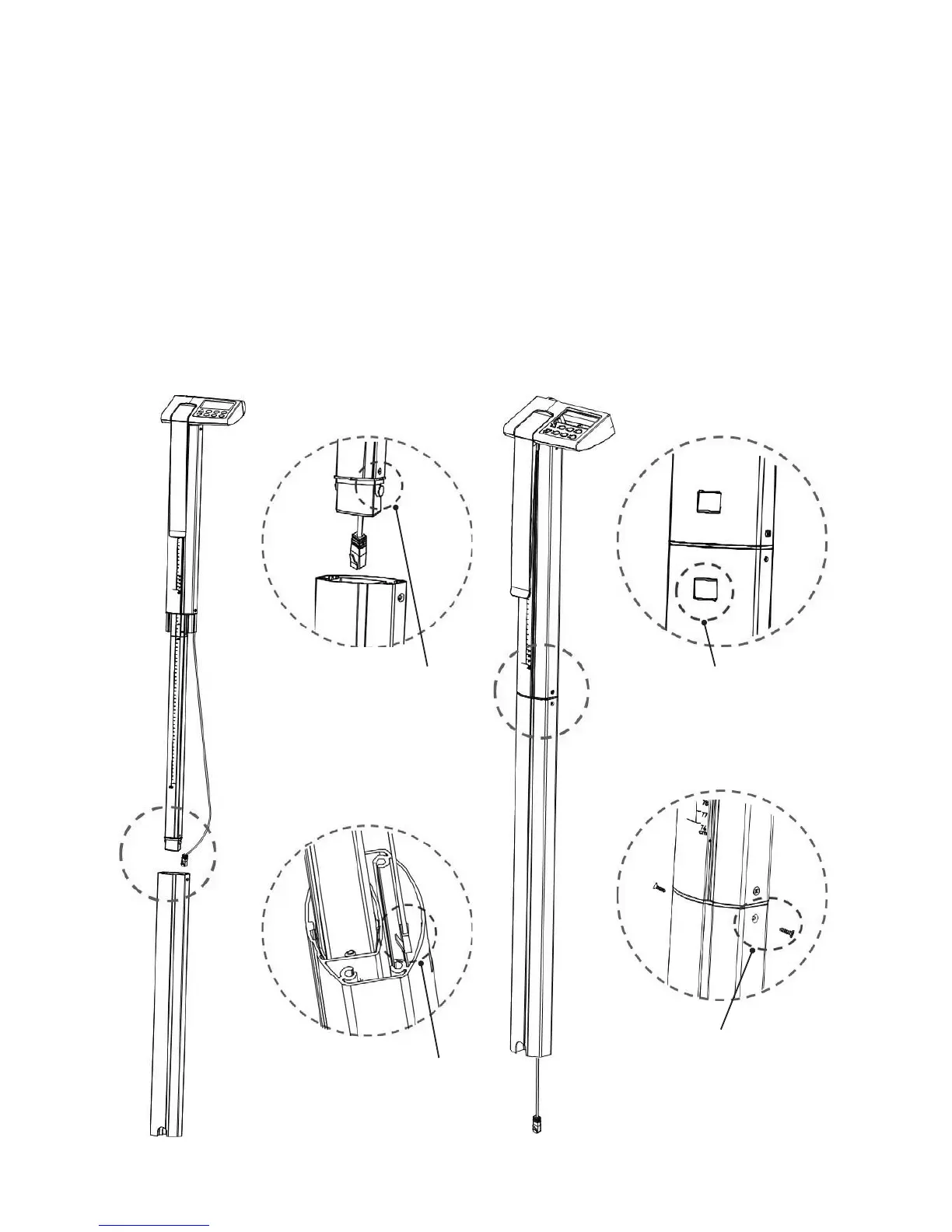

Step 2
1. Align Part 3 (lower outside column) with assembled Part 1 and 2 (display upper
outside and inside column, and lower inside column).
2. Press the locking tab (on Part 2, lower inside column) inward and then insert into
Part 3 (lower outside column).
3. Slide the cable connector through Part 3 (lower outside column).
4. Press Part 3 and Part (1 and 2) together until the locking tab snaps in place.
5. Ensure that the locking tab is locked securely.
6. Install the (2) M3 x 12 machine screws (one in each side of Part 3) to secure Part 1
and 2 together with Part 3.
cc
dd
ee
ff
Ensure locking tab
is securely locked.
Press locking tab
inward to insert
Part 2 into Part 3.
Slide the cable
connector
through Part 3.
Install (1) M3 x 12
screw on each
side of Part 3.
gg
hh
