0044-0391-0M Rev A y solo Digital Clinical Scale
INSTALLATION, CONT.
Assembly, Cont.

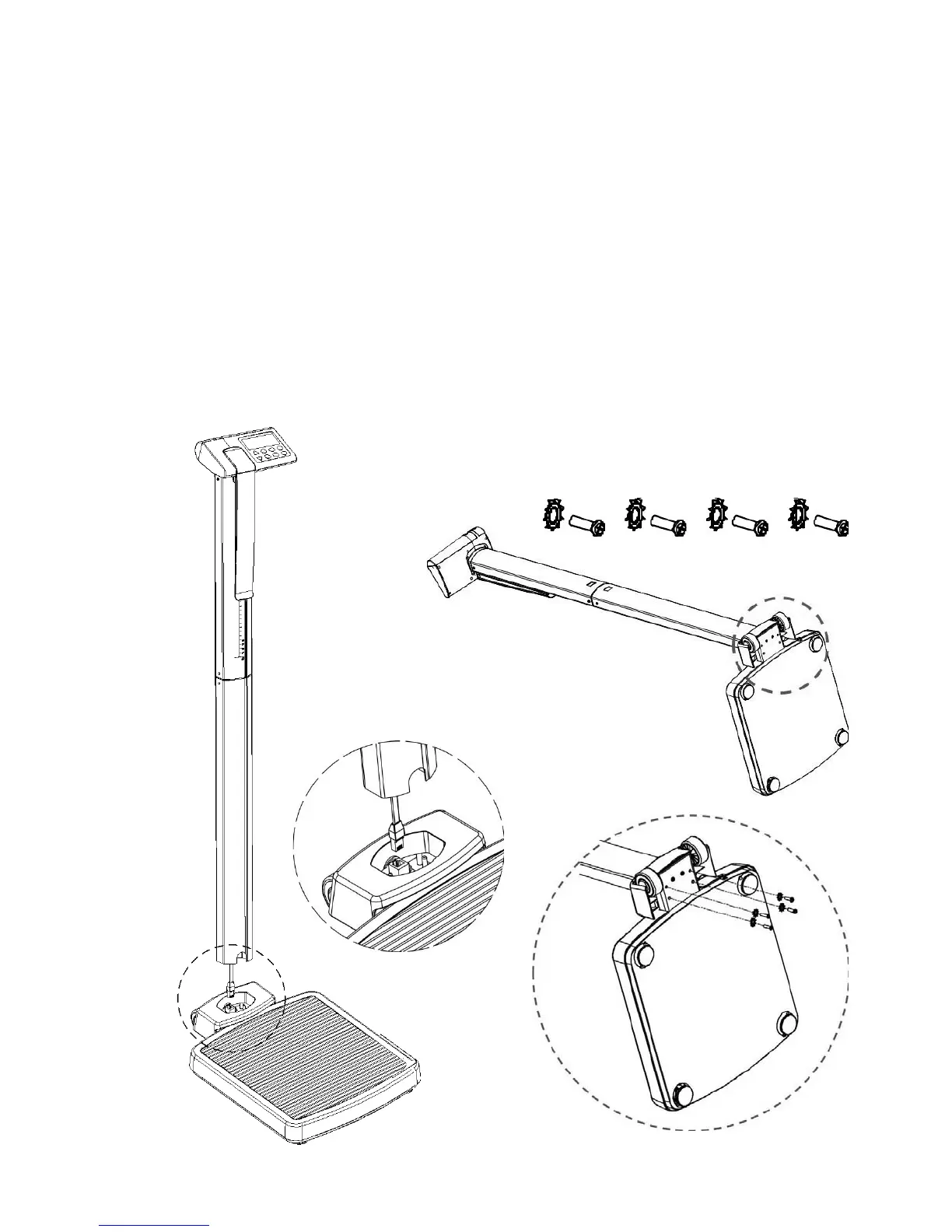

Step 3
1. Plug the cable connector into the RJ jack located on the Part 4 (scale platform).
2. Align the display and assembled column with Part 4 (scale platform) and insert the
column into opening of the scale platform.
3. While holding the column in place, carefully lay the scale down with the column
horizontal to floor.
4. Attach the column to the scale platform by inserting the (4) M5 x 15 machine screws
and lock washers through the holes in the scale platform into the threaded holes of
the column. Tighten the screws to secure the column to the scale platform.
The scale should be placed on a flat, level hard-surfaced floor or low-cut, unpadded carpet,
away from any rapidly moving air source (heating and cooling vents).
