Deutz 1015 - Valve Clearance Adjustment Procedures; Adjusting Valve Clearances; Valve Clearance Adjustment Schematics

6
26 405 0
EX
IN
EX
IN
7
6
54

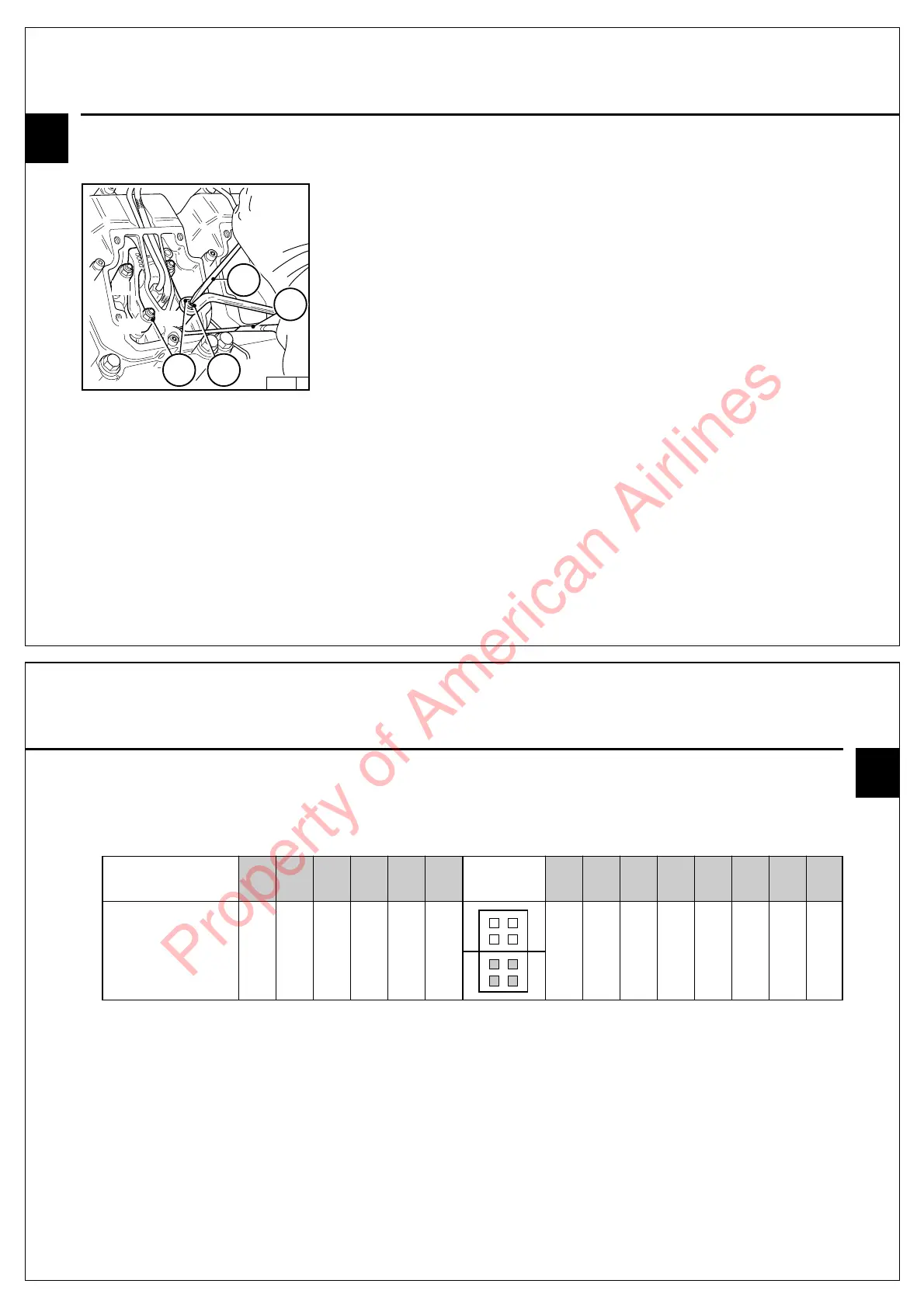

● If necessary, adjust valve clearance as follows:
– Loosen lock nut 4 using wrench 7.
– Adjust set screw 5 by means of screwdriver
6 in such a manner that with lock nut 4
tightened (wrench), the correct valve
clearance 1 is attained.
● Check the valve clearances at each of the
remaining cylinders and adjust if necessary.
● Refit rocker cover (together with new gasket if
necessary).
Service and Maintenance 6.6 Adjustments
6
Firing Order BF6M 1015: Firing Order BF8M 1015:
A1 – B3 – A3 – B2 – A2 – B1 A1 – B4 – A4 – B1 – B3 – A3 – B2 – A2
6.6.1.1 Valve Clearance Adjustment Schematic
Sequence 123456 12345678
Valve overlap A1 B3 A3 B2 A2 B1 A1 B4 A4 B1 B3 A3 B2 A2
Adjusting B2 A2 B1 A1 B3 A3 B3 A3 B2 A2 A1 B4 A4 B1
6.6 Adjustments Service and Maintenance
