dS2824 User Manual v4.12

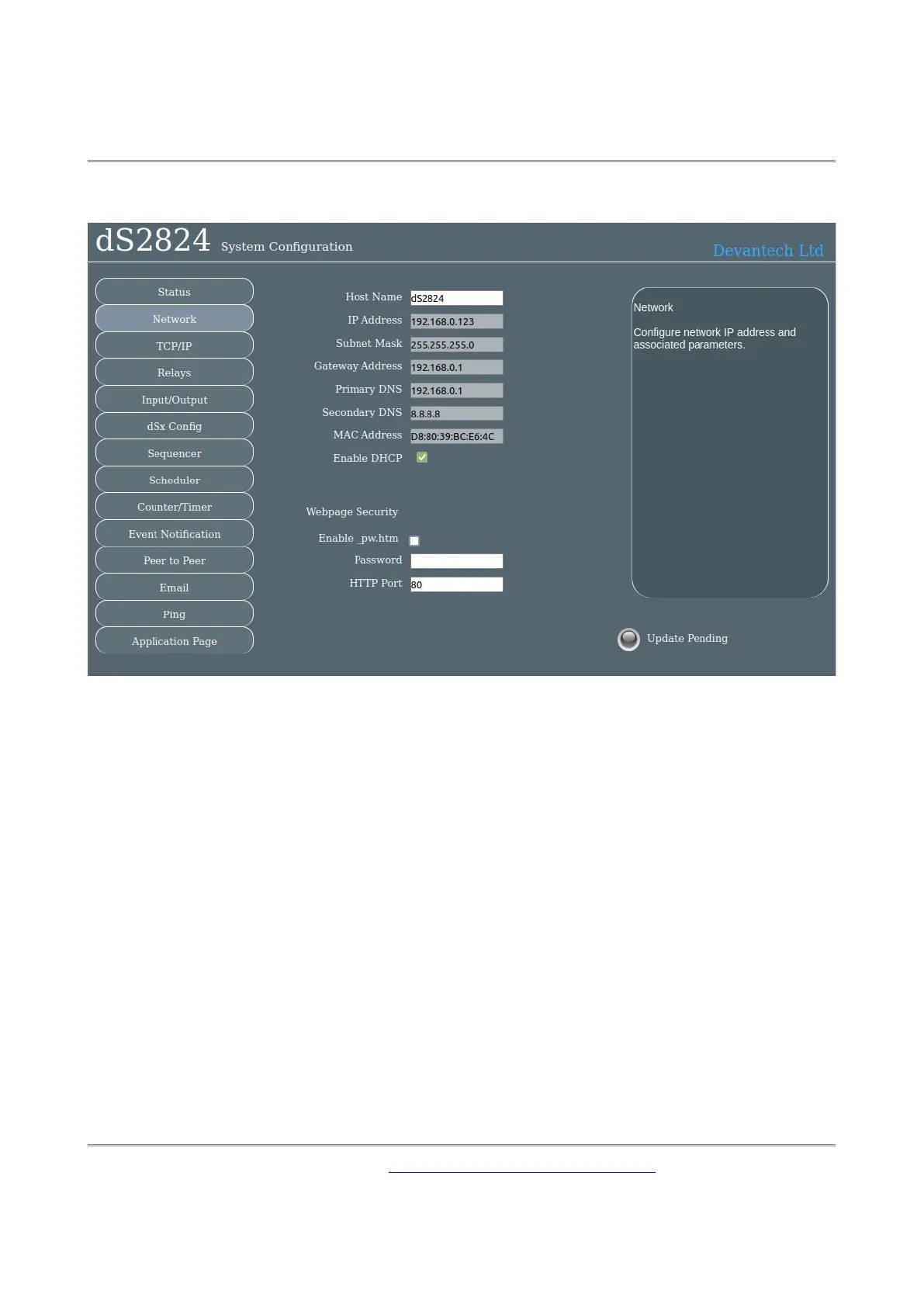

Network page

Notice that everything below the Host Name is greyed out and can't be changed. This is be-

cause the “Enable DHCP” box is checked and all the greyed out fields are supplied by the DHCP

server. Although a quick way to get you connected, we really do not recommend this as the

DHCP server can assign a different IP each time you power up. If you want to control this mod-

ule from the internet while you are away from the premises then you will be setting up port

forwarding on your router which requires a fixed IP address.

So lets do that first.

Uncheck the DHCP box and you can then set all the other fields. Notice that the Red “Update

Pending” light comes on. It indicates there are changes which have not yet been written to the

flash memory. It will go off again 5 seconds after you stop changing anything.

Choose an IP address for the module, something outside of the DHCP settings on your router

so it will not assign anything to that address. The subnet mask, Gateway and DNS can all be

left as the defaults. Network changes only take effect after the next re-boot, so wait until the

“Update Pending” light goes out and give the reset button on the module a quick press. The

Green Led will light and the Blue led will flash 3 times. You will now find the module at your

new IP address. If the Red led comes on after you press the reset button, its because you

pressed it for too long (and entered bootloader mode). Just have another go with the reset

button for a bit less time.

Your browser won't know you have changed the IP address so it will still be showing the old,
