The application page

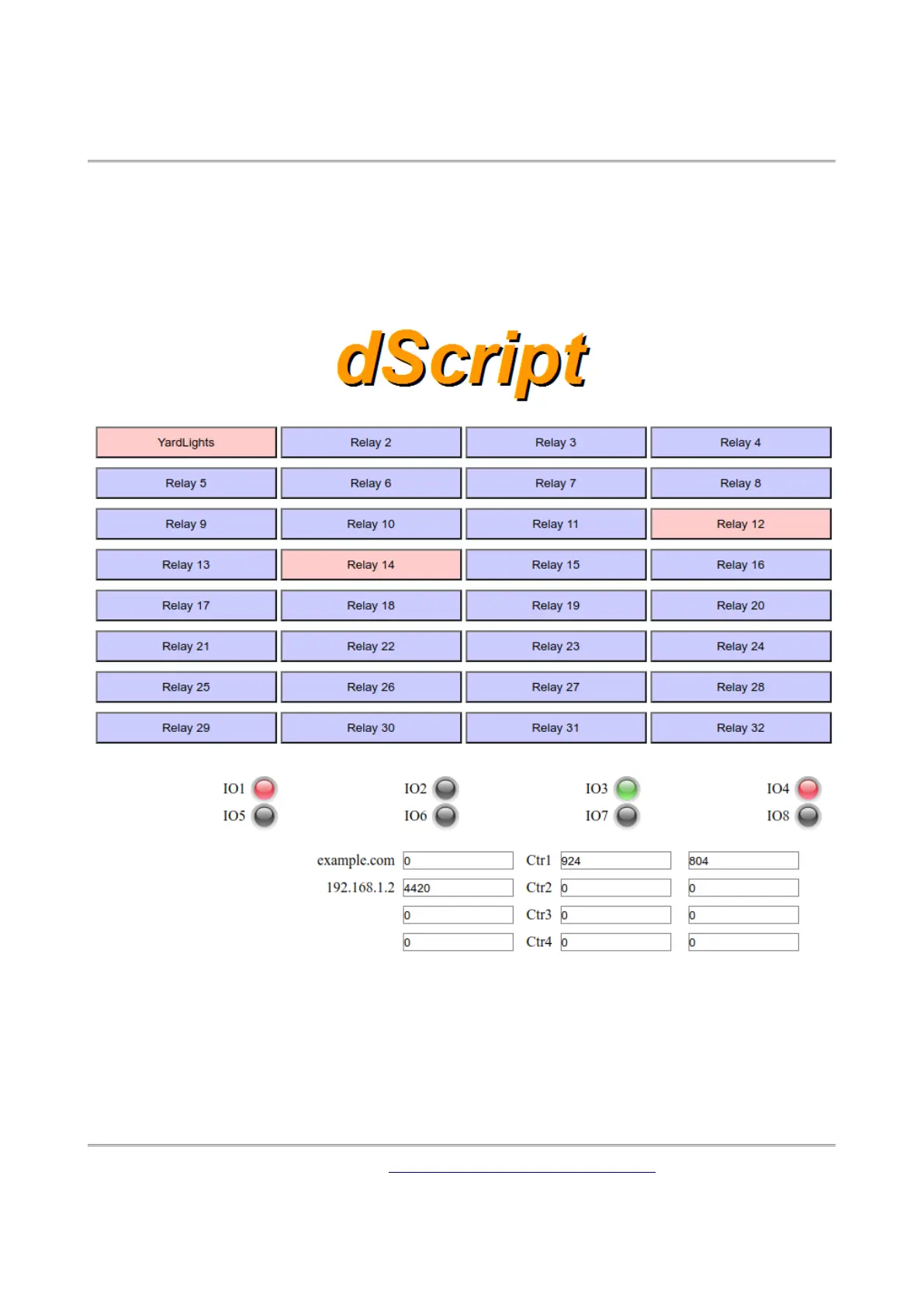

The last tab in the configuration pages takes you directly to the application page so you can
quickly see the results of your configuration changes.
The I/O indicators show grey when the I/O is inactive. When an active input is applied they
show green. Red indicates an active output from the module.
The I/O's are clickable just like the relay buttons to turn them on and off.
The first 4 of the 8 counters are shown, together with their capture registers.
