dS2824
dS2824 User Manual v4.12

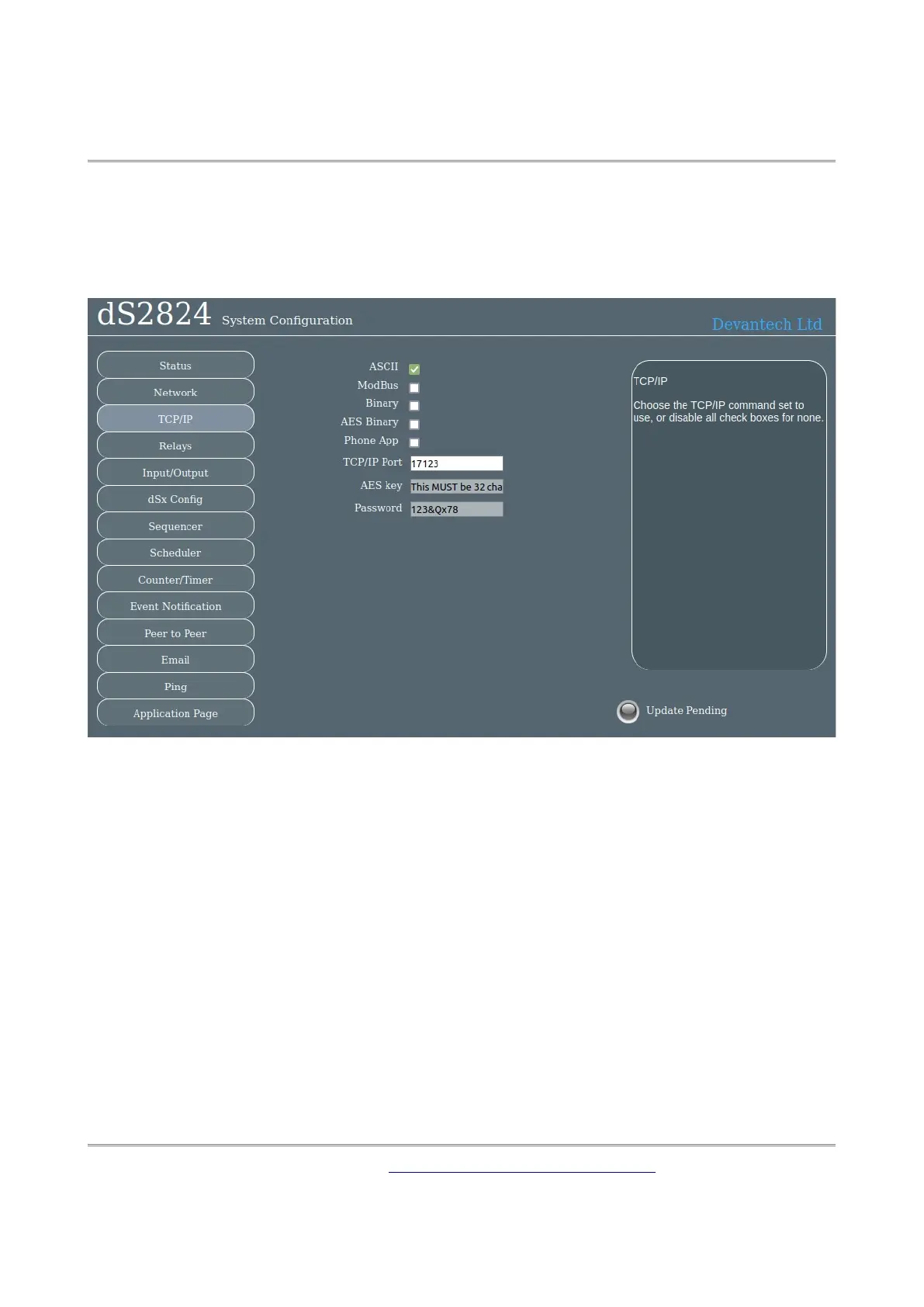

TCP/IP page
The TCP/IP tab allows you to select one of three command sets to control the module. These
are independent of, and separate to the HTML webpage control.
Clicking on one of the four check boxes will select that command set. Only one command set
may be selected. You can disable all TCP/IP command sets by clicking on an already selected
box.
The ASCII command set is text based. You can use any program that can send text over TCP/
IP. We use PuTTY in raw mode. The Binary command set operates in a similar way to our
ETHxxx range of boards (but uses different commands), by sending binary commands to the
module. AES Binary adds encryption. Note the AES key MUST be 32 bytes long. We have test
applications written in C# and Java to demonstrate AES encryption.
Phone App confiqures the module for control with our “IO network 2” app, available on
iTunes/Play store. Password is an 8 character password used only with the App. Change this to
a password of your choice and use the same password on your phone.
Copyright © 2016-2021, Devantech Ltd.
All rights reserved.
www.robot-electronics.co.uk
15
