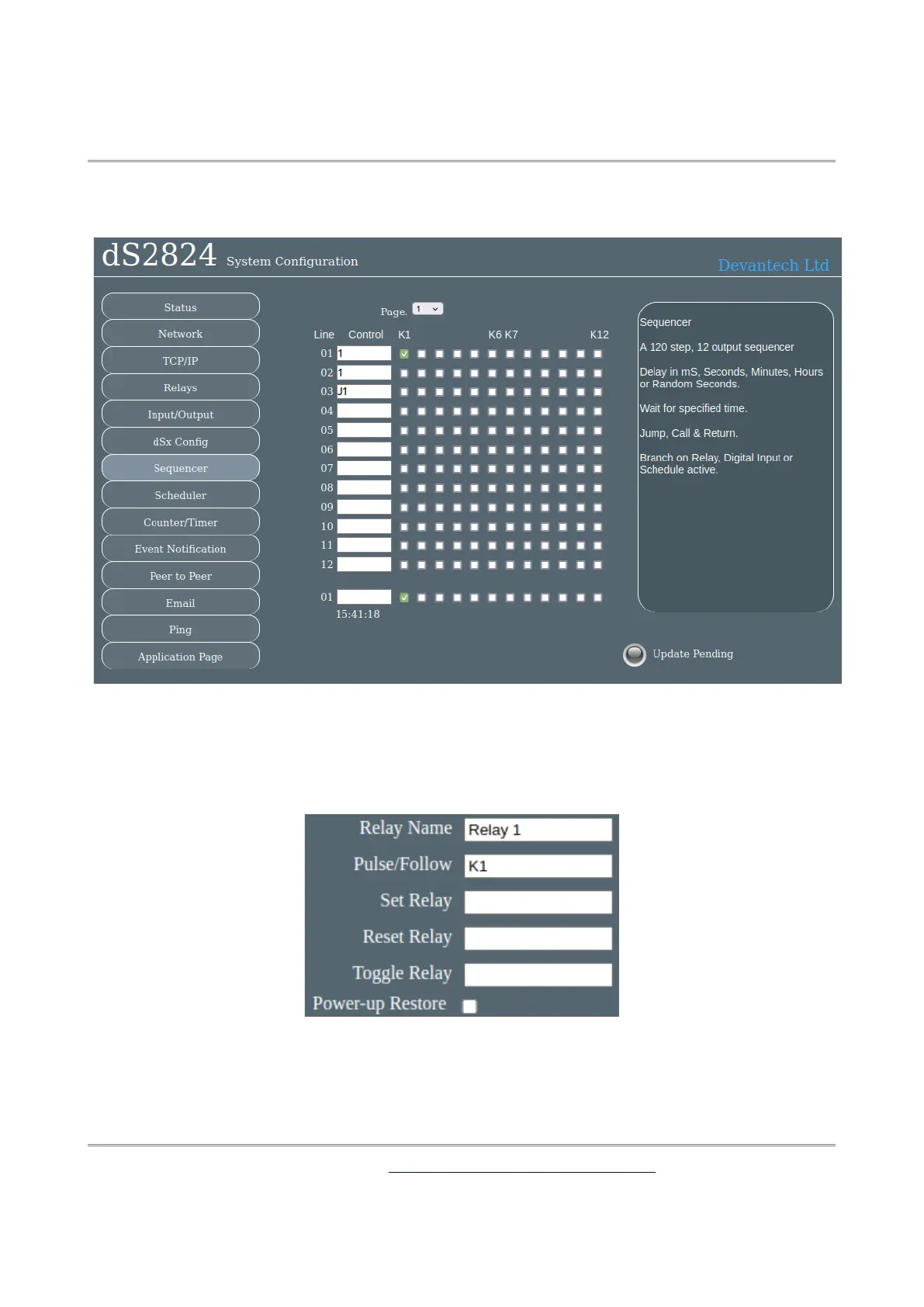

The sequencer runs a continuous loop of up to 120 steps. At each step you can specify a time
delay and the outputs. The K1 – K12 outputs are updated and the start of the delay time. The
example above shows the simplest sequence possible. At line 01 it delays 1 second and turns
on the K1 output. Line 02 delays 1 second and turns off the K1 output. Line 03 jumps back to
line 1 and the cycle repeats forever.
The K1 – K12 outputs may be used in boolean equations to control relays, send emails, etc.
Placing K1 in a relays Pulse/Follow box will make the relay follow the K1 output, in this case
pulsing the relay on and off every two seconds.
