dS2824
dS2824 User Manual v4.12
mapping by position.

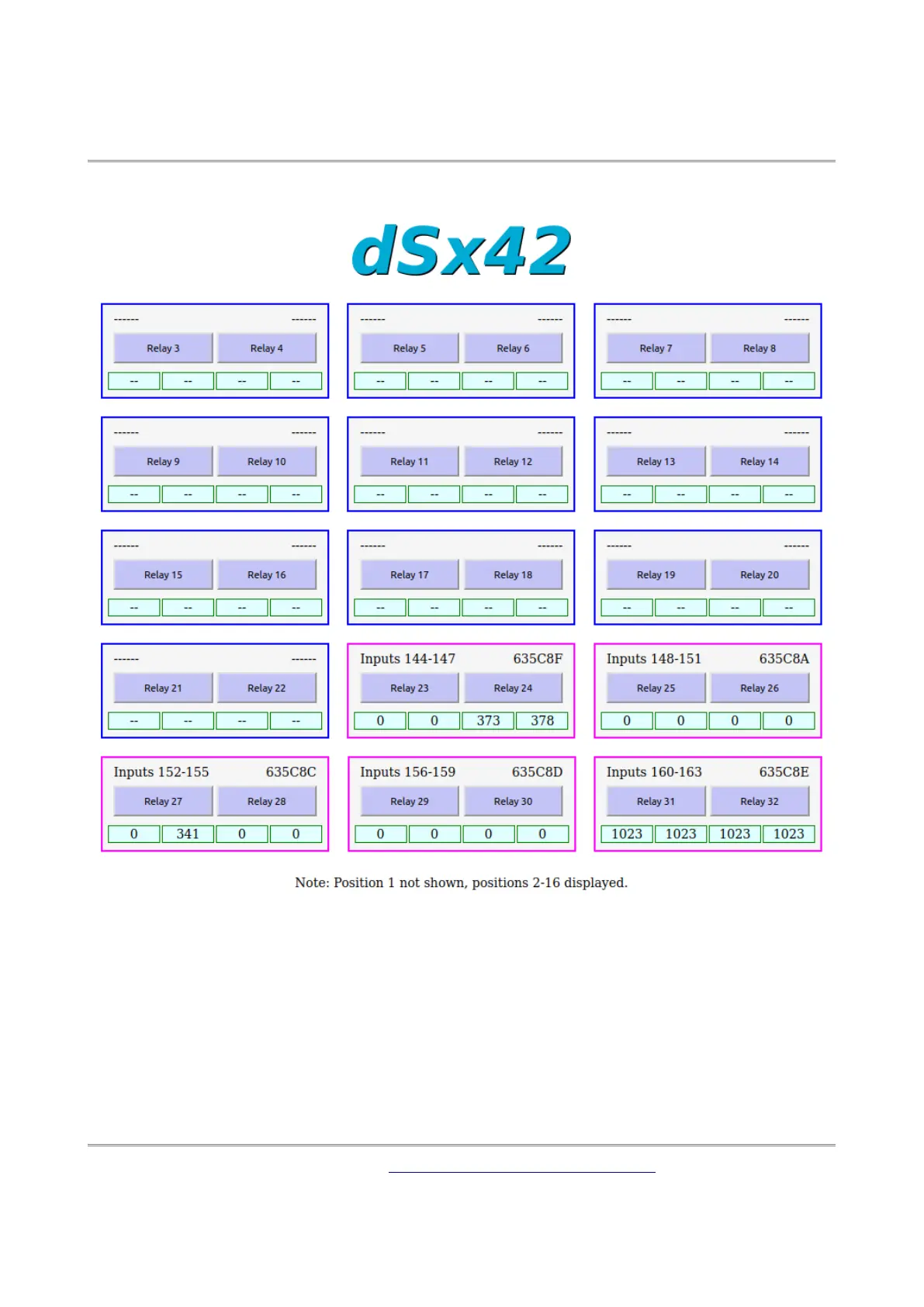

Mapped dSx42 modules are shown with a magenta outline. The input range for that module
and its UID is displayed. The inputs received from the dSx42 are shown as an analogue value.
Digital inputs are displayed as zero or 1023 (or close to that).
The relay buttons will toggle the relays, even where no dSx42 is present, because they are the
hosts virtual relays.
Position 1 is not shown because all dScript modules have relays there and inputs 100 & 101
are not available so you will probably not use that position, but you can if you need to.
