DS2400Q QAM Analyzer Operation Manual
DEVISER 96 DS2400Q
4.4.5.1 Battery Voltage

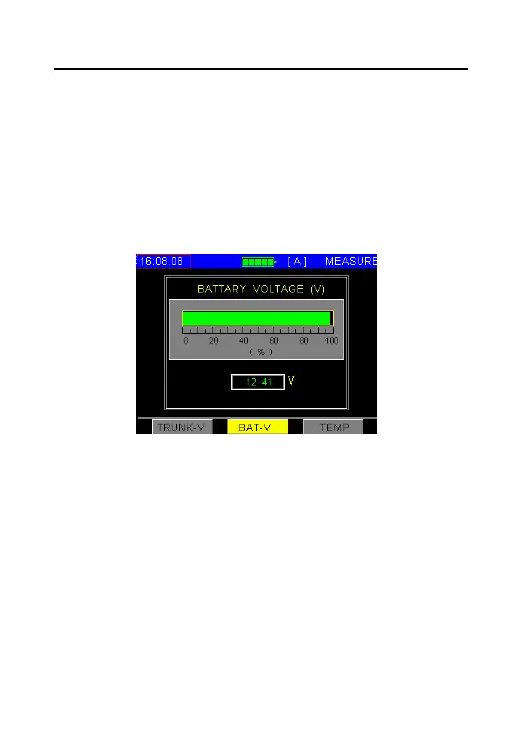

As Figure 4-4-7, battery voltage will be displayed
on the screen. When it is lower than 10.6V, this
meter will remind that it will shut down
automatically soon.
Figure 4-4-7
4.4.5.2 Trunk Voltage(AC LINE)
This meter will automatically judge whether it is
AC or DC in the trunk, and display the trunk
voltage on the screen as Figure 4-4-8.
