DS2400Q QAM Analyzer Operation Manual
DEVISER 20 DS2400Q

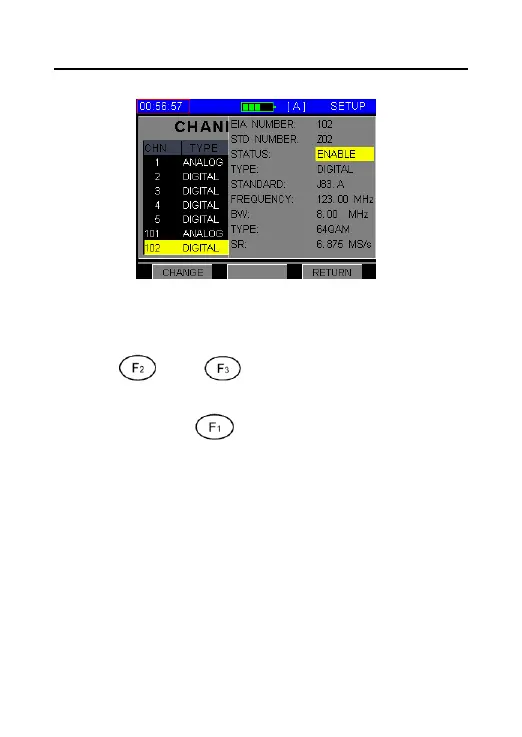

Figure 3-3-4
Press or to select the channel
parameters, if the selected parameter could be
changed, press to change. As the figure
3-3-4, ensuring the STATUS is enable, the
channel will be enabled.
3.3.1 Analogue channel measurement
If the current channel is a valid analogue channel,
The Level function will display as Figure3-3-5,
three test results are displayed in the screen,
include Video, audio and V/A.
