DS2400Q QAM Analyzer Operation Manual
DEVISER 40 DS2400Q

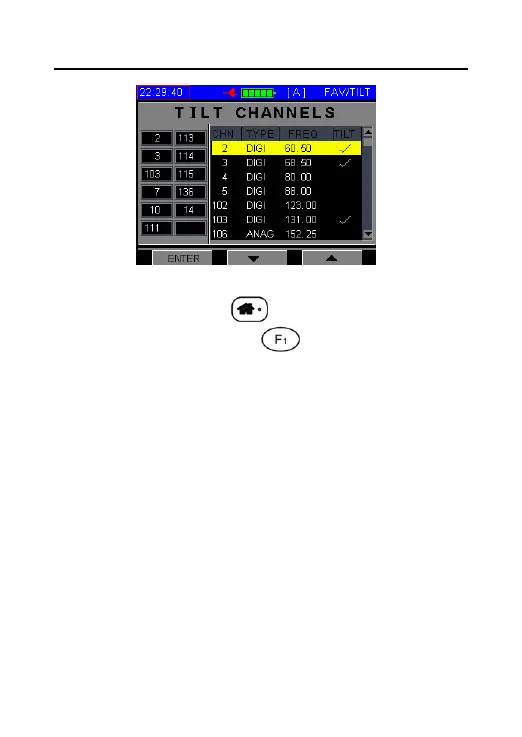

Figure3-6-2
After selected，Press to return to main menu
interface, and press the again to enter the
Tilt/Level List measurement. Now the Tilt
measurement can be continued.
3.6.1 Tilt Mode
In tilt test interface, the channels will be displayed
as histogram, and test result will be displayed at
the bottom of screen as Figure 3-6-3.
