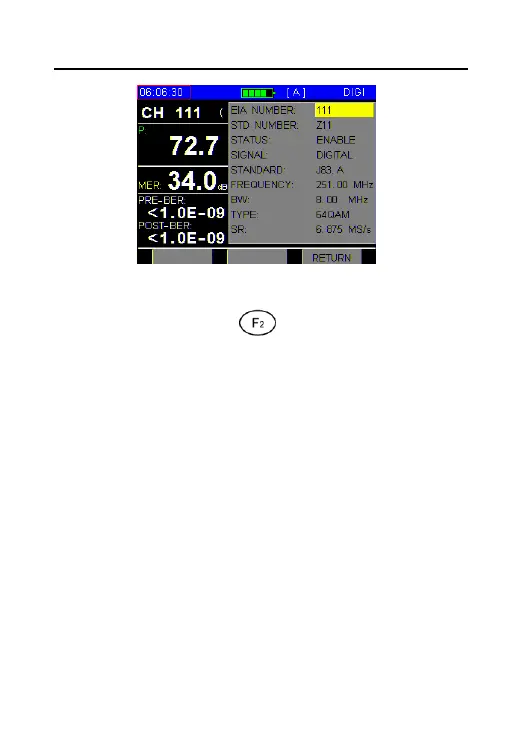

Figure 3-3-11
ONE CHN/ADJ CHN ( ): The user can switch
from both of two display mode (One channel and
Three channels):
One channel mode: The histogram shows the
video and audio of current channel only.
Three channels mode: The histogram shows the
video and audio of current channel, and also show
the level of two adjacent channels with gray
color ,if the adjacent channels are valid. Refer to
figure 3-3-12.
