Devolo dLAN 1200+ WiFi ac User Manual

22 Initial use
devolo dLAN 1200+ WiFi ac
Integrating additional dLAN 1200+ WiFi ac adapt-
ers into a WiFi network
햶 Establish the WiFi connection with your laptop,
tablet or smartphone by entering the previously
noted WiFi key as the network security key.
For the dLAN 1200+ WiFi ac to show the same WiFi
configuration as your WiFi router, you can apply the
WiFi access data at the touch of a button. The WiFi
Clone function can be enabled in different ways:
Enabling WiFi Clone at the touch of a button
햷 First press the encryption button with the
home icon on the front side of
dLAN 1200+ WiFi ac and then press the WPS but-
ton of the WiFi router with the access data you
want to apply.
or

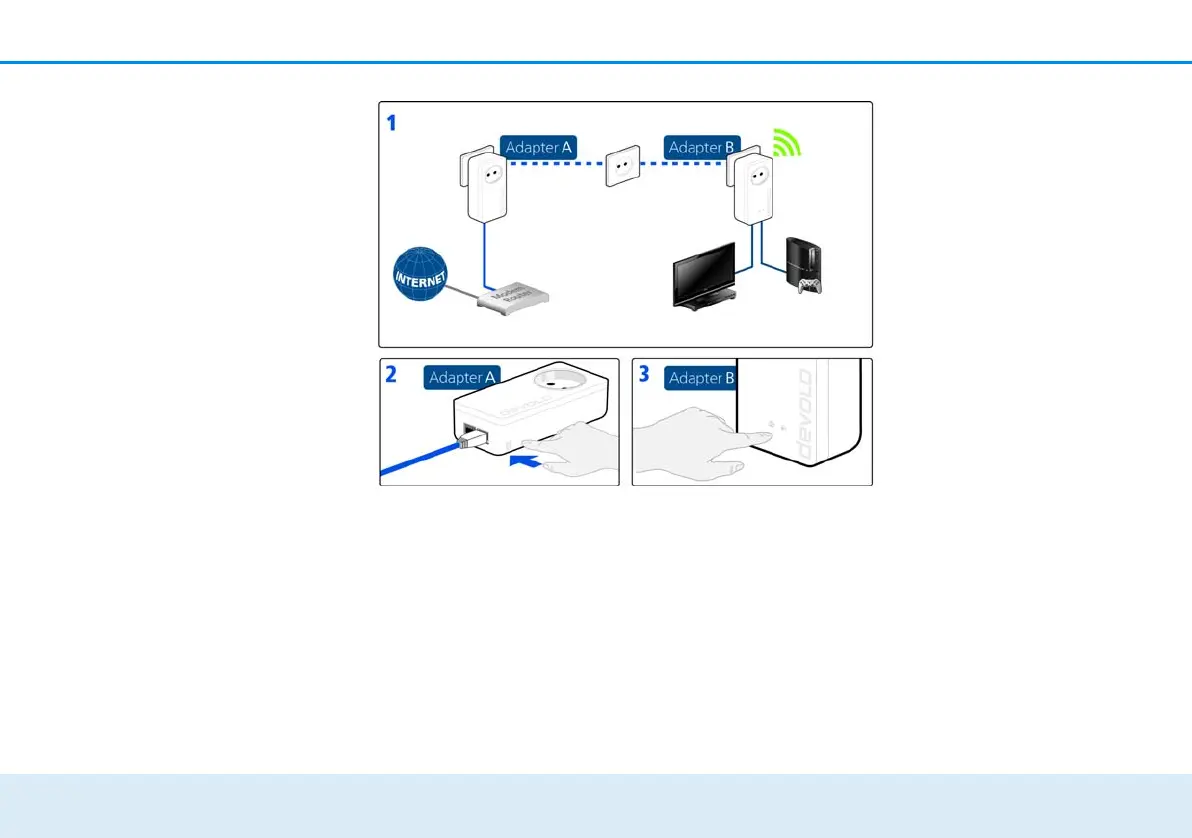

Fig. 6

Devolo dLAN 1200+ WiFi ac Specifications

General

Ethernet LAN	Yes
Wi-Fi standards	802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA2, 128-bit AES, WPS-PBC, WPA, WPS-PIN
Networking standards	IEEE 802.3u, IEEE 802.11a, IEEE 802.11n, IEEE 802.3x, IEEE 802.11ac, IEEE 802.11b, IEEE 802.3, IEEE 802.3az, IEEE 802.11g, IEEE 802.3ab
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	1200 Mbit/s
Maximum operating distance	400 m
Ethernet LAN interface type	Gigabit Ethernet
Certification	CE Class B (EU, CH, NO)
Product color	White
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	196-250 V
AC input frequency	50 Hz
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	40 mm
Width	152 mm
Height	76 mm
Package depth	187 mm
Package width	115 mm
Package height	80 mm
Package weight	120 g
