WARNING
EXPANSION ANCHORS ARE NOT
RECOMMENDED FOR USE IN CONCRETE
PEDESTALS, BECAUSE THE ANCHORS
ARE TOO CLOSE TO AN EDGE, CAUSING
IT TO BREAK OUT.
ANCHORING OPTIONS:
1. Cast in place bolts headed by square fish plates. See Machine Mounting Detail Figures 1-
1 thru 1-3 for exact washer model.
a. Or after concrete has completely cured:
2. Use Hilti Adhesive System ‘HAS’ Rods and adhesive capsules. See Machine Mounting
Detail Figures 1-1 thru 1-3 for exact washer model.
3. Or use an equivalently rated epoxy or acrylic adhesive anchor.
a. As an installation aid, the anchor pattern can be found on the back panel of the

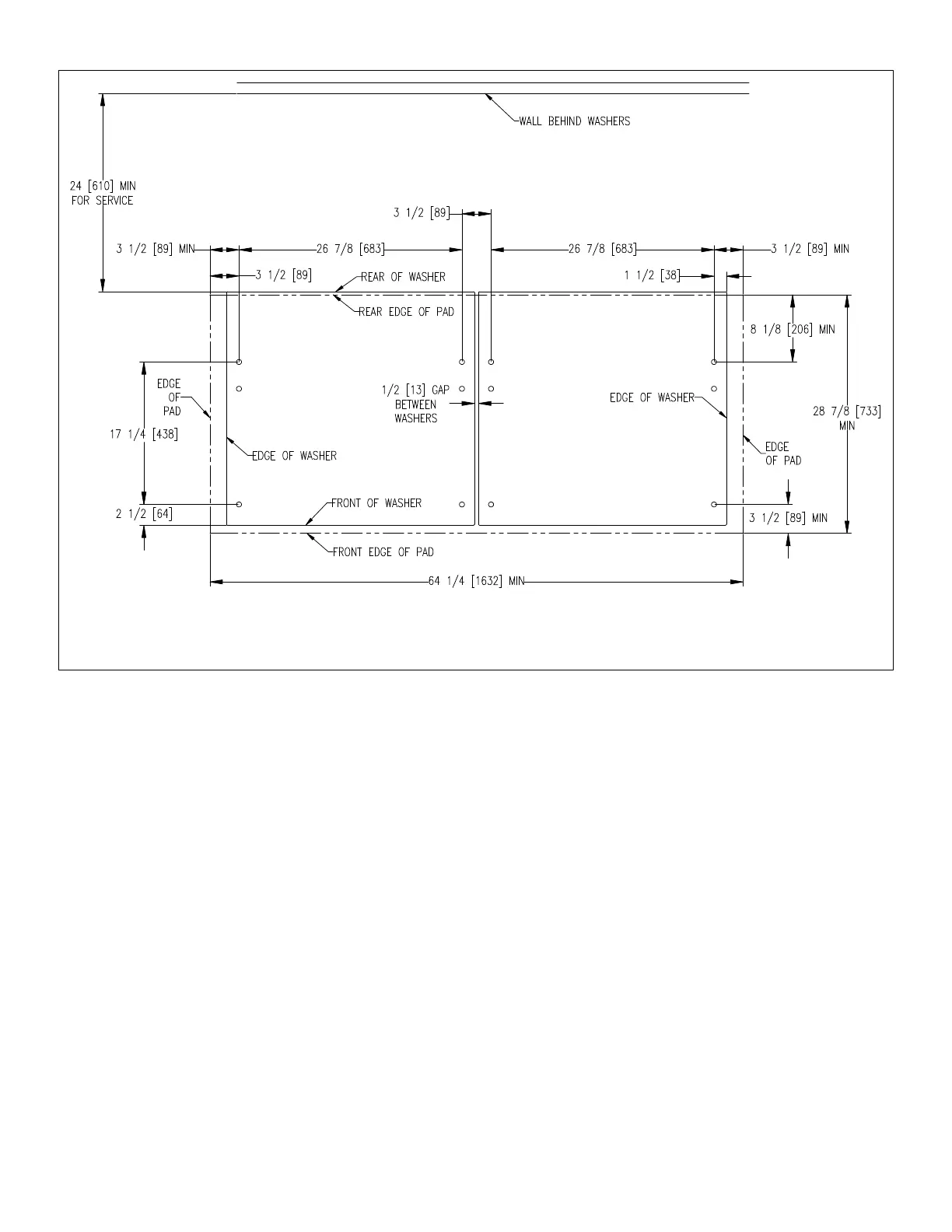

washers and can be used as a template. Compare panel to the mounting
dimension drawing to find the right holes. Example:

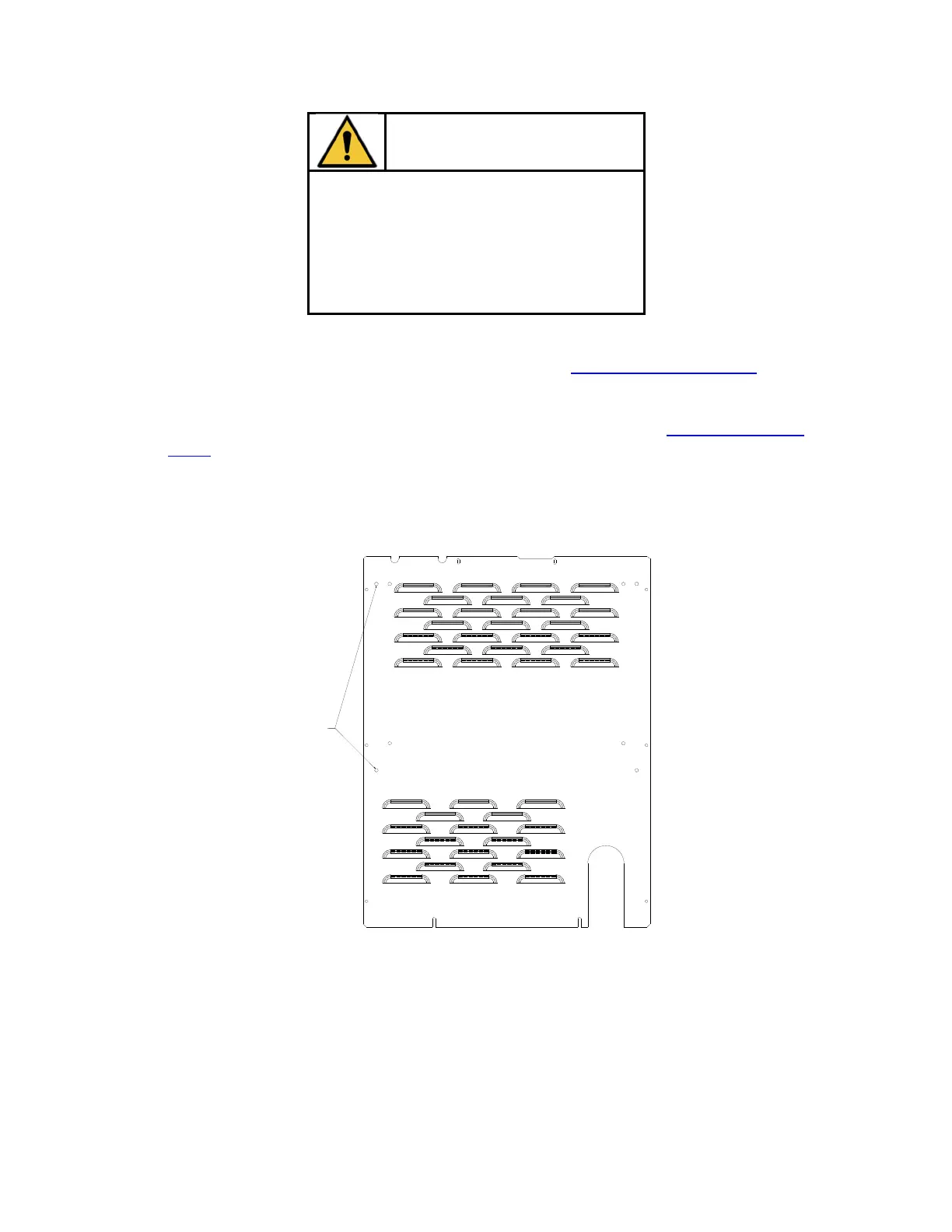

Figure 7-6 Anchor Paern
ANCHOR
PATTERN
