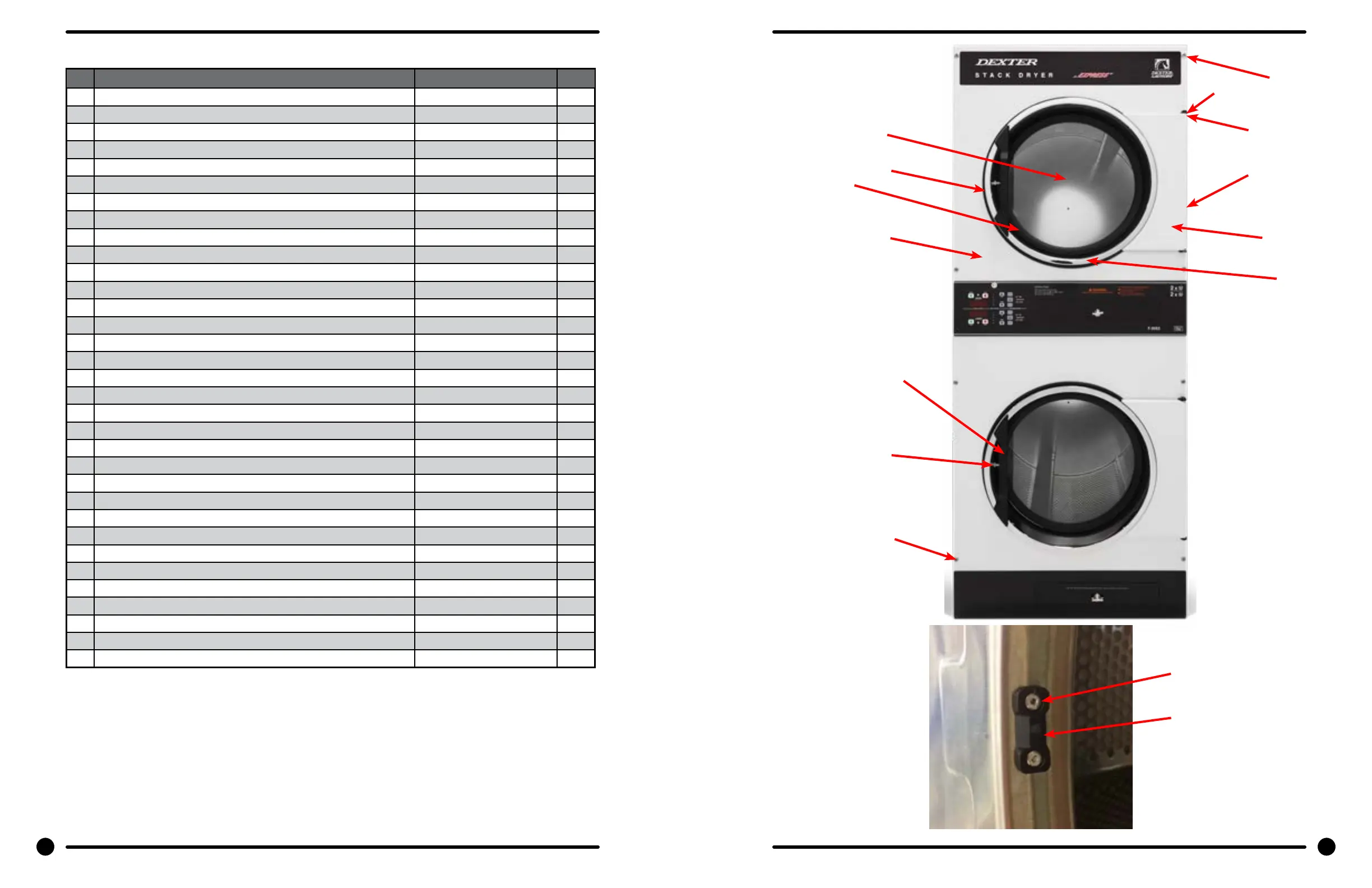

Dryer Cabinet Group
Description T-20X2 QTY
1 Panel Assy., Front- Upper (SS) 9989-610-004 1
* Insulation Front Panel, half moon (top) 9277-064-001 1
* Insulation Front Panel, half moon (bottom) 9277-064-002 1
2 Screw, FLHDCR, 10B x- 1 3/4 9545-008-014 4
3 Washer, Finish, #10 8641-585-001 4
* Nut, Spring 8640-399-001 4
* Hinge ,Backup Plate 9982-392-001 1
* Screw, Countersink, 10-32X 1/2 9545-012-003 2
4 Strap, Hinge (SS/Black) 9544-074-002 2
* Screw, Hinge to Panel 9545-012-028 4
* Door Assy., Loading Complete-Chrome/BLK/SS 9960-315-002 1
5 Door Assy., Loading-Chrome(ring only) 9960-314-003 2
5 Door Assy, Loading-Blk (Ring Only) (after serial D1.22290.005) 9960-314-004 2
6 Plate Assy., Hinge (SS) 9982-393-001 1
* Screw, Hinge to Door 9545-012-015 4
* Nut, Hinge to Door 8640-413-002 4
* Cover, Hinge Plate 9074-377-002 1
* Screw, Phillips-10B x 3/8 9545-008-010 2
7 Glass, Door 9212-002-005 1
8 Gasket, Glass Black 9206-413-003 1
* Support, Door Glass 9548-117-000 1
* Tool Install Dryer Door Gasket 8545-064-001 1
9 Gasket, Outer Rim Black 9206-420-006 1
10 Handle, Loading Door 9244-092-001 1
* Screw, Handle 1/4-20 x 3/8 9545-018-017 2
11 Stud, Door Catch, 3/4 9531-033-002 1
12 Nut, Hex 8640-413-001 1
13 Nut, Acorn 8640-413-003 1
14 Catch, Loading Door 9086-015-002 1
15 Pop Rivet for mtg. catch 8638-190-009 2
16 Screw, Door to Hinge Strap (Special Black Type) 9545-052-001 1
17 Washer, Fiber 8641-436-003 1
* Cabinet Touch Up Paint (White) 9472-001-013 1
8
7
Cabinet Group
1
2, 3
4
11, 12,
13
14
15
17
10
2, 3
6
5
9
16
64 65
Part # 8533-108-001 10/22 Part # 8533-108-001 10/22
Electric Heated
Parts Data
Bearing Housing
& Tumbler Group
