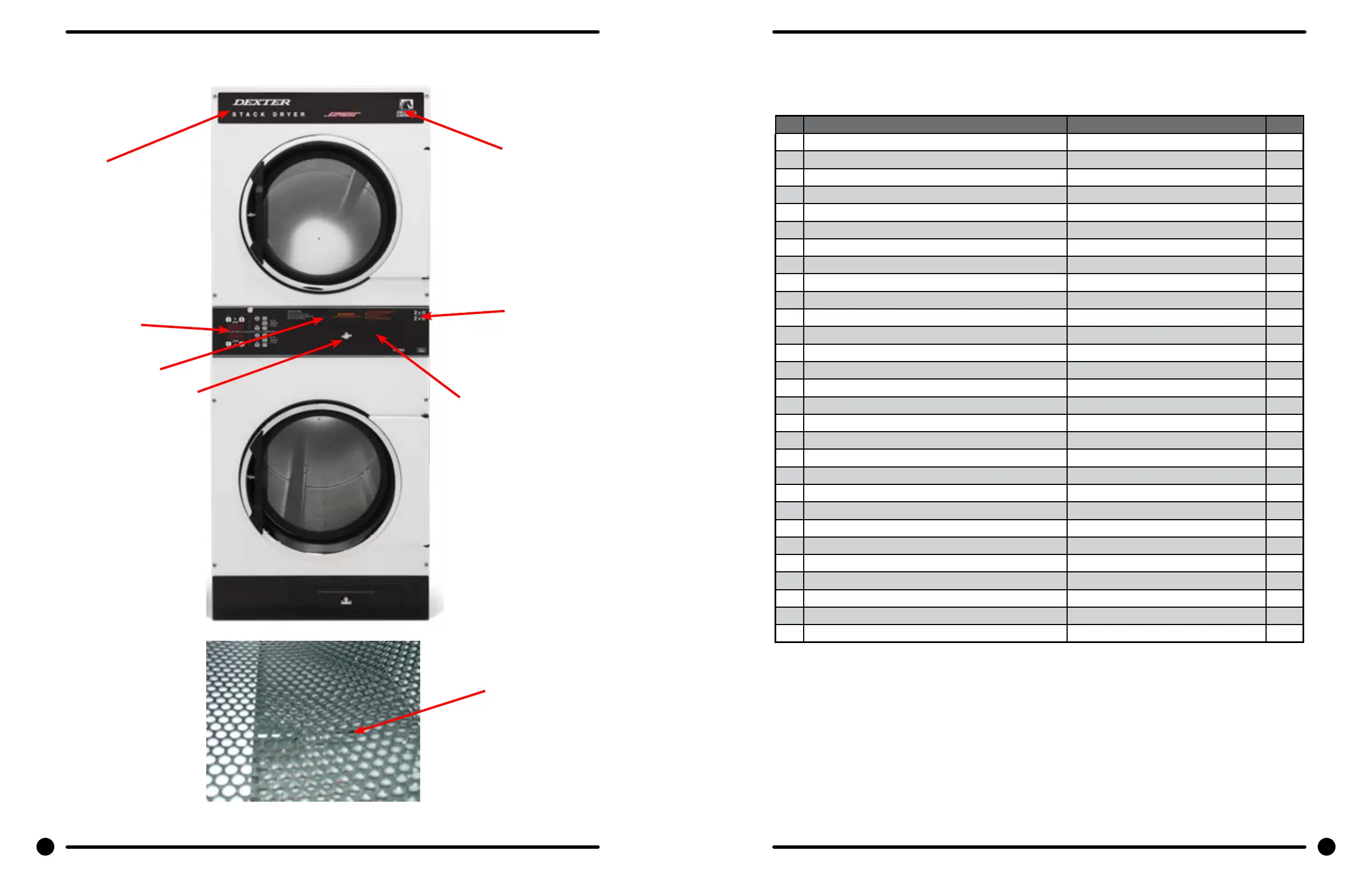

Dryer Cabinet Group
24
25
27
21
22
23
20
22
Cabinet Group Continued
Key Description T-20X2 QTY
20 Escutcheon 9994-044-001 1
21 Trim, Overlay-Upper Black 9435-059-001 1
* Screw, #4-40 x 3/16 9545-020-009 12
22 Nameplate Stack Dryer Express Black 9412-251-001 1
* Lint Drawer Assembly Black 9866-008-005 1
* Drawer, Front PTD 9974-016-002 1
* Washer, Flat, #10 8641-581-006 2
* Washer, Curved-Spring 8641-569-004 2
* Nut, 10-32 8640-413-007 2
23 Overlay Trim, Lint Drwr-Black 9435-053-003 1
* Felt Seal (back of lint screen assembly) 9532-074-004 1
* Lint Screen Assembly ONLY (no front) 9805-036-002 1
* Replaceable Lint Screen Only 9555-057-011 1
24 Lock-Door Service Thumb Turn 8650-026-002 1
* Cam, Lock 9095-044-001 1
* Lint Screen Strap Hold Down Screws 10Bx 1/4 9545-008-001 32
25 Controls Assy, 24VAC, Black 9857-187-003 1
* Harness, Electronic Control 9627-885-003 1
* Control Board 9471-017-001 1
* Harness, Heat Sensor 9627-886-001 1
* Wire Nut Connector Grey 8640-276-002 2
* Membrane Switch 9801-105-001 1
27 Sensor Temp/Bracket Control 9501-006-002 2
* Cover, Cabinet (Top) 9074-374-001 1
* Insulation Cabinet Cover 9277-041-028 1
* Screw-hxwshrundrcuthd,10abx3/8 9545-008-024 14
* Stack Dryer Trunion Puller 9732-243-001 1
* Leg, Leveling 1/2” 8544-006-001 4
* Leveling Leg Wrench 8545-061-002 1
66 67
Part # 8533-108-001 10/22 Part # 8533-108-001 10/22
Electric Heated
Parts Data
