Dexter Laundry DN20X2 - Control Assembly Group Parts

78 79
Part # 8533-108-001 10/22 Part # 8533-108-001 10/22

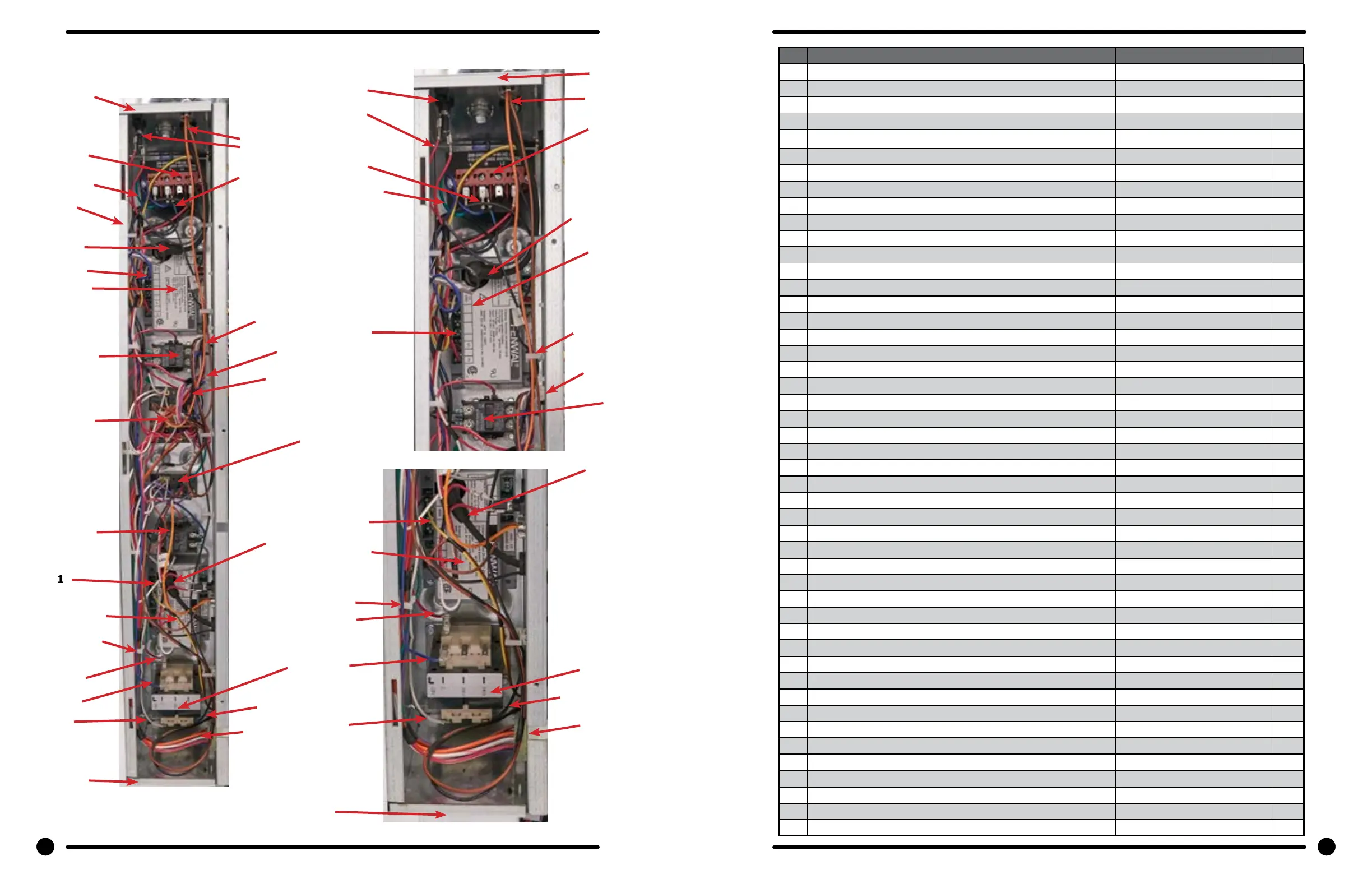

Control Assembly Group
10
16
6
13
4
15
8
2
18
19
5
13
14
23
11
6
16
4
7
9
8
8
11
12
12
13
14
18
17
9
14
5
15
10
8
21
7
20
1
2
3
21
22
3
19
24
24
17
18
22
23
Key Description T-20X 2 QTY
* Control, Rear 9857-250-001 1
1 Wrapper-controlbox 9636-219-001 1
2 Panel-upper,controlbox 9454-974-001 1
3 Panel-lower,controlbox 9454-973-001 1
* Screw-hxwshrundrcuthd,10abx3/8 9545-008-024 6
4 Wireasy-grn/yel,7" 8220-137-002 1
* Screw-hxwsrhdsl,10-32ttx1/2grn 9545-008-027 1
* Lockwasher-exttooth,#10 8641-582-006 1
5 Terminalblockassembly-power 9897-026-002 1
6 Terminalblockassembly-power 9897-026-001 2
* Screw-panhdcr,#8abx1/2 9545-045-012 6
7 Transformer 8711-013-001 1
* Screw-hxwshrundrcuthd,10abx3/8 9545-008-024 4
8 Controlsassy-ignition 9857-182-001 2
* Screw-hxwshd,10abx3/4 9545-008-018 4
9 Wireasy-highvoltage,#8,181/2" 9631-403-008 1
10 Wireasy-highvoltage,#7,291/4" 9631-403-009 1
11 Wiringharness-ignitioncontrol Upper 9627-867-005 1
12 Wiringharness-ignitioncontrol lower 9627-867-006 1
* Plug-plastic,7/8" 9456-041-006 2
* Bushing-wire,7/8 9053-067-002 4
* Connector-conduit,3/8",str 8653-068-003 1
13 Fuseholderassembly 9200-001-002 3
* Fuse-1.5a,fast,1/4x1-1/4 8636-018-001 2
* Fuse-2.5a,fast,1/4x1-1/4 8636-018-004 1
14 Relay-motor,30amp,24vac 5192-299-002 2
* Screw-panhdcr,#8abx1/2 9545-045-012 4
* Wireasy-red/blk,#9,14" 8220-062-036 1
* Wireasy-red/wht,#10,14" 8220-062-037 1
* Wireasy-wht,#11,14" 8220-062-038 2
15 Bracket-powerblock 9029-202-001 1
* Screw-hxwshrundrcuthd,10abx3/8 9545-008-024 2
* Terminalblockasy-power,4pole 9897-035-001 1
* Screw-hxwshrundrcuthd,10abx3/8 9545-008-024 2
* Strip-marker,terminal 9558-029-003 1
16 Wiringharness-power,main,fork 9627-859-003 1
17 Wiringharness-mainextension 9627-863-001 1
18 Stando-wiresaddlew/arrowhead 9527-007-001 22
19 Wiringharness-motorext,w/fork Lower 9627-864-006 1
20 Wiringharness-motorextension Upper 9627-864-011 1
* Screw-pnhdcr,6bx3/8 9545-031-005 4
* Screw-hxwsrhdsl,10-32ttx1/2grn 9545-008-027 2
* Lockwasher-exttooth,#10 8641-582-006 2
21 Wireasy-red,37" 8220-095-011 1
22 Wireasy-blu,42" 8220-095-012 1
23 Wireasy-wht,22" 8220-095-048 1
24 Wireasy-blk,#30,45" 8220-095-046 1
