Dexter Laundry DN20X2 - Section 6: Parts Data; Kits, Assemblies, & Common Parts List

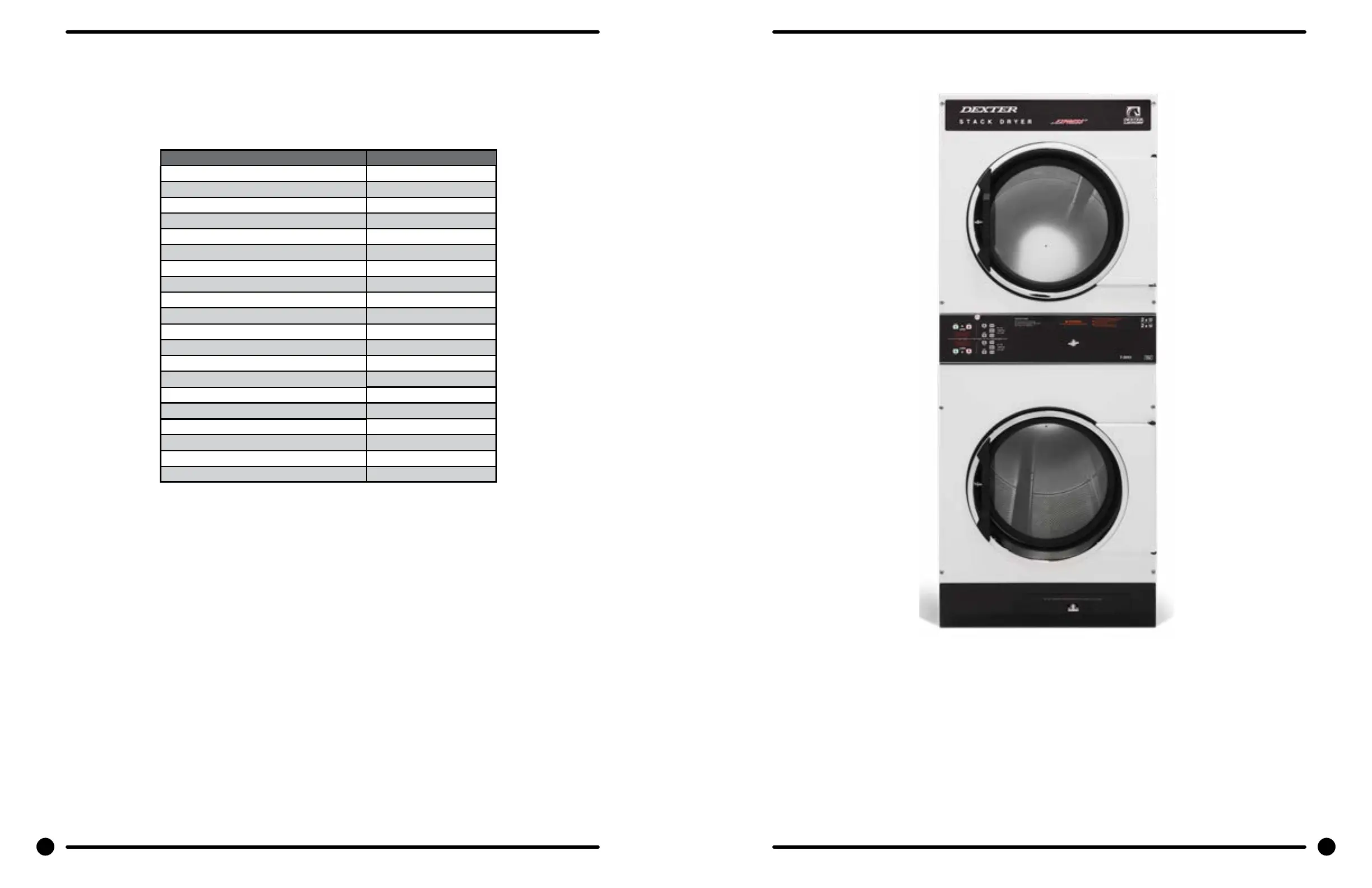

Kits, Assemblies, & Common Parts
Description T 20x2
LP to Natural Conversion Kit for White Rodgers 9732-142-004
Kit - A to C series Conversion, Black, 24v 9732-307-004
Temperature Probe 9501-006-002
Controls 9857-187-003
Ignition Control Box 9857-251-001
Electrode Assembly, Ignition 9875-002-003
Thermostat, Hi-Limit 9576-203-002
Termostat, Overtemp 9576-207-006
Fuseholderassembly 9200-001-002
Fuse-1.5a,fast,1/4x1-1/4 8636-018-001
Fuse-2.5a,fast,1/4x1-1/4 8636-018-004
Motor Run Relay 5192-299-002
Transformer, Ignition 8711-013-001
Lint Screen Assembly (No Front) 9805-036-002
Air Flow Switch 9536-461-009
Motor Belt 9040-076-012
Tumbler Belt 9040-073-013
Tension Arm Complete 9861-022-001
Spider/Trunnion 9568-018-001
Door Handle 9244-092-001
62 63
Part # 8533-108-001 10/22 Part # 8533-108-001 10/22
