Dexter Laundry DN20X2 - Rear View Component Identification

Description T-20X2 QTY
* Switch Assy, Air Flow 9801-095-001 1
1 Switch, Air Flow 9539-461-009 1
2 Bracket, Switch- Air Flow 9029-174-001 1
3 Actuator, Switch 9008-007-001 1
4 Pin, Cotter 9451-169-0 02 1
5 Screw 4-40 x 5/8” 9545-020-001 2
* Nut, Special Twin .#4-40 8640-401-001 1
* Shield, Switch 9550-169-003 1
* Screw 10 Bx 1/4” 9545-008-001 3
6 Motor, Drive 9376-332-001 2
* Run Capacitor 5191-108-004 2
* Start Capacitor 5191-109-004 2
* Pulley-motor,60hz 9453-185-001 1
* Screw-set,5/16-18x1/2 9545-028-013 1
* Impeller (W/Setscrew) 9278-045-001 1
7 Plate, Motor Mtg 9982-390-002 1
* Bolt 3/8” - 16 x 3/4” 9545-029-008 1
* Lockwash Spring 3/8 8641-582-003 1
8 Screw, Motor to Plate Screw-hxgwhzlk,5/16-
18x5/8
9545-014-004 4
* Nut-hextwinwhzlk,5/16-18 8640-400-003 4
9 Nut 1/4x20 Motor Plate to Cabinet 8640-414-007 7
10 Clamp-cable,3/4 8654-125-004 2
* Screw-hxhdsltdmach,12abx1/2 9545-048-001 2
11 SupportAssy, lntermed. Pulley 9991-053-002 1
12 Bolt, Rd Hd 3/8-16 x 1 1/4 9545-029-010 3
13 Bolt, 3/8-16 x 1 1/2 9545-029-012 1
12 Nut Flange Wiziock 3/8” - 16 8640-415-004 3
* Washer, Flat 8641-581-035 1
14 Arm Assy-Tension, Complete 9861-022-001 1
* Washer, Flat 8641-581-035 1

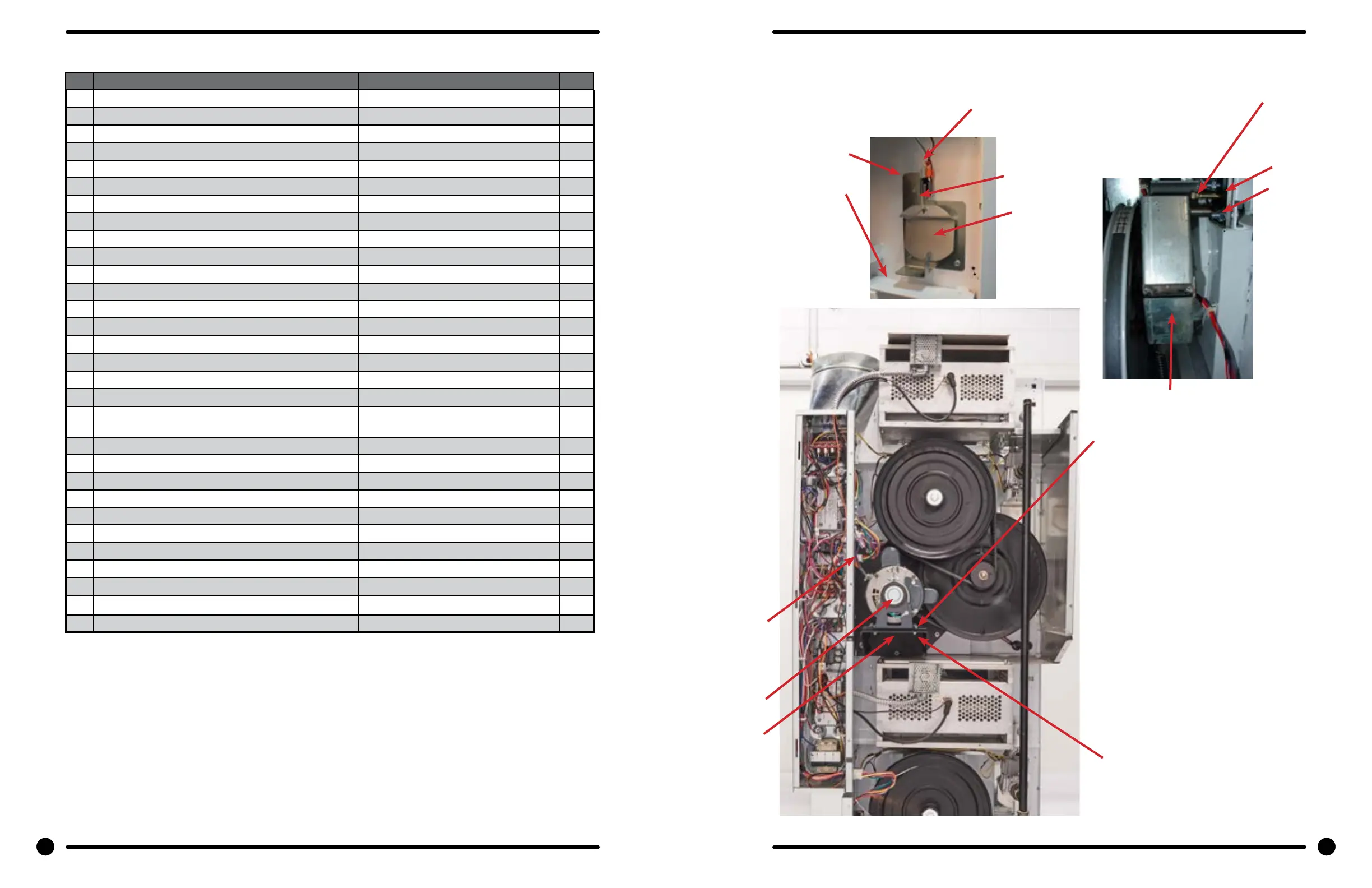

Rear View Photos
14
12
2
5
1
6
8
7
11
4
3
13
10
9
68 69
