Description T-20X2 QTY
14 Arm Assy-Tension, Complete 9861-022-001 1
* Washer, Flat 8641-581-035 1
15 Ring-Retaining 9487-200-003 1
16 Pulley Assy, Intermediate with bronze ange bear-
ing
9908-053-003 1
* Bearing - Bronze Flange 9036-145-002 1
* Spacer-Shaft (See Tumbler Group for Expandrd
View)
9538-164-001 1
* Tolerance Ring 9487-234-005 1
17 Pulley, Driven 9908-052-002 1
18 Washer -Flat 8641-581-026 1
18 LockWasher - IntTooth, 1/2” 8641-582-016 1
18 Screw, 1/2-13x1 1/4 9545-017-009 1
19 Belt, Drive- Motor 9040-076-012 1
20 Belt, Drive- Tumbler 9040-073-013 1
21 Spring, Tension 9534-319-002 1
22 Chain, Tension 9099-012-011 1
23 Hook, Tension 9248-022-002 1
* Damper Inside Duct Exhaust 9125-009-001 1
24 Pin, Damper Hinge 9451-146-007 1
* Box-duct.lower 9041-113-0 01 1
* Nut, Spring 8520-141-000 1
* Screw #10B x 1/2 9545-008-026 3
* Cover Duct Upper 9074-382-001 1
* Base Duct 9047-121- 001 1
* Screw 10ABx 3/8” 9545-008-024 40
26 Impeller, W/Set Screws 9278-045-001 1
27 Pulley, Motor 9453-185-001 1
28 Bracket for Wire Harness Under Burner Housing 9029-305-001 1

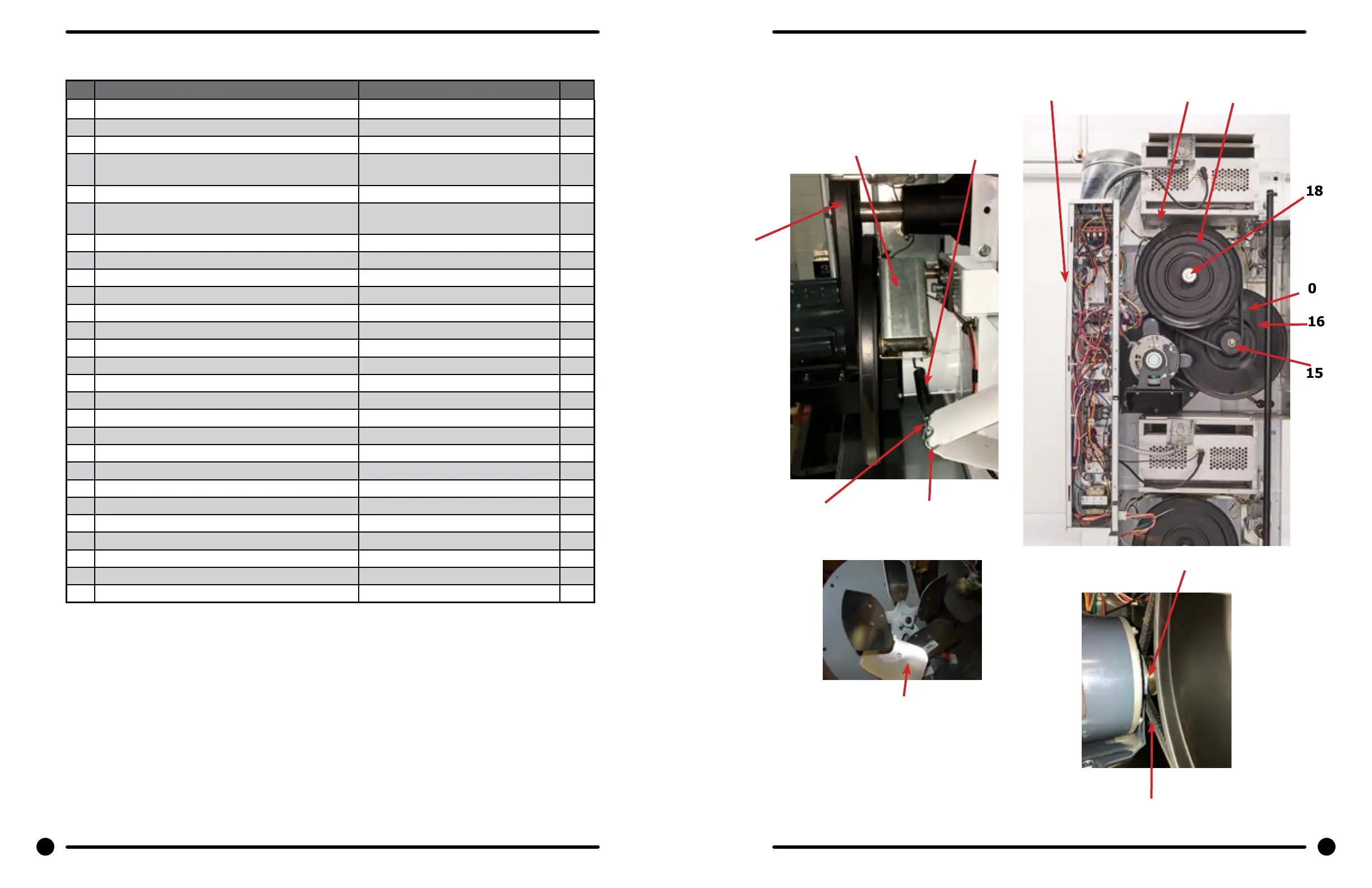

Rear View Photos
17
14
21
18
27
20
19
15
26
22
20
16
23
24
28
70 71
Part # 8533-108-001 10/22 Part # 8533-108-001 10/22
Electric Heated
Parts Data
Bearing Housing
& Tumbler Group
