Dexter Laundry DN20X2 - Dryer Burner Housing Group Parts

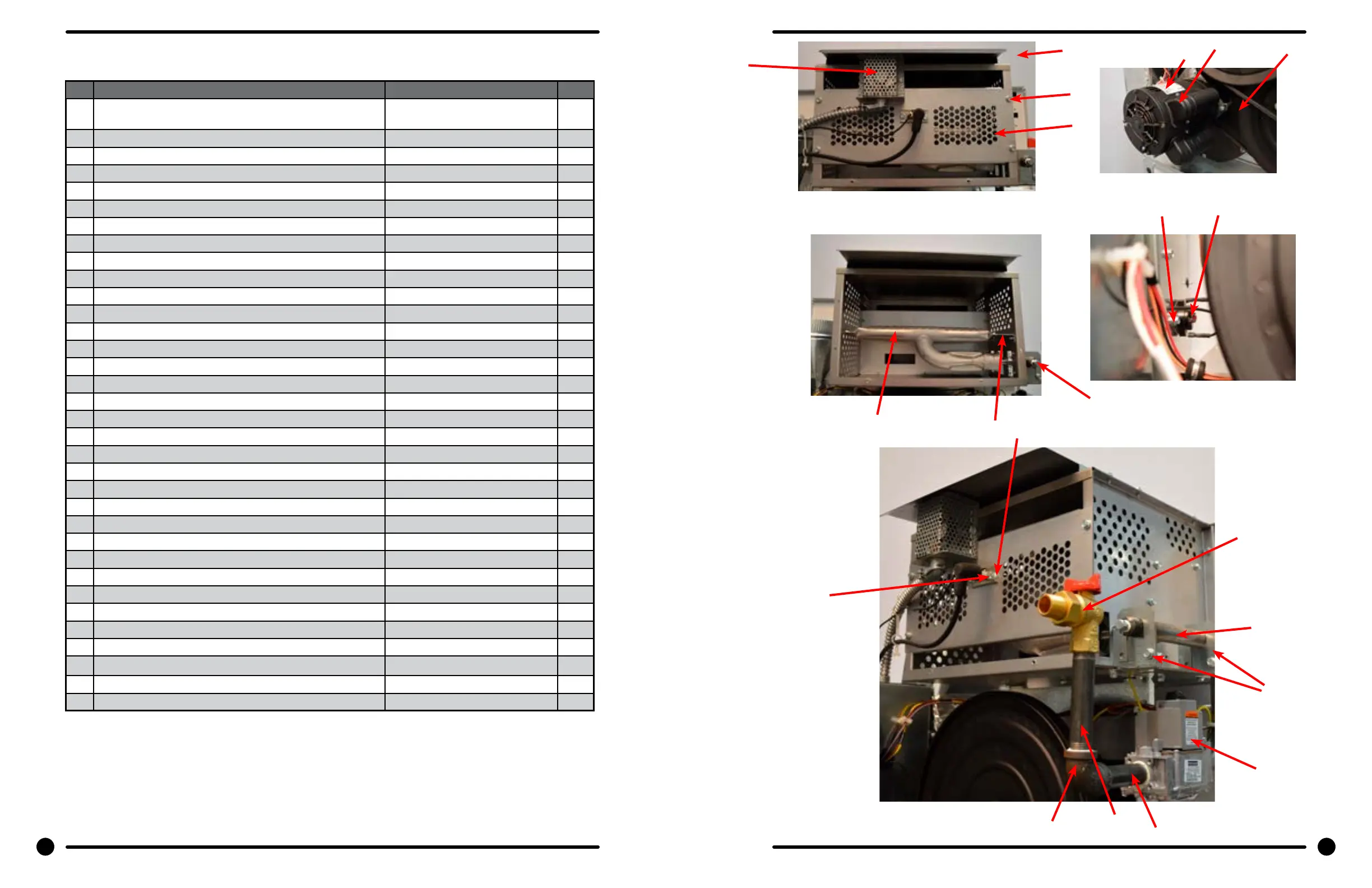

Dryer Burner Housing Group
Key Description T-20X2 QTY
* Housing Assembly, Burner (All sheet metal parts not
listed)
9803-221-001 1
1 Panel, Back Burner Housing 9454-949-001 1
2 Screw, 10B X 1/4” 9545-008-001 4
3 Angle, Burner Support 9003-220-001 1
* Screw, 10AB x 3/8” 9545-008-024 2
4 Burner, Main 9048-023-001 2
* Screw 10AB x 3/8” 9545-008-006 2
5 Electrode-ignition 9875-002-003 1
6 Screw, Electrode Mtg 8B x 1/4” 9545-045-001 2
7 Valve, Gas Shut O (Optional) 9379-196-001 1
8 Pipe Assembly 9838-018-004 1
* Gas Pipe Assembly Replacement Kit 9732-360-001 1
8 Gas Pipe Assembly (After Serial) 9838-023-001 1
* Fitting - 1/2 NPT Union Adapter 8615-120-001 1
11 Control Assy, Gas (Honeywell) 9857-134-001 1
11 Control Assy, Gas (White Rodgers) 9857-192- 001 1
* Wireasy-yel,47/8” 8220-001-466 1
12 Manifold, Assy 9381-012-001 1
* Orice, Burner-Natural #40 9425-069-030 2
* Orice, Burner-LP #54 9425-069-031 2
13 Bracket, Manifold 9029-306-001 2
14 Pipe Plug in end of Burner Manifold 9456-054-001 1
* Screw, 10AB x 3/8” 9545-008-006 2
15 Bracket, High Limit Thermostat 9029-192- 001 1
16 Thermostat, Hi-Limit 9576-203-002 1
* Spacer, Hi-Limit 9538-142-001 2
* Screw 8B x 3/4” 9545-045-007 2
17 Cover, Hi-Limit Stat 9074-329-001 1
* Screw, 10AB x 3/8” 9545-008-006 2
18 Thermostat, Safety Shuto 9576-207-006 1
19 Screw, 10AB x 3/8” 9545-008-006 2
* Control, Ignition Fenwall (3 trybox) 9857-251-001 1
* Kit, LP Conversion (Honeywell) 9732-102-038 1
* Kit, LP Conversion (White Rodgers) 9732-102-043 1
1
2
3
4
6
7
9
10
11
12
15
16
18
8
19
13
14
5
17
1
23
76 77
