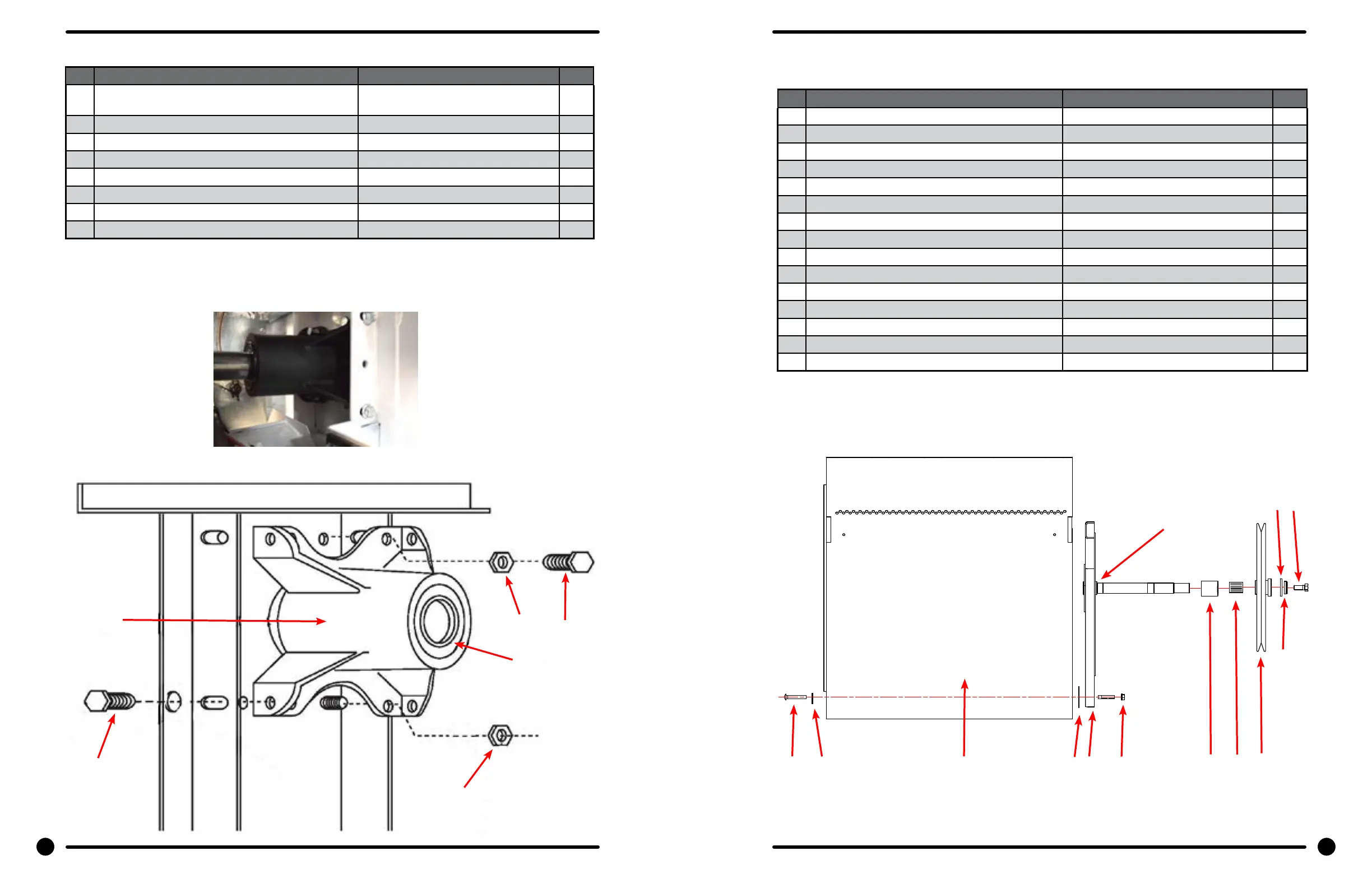

Dexter Laundry DN20X2 - Bearing Housing Group Parts; Tumbler Group Parts

Bearing Housing Group
3
1
2
5
6
4
Key Description T-20X2 QTY
Bearing Housing Complete Assy (Includes bearings
& Spacer)
9803-160-003 1
1 Housing, Bearing 9241-161-002 1
* Spacer, Bearing 9538-139-002 1
2 Bearing, Ball, Front & Rear 9036-130-001 2
3 Screw-Wizlock, 3/8-24x3/4 9545-049-002 4
4 Nut, 5/16-18 8640-400-002 4
5 Screw, 3/8-24x1 9545-049-001 2
6 Nut, 3/8-24 8640-415-002 2
9
412
10
11
12
8
5
6
5
7
3
Tumbler Group
Key Description T-20X2 QTY
* Tumbler Assy Complete W/Spider (GALV) 98 48-156-0 01 1
1 Tumbler Assy (Galvinized) 9848-155-0 01 1
2 Rod, Tumbler 9497-019-004 3
3 Washer, Special 8641-554-001 3
4 Shim 9552-013-003 AR
5 Spider Assy 9568-018-001 1
6 Nut, Wiz Lock 8640-415-004 3
7 Spacer-Shaft 9538-164-001 1
8 Tolerance Ring 9487-234-005 1
9 Pulley, Driven 9908-052-002 1
10 Washer -Flat 1/2 8641-581-026 1
11 LockWasher - IntTooth, 1/2 8641-582-016 1
12 Screw, 1/2-13x1 1/4 9545-017-009 1
* Belt, Drive 9040-073-013 1
* Belt,Driven (Motor) 9040-076-012 1
74 75
Part # 8533-108-001 10/22 Part # 8533-108-001 10/22
