Auto Power-on Select

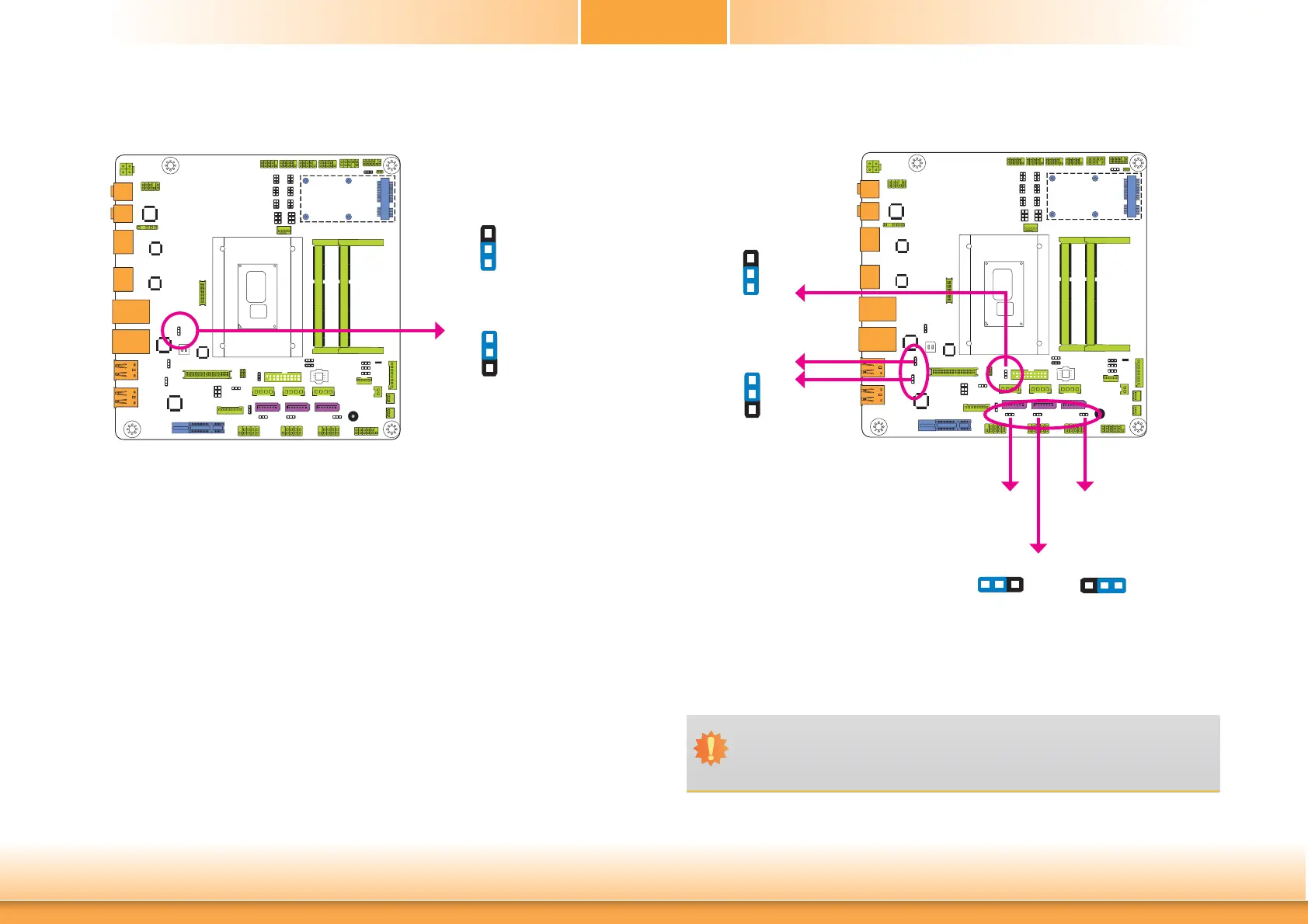

JP25 is used to select the method of powering on the system. If you want the system to
power-on whenever AC power comes in, set JP25 pins 2 and 3 to On. If you want to use the
power button, set pins 1 and 2 to On.
When using the JP25 “Power On” feature to power the system back on after a power failure
occurs, the system may not power on if the power lost is resumed within 5 seconds (power
flicker).
JP11, JP14, JP15, JP27, JP28 and JP29 are used to select the power of the USB ports. Select-
ing +5V_standby will allow you to use a USB device to wake up the system.
USB Power Select
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
1-2 On:
Power-on via power button
(default)
2-3 On:
Power-on via AC power
132
132
2-3 On:
+5V_standby
1-2 On: +5V
(default)
JP25
1
3
2
1
3
2
USB 4-5
(JP11)
USB 7-8
(JP29)
USB 0-1
(JP15)
USB 11-12
(JP28)
1-2 On: +5V
(default)
2-3 On:
+5V_standby
1
3
2
1
3
2
USB 2-3
(JP14)
USB 9-10
(JP27)
