DFI HU101 - Panel Power Select; LVDS Channel and Bpp Select

16
Chapter 2 Hardware Installation
Chapter 2
ON
ON
1 On: Single LVDS
1 Off: Dual LVDS
2 On: VESA (24bpp)
2 Off: JEIDA or VESA
(18bpp)

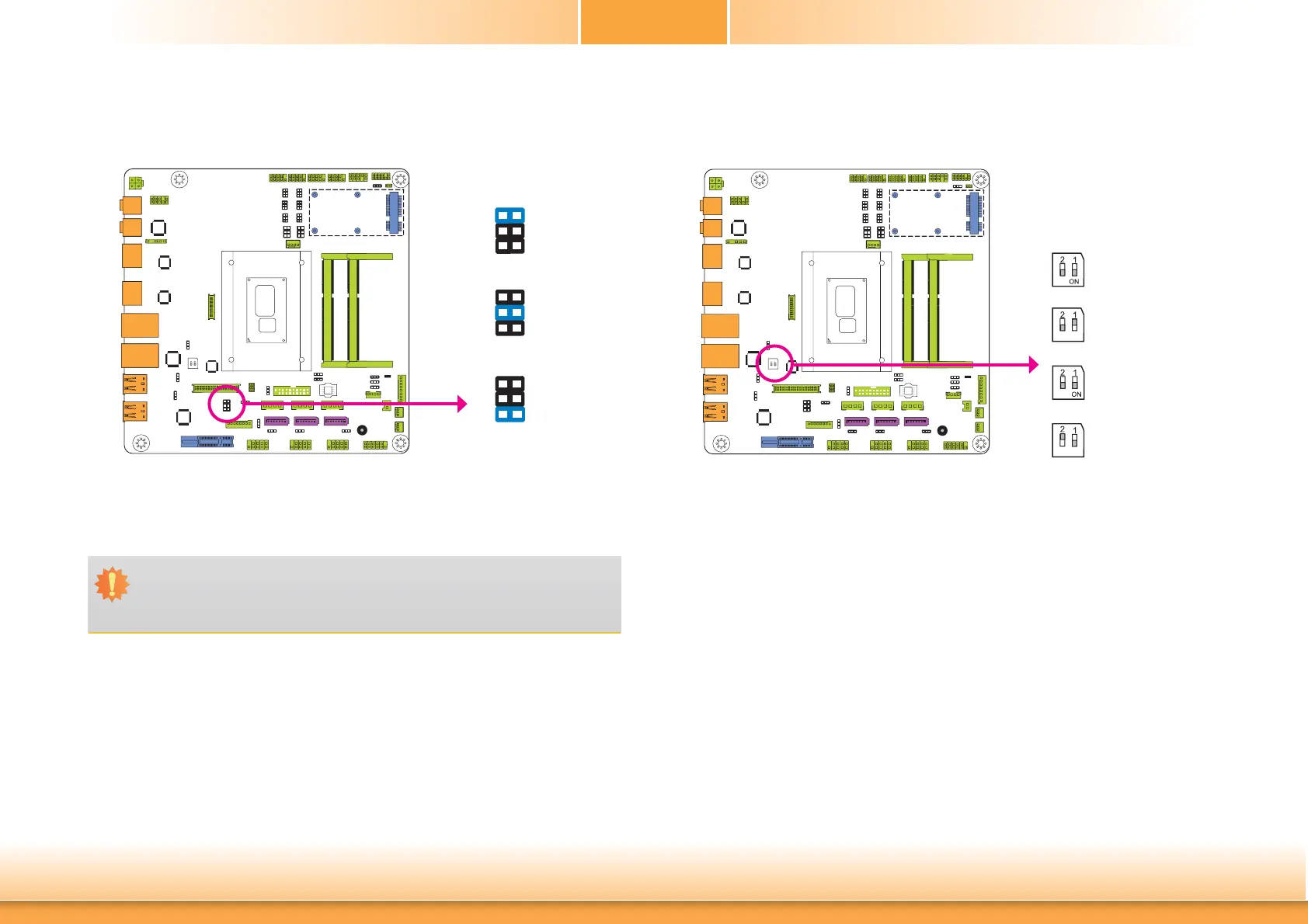

Switch 1 allows you to select the LVDS channel and the color of bits per pixel.
LVDS Channel and bpp Select
SW1
Panel Power Select
1-2 On: +12V
3-4 On:+5V
5-6 On: +3.3V
(default)
JP18 is used to select the power supplied with the LVDS LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP18 match
the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the
LCD panel.
6
4
2
5
3
1
JP18
6
4
2
5
3
1
6
4
2
5
3
1
